Connecting the Therapy or Pads/CPR cables 3 Setting Up
41
Connecting the Therapy or Pads/CPR cables
To connect the Therapy or Pads/CPR cable:
1 Align the white pointer on the cable with the white arrow on the green Therapy port as shown in
Figure 24.
2 Insert the cable into the green Therapy port. Push until you hear it click into place.

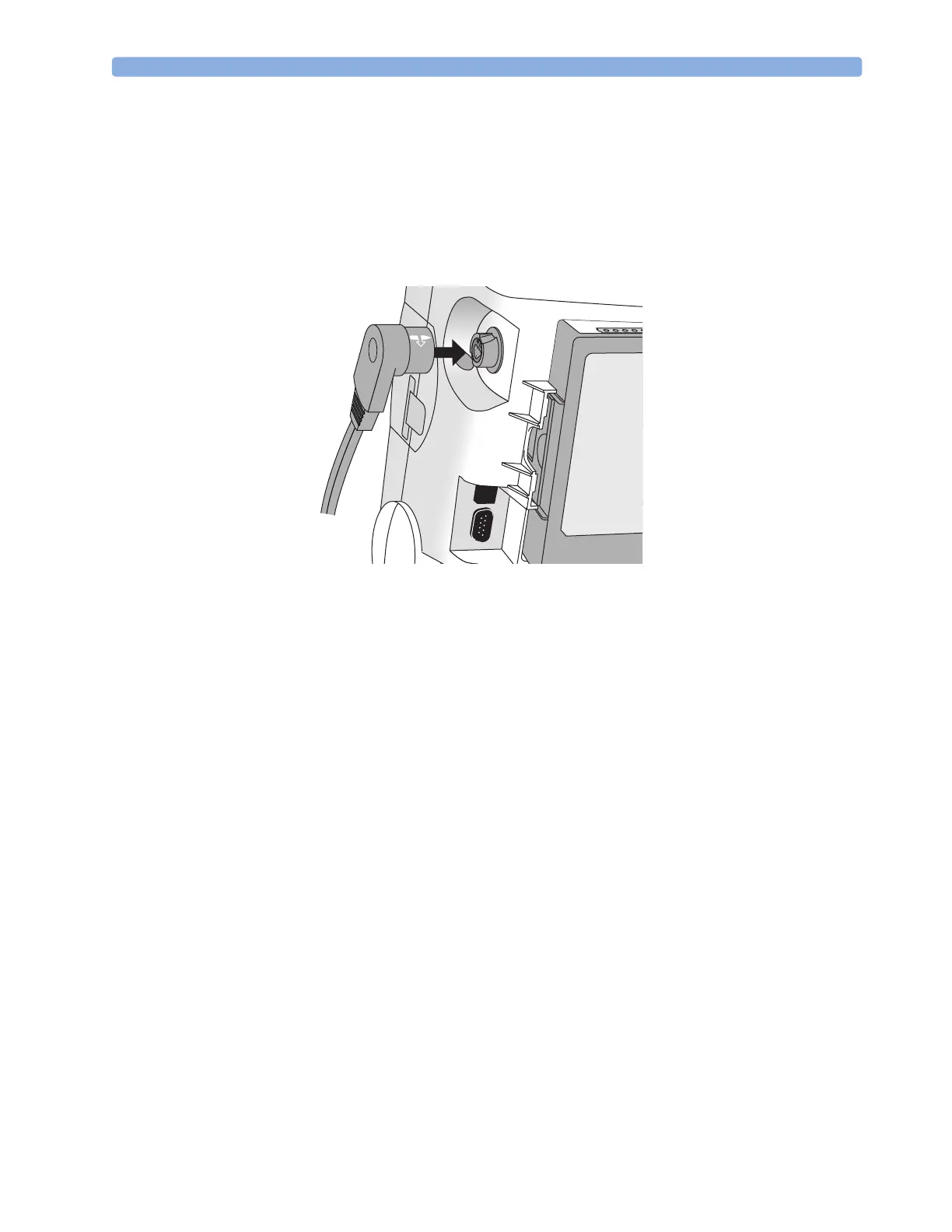

Figure 24 Connecting the Therapy or Pads/CPR Cable
