FL SWITCH 2000
16
PHOENIX CONTACT 107065_en_01
2.2.5 Using the SD card
The switch is provided with a Phoenix Contact SD card, thereby enabling quick configura-
tion. The slot for the SD card is located on the back of the device.

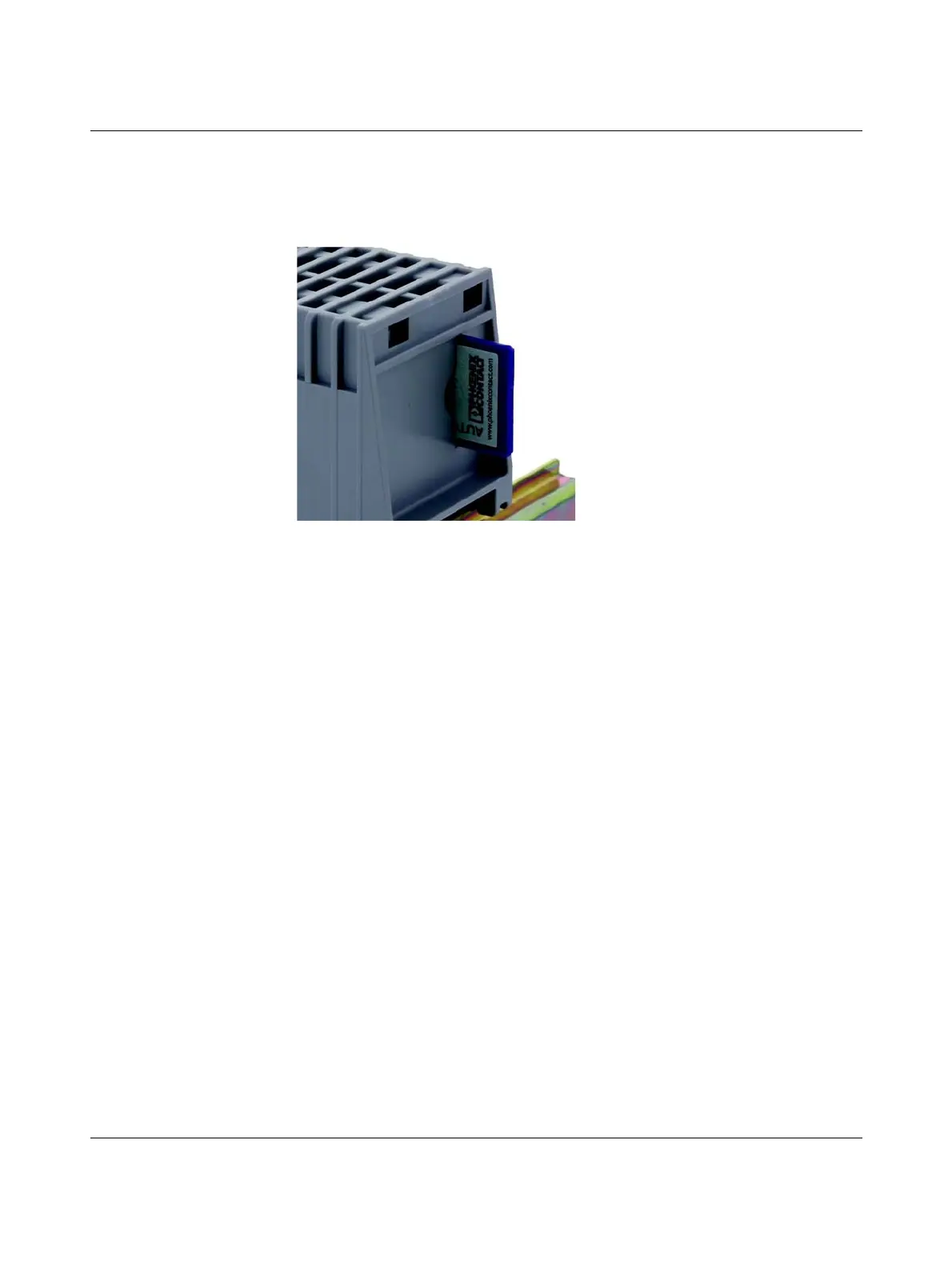

Figure 2-8 Position of the SD card slot
Automatically reading the configuration on the SD card
To automatically read the configuration on the SD card, make sure that the card is inserted
when the switch is started. As soon as the boot process has been completed (indicated by
the LEDs on the port going out), the configuration is applied in the internal switch memory
and is active during operation. The SD card can then be removed. The configuration also
remains active when the switch is restarted, provided an SD card is not inserted in the de-
vice.
