10 Virtual Local Area Network (VLAN)
10.0.0.1 VLAN Configuration

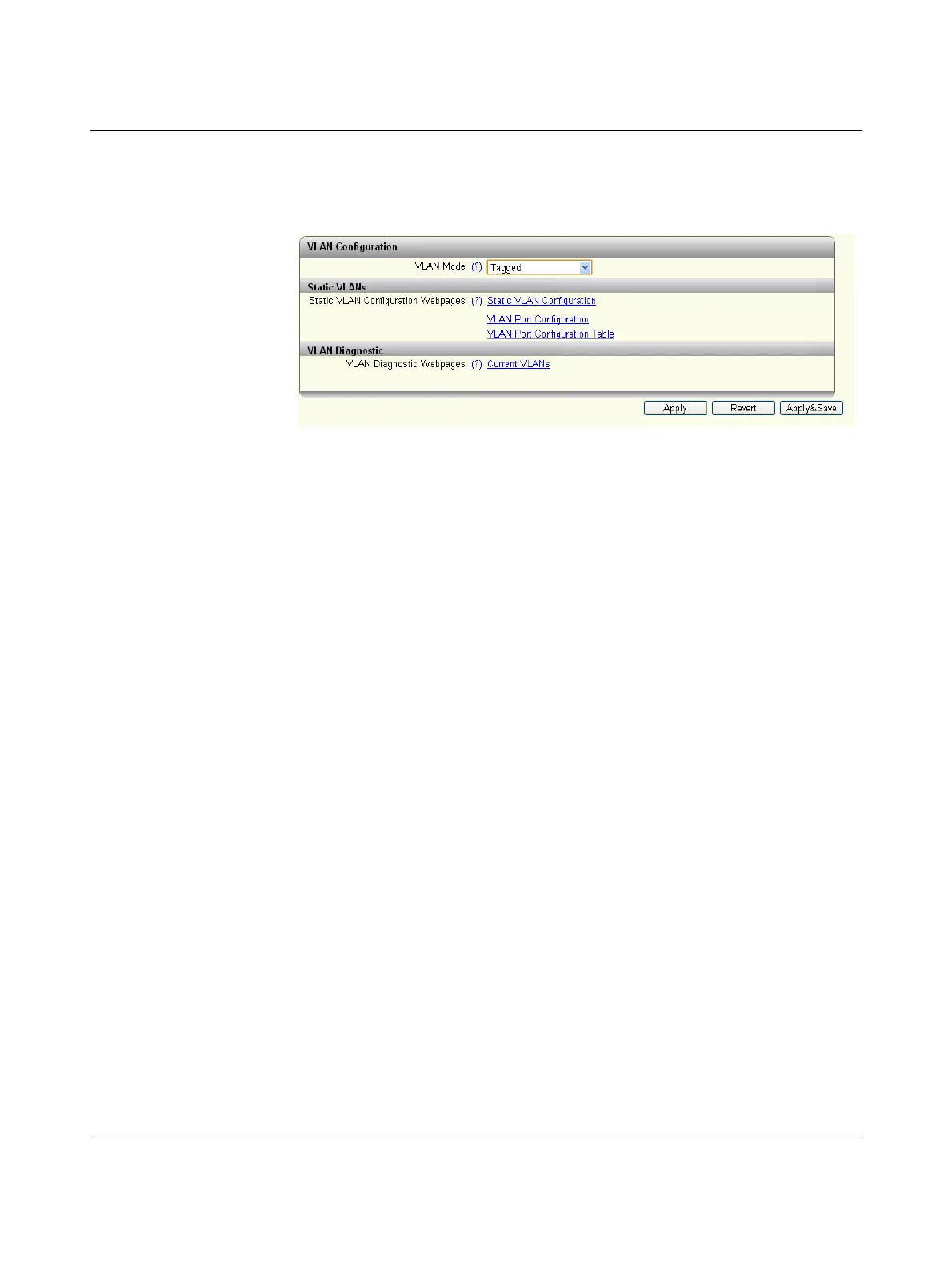

Figure 10-1 “VLAN Configuration” web page
VLAN Mode:
– Transparent: in “Transparent” mode, the switch processes the incoming data packets
as described in the “Frame switching” section. Neither the structure nor the contents of
the data packets are changed. The information about VLAN assignment from a tag that
may be contained in the data packet is ignored.
– Tagged: in “Tagged” mode, the switch forwards the data packets depending on the
VLAN assignment.
Clicking on the “Static VLAN Configuration” button takes you to the “Static VLAN Configu-
ration” page. Up to 8 (2000/2100 version) or up to 32 (2200/2300 version) static VLANs can
be set up here.
