Configuration and diagnostics in web-based management
107065_en_01 PHOENIX CONTACT 51
– Pluggable Memory missing: an error message is generated if no memory card is pres-
ent.
5.2.2.12 Quality of Service
Broadcast Limiter
Broadcast: the broadcast limiter can be activated or deactivated here.
Broadcast Threshold: set the threshold value in frames per second for the broadcast limiter
here. The entered value is rounded down to the next valid value.
Multicast: the multicast limiter can be activated or deactivated here.
Multicast Threshold: set the threshold value in frames per second for the multicast limiter
here. The entered value is rounded down to the next valid value.
Unknown Unicast: the limiter for unknown unicasts can be activated or deactivated here.
Unicasts of a MAC address that has been learned by the switch are not affected.
Unicast Threshold: set the threshold value in frames per second for the limiter of unknown
unicasts here. The entered value is rounded down to the next valid value.
Flow Control
Port Configuration: clicking on the “Configure Flow Control per port” link opens the “Port
Configuration” web page, which contains the configuration options for flow control.
Port Configuration Table: clicking on the “Configure Flow control for multiple ports at once”
link opens the “Port Configuration Table” web page where flow control can be configured for
all ports.

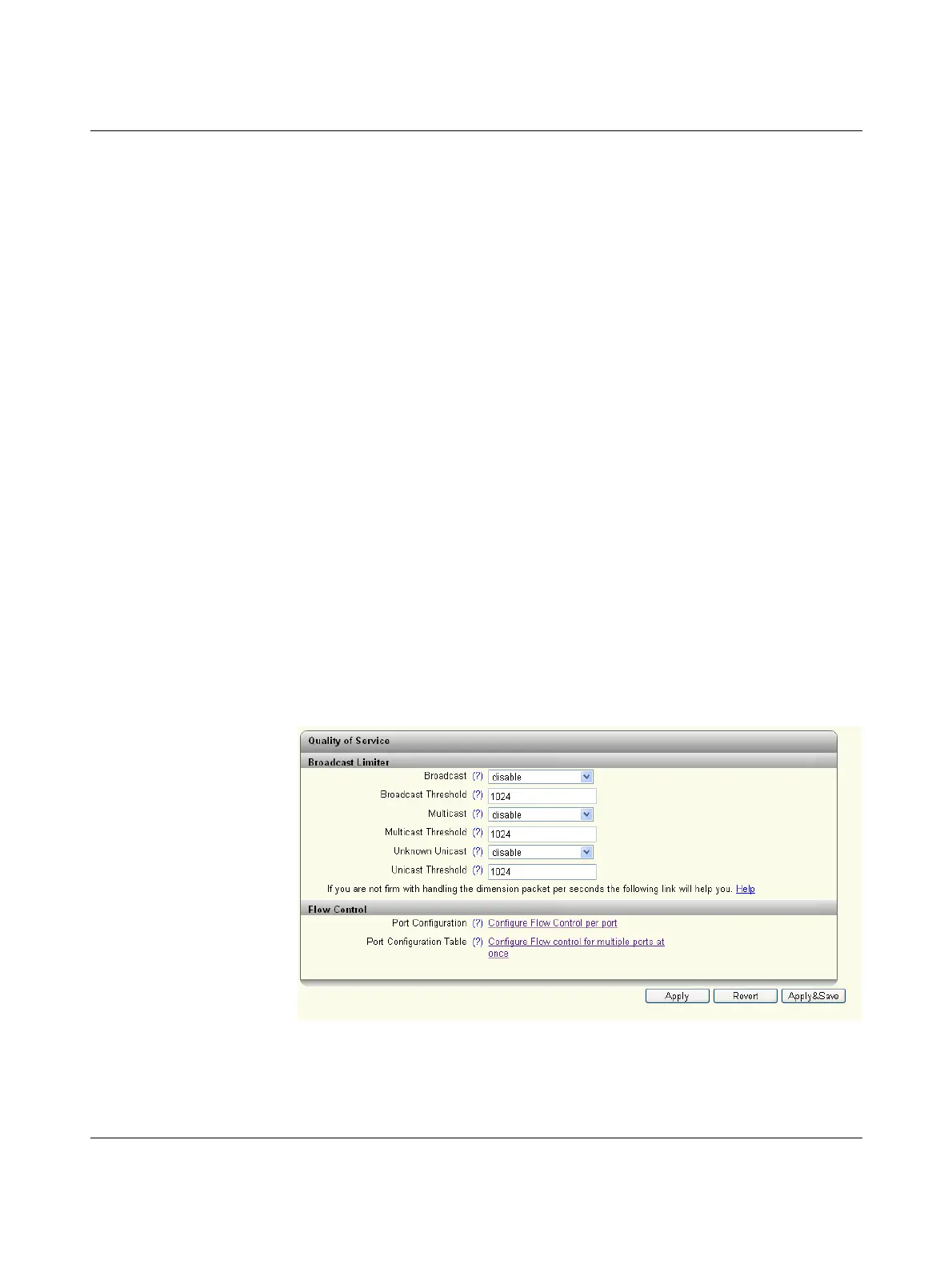

Figure 5-32 “Quality of Service” web page
