1.1.2 Elements of the devices

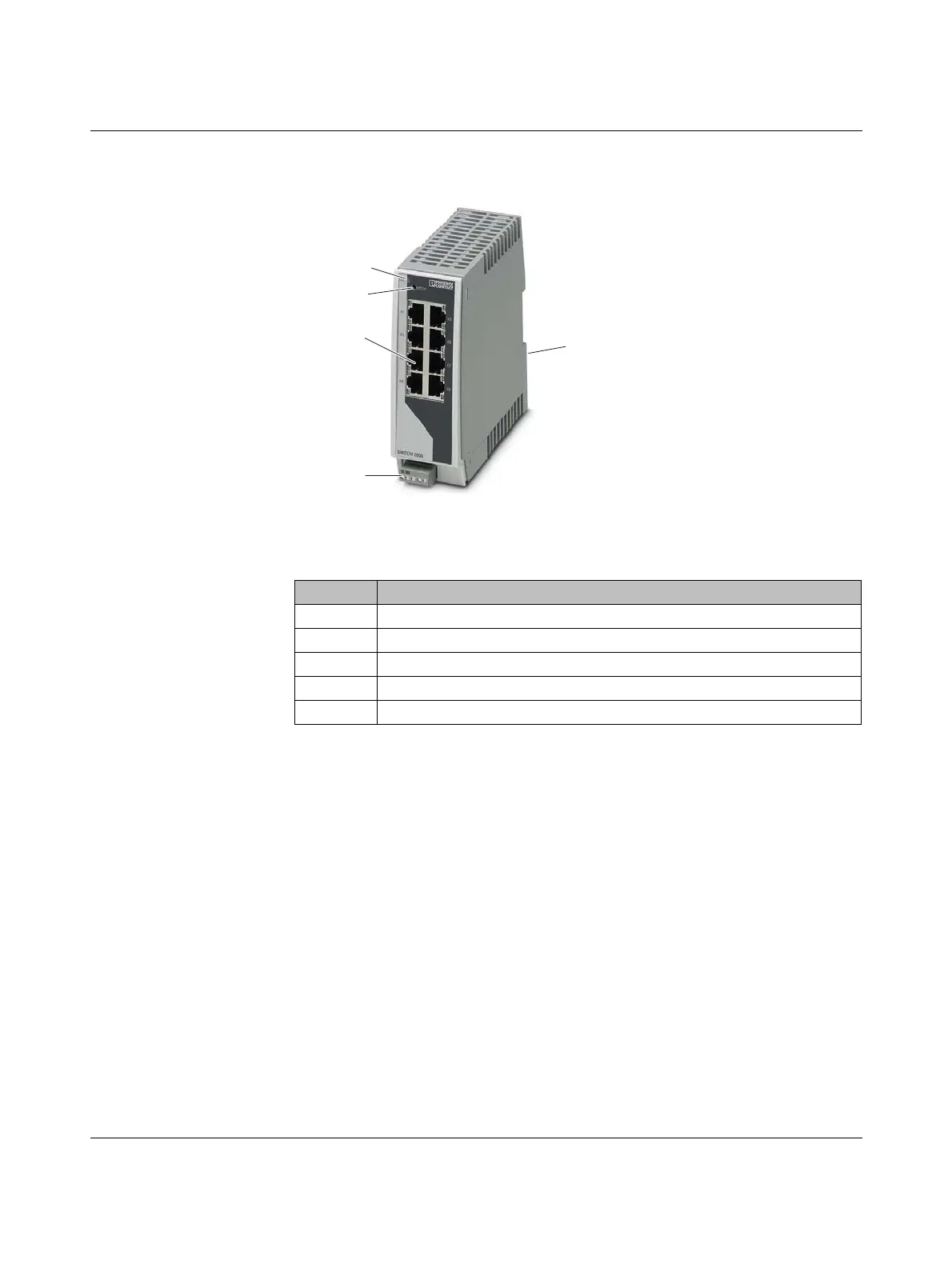

Figure 1-2 Elements of the devices
1.1.3 Description of the combo ports
Combo ports enable a high degree of flexibility when setting up networks. They consist of a
corresponding RJ45 port (e.g., X3.1) and a corresponding SFP port (e.g., X3.2). Only one
port of the pair can be used at a time. Each combo port can therefore be used as a copper
or fiberglass port. Inserting an SFP module disables the corresponding RJ45 port. If a
combo port is used as a fiberglass port, the Link LED of the corresponding RJ45 port lights
up orange when there is an active connection.
The following FL SWITCH 2000 versions have combo ports:
– FL SWITCH 2204-2TC-2SFX (2 Fast-Ethernet combo ports for 100 Mbps SFP mod-
ules, ports 3 and 7)
– FL SWITCH 2304-2GC-2SFP (2 Gigabit combo ports for 100 Mbps and 1000 Mbps
SFP modules, ports 3 and 7)
Table 1-1
Number Meaning
1 Connection for the supply voltage
2RJ45 ports
3Mode switch
4 Diagnostic and status indicators
5 Slot for optional SD card
