Phoenix Contact FL SWITCH 2005 - Figure 5-24 Multicast Filtering Web Page; Figure 5-25 Spanning-Tree Configuration Configuration Area

FL SWITCH 2000
44
PHOENIX CONTACT 107065_en_01
5.2.2.7 Multicast Filtering

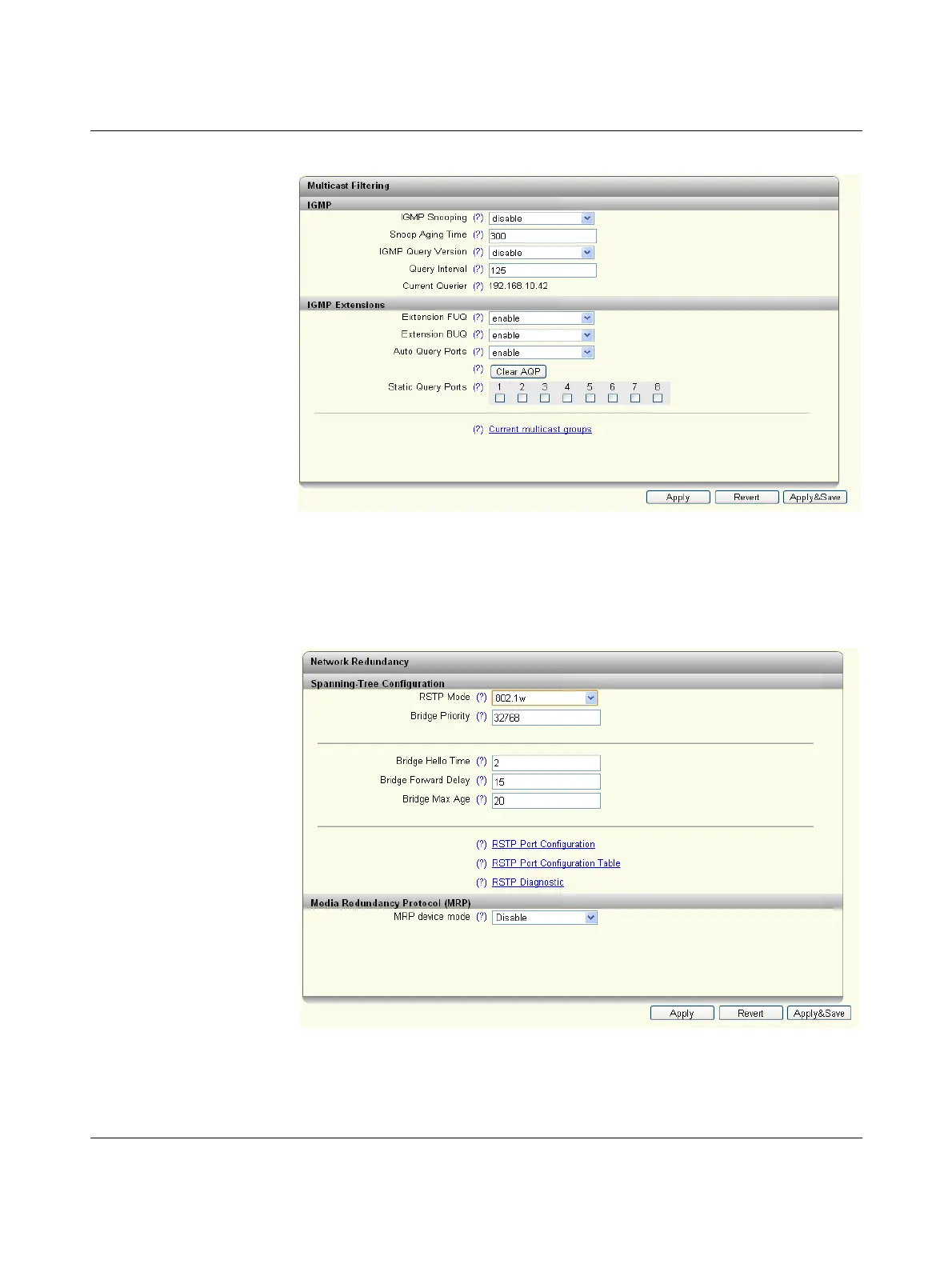

Figure 5-24 “Multicast Filtering” web page
For additional information on “Multicast”, refer to “Multicast filtering” on page 69.
5.2.2.8 Network Redundancy
Spanning-Tree Configuration
Figure 5-25 “Spanning-Tree Configuration” configuration area
RSTP Mode:
