Physio Control LIFEPAK CR2 - Battery Maintenance

Title Service Manual, LPCR2 Page
83 of
104
Doc
Type
Service Product Drawing
Doc
ID
3323299
Doc
Rev
B
Doc
State
Released State Date 11/14/2017
7000545 Revision A
Monthly
SWITCHES test
- LID switch test
- ON/OFF switch test
- SHOCK switch test
- LANGUAGE switch test
- PEDIATRIC switch test
X
X
Monthly
WI-FI HARDWARE test
- Interface Communication test
X
X
Monthly
WI-FI COMMUNICATION test
- Wi-Fi scan test
- Access Point test
X
X
Monthly
CELLULAR HARDWARE test
- Interface Communication test
X
X
Monthly
CELLULAR COMMUNICATION
test
- Signal Strength test
X
X
Monthly
POWER SUPPLIES test
- ANALOG (5 v) VOLTAGE test
- GATE DRIVE (19 v) VOLTAGE
test
- VDDIO (3.3 v) VOLTAGE test
- VDDA (1.8 v) VOLTAGE test
- VDDD (1.2 v) VOLTAGE test
- SYS (3.3 v) VOLTAGE test
X
X
Monthly
LED test
- Shock test
- Ped test
X
X

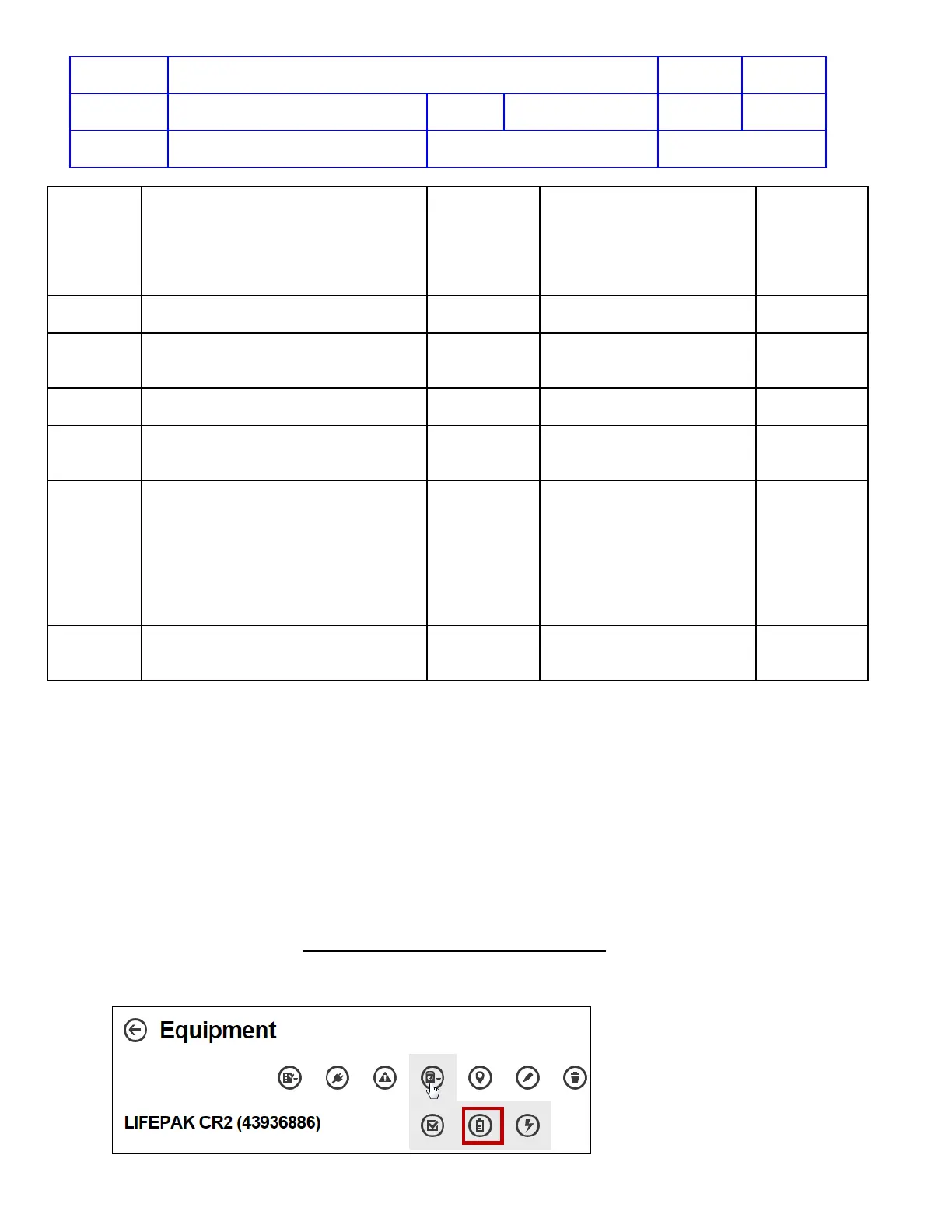

Battery Maintenance
Overview: There is no battery status indicator on the LIFEPAK CR2 device. The battery status is monitored through a
combination of self-tests, automatic email notifications to the owner with battery status for connected devices, and
voice prompt diagnostics. The Operating Instructions provide customers with information about battery maintenance
and troubleshooting tips.
NOTE:
• There is not coin cell battery on CR2. Each battery maintains a real-time clock in UTC-0 time. All real time
events on CR2 will be converted in local time from LIFENET System in webpages, log file, event file, and
reports based on CR2 location.
• Battery Specifications: See LIFEPAK CR2 Defibrillator Specifications
• Battery Status: For devices that are connected to LIFELINK, the battery status can be viewed on the LIFELINK
website in the Equipment view with ASR role.
