Pioneer MEP-7000 Service Manual

168
MEP-7000
1
2 3 4
A
B
C
D
E
F
1
2 3 4

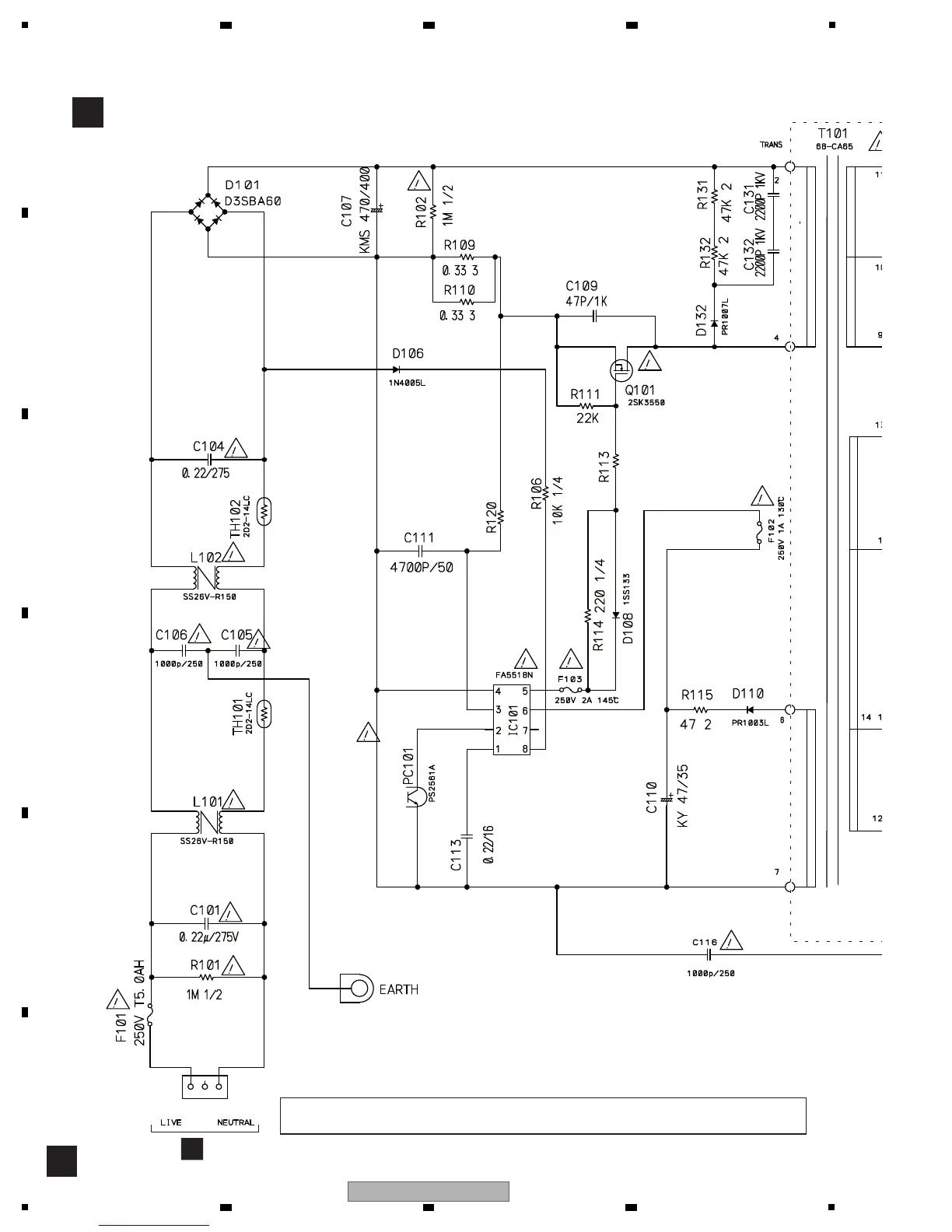

10.15 POWER SUPPLY UNIT
22 1/4 non-inflammable
100 1/4 non-inflammable
CN101
J
POWER SUPPLY UNIT
(DWR1440)
J
J1
K
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE WITH SAME TYPE AND RATINGS OF FUSE.
CAUTION -

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
