Pioneer MEP-7000 Service Manual

85
MEP-7000
5
6 7 8
5
6 7 8
A
B
C
D
E
F

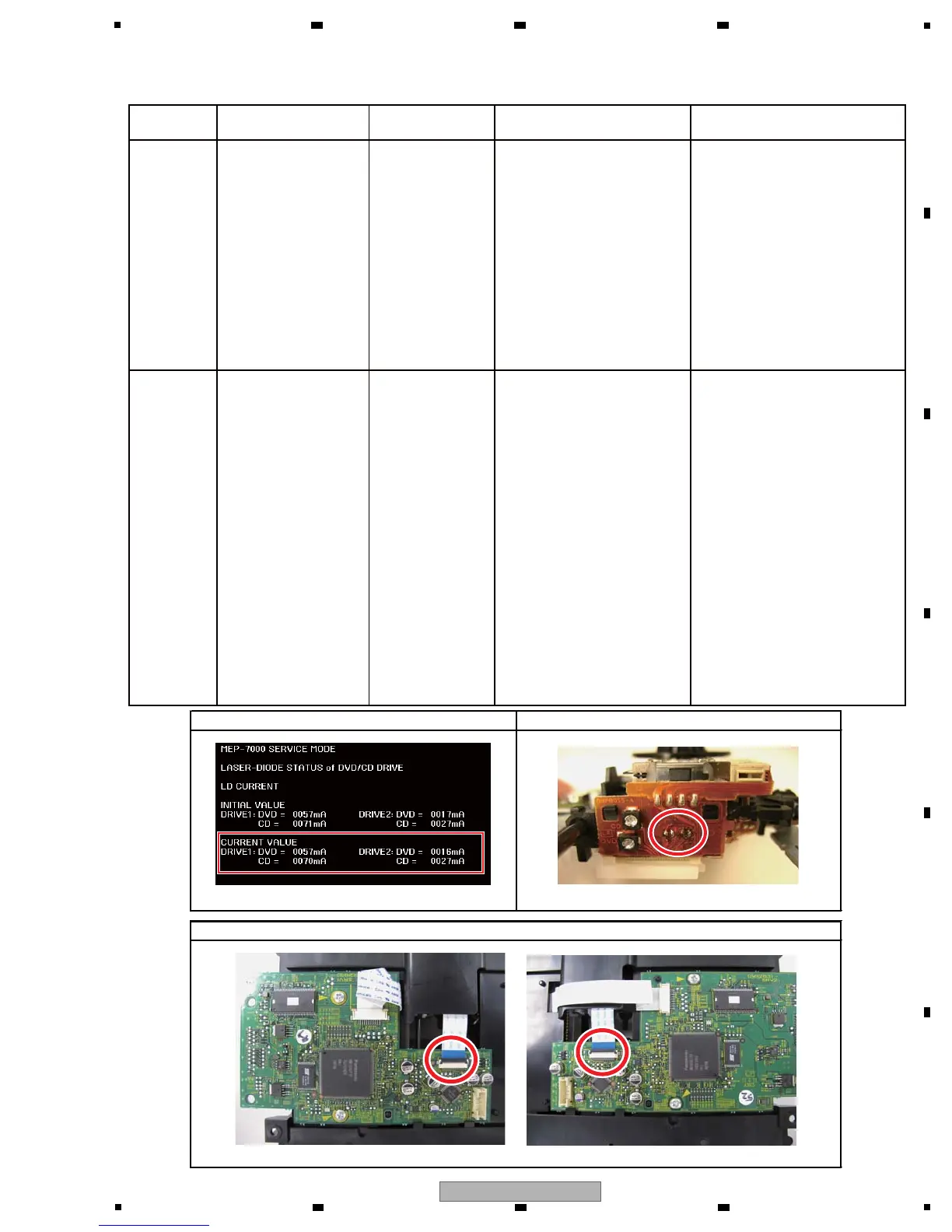

5.4 DEFECT JUDGMENT OF THE PICKUP ASSY
LD short-circuit pads
SRV1 ASSY
SRV2 ASSY
*1 *2
*3
The Pickup Assys for the DVD/CD drives are judged as OK if the results of the following 2 items are in the range of the
required specifications. If the pickup is judged as NG, replace the Traverse mechanism.
Item
Required
specifications
Status of the
unit when tested
Measurement method Criteria for judgment
LD current
Actuator
resistance
• Specifications of the
focus side :
3.4±0.5[Ω]
• Specifications of the
tracking side :
4.1±0.6[Ω]
• DVD : TYP50[mA]
MAX73[mA]
• CD : TYP70[mA]
MAX80[mA]
Connect the
control and drive
units.
Disassemble the
unit and pick out
the DVD/CD
drives.
If the value exceeds the
maximum value, the LD is
degraded.
Check the “CURRENT
VALUE,”*1 as indicated in
“[4] LD STATUS” of “6.2
SERVICE MODE FOR THE
DRIVE UNIT.”
Note 1: If the short-circuit
pad of the LD is short-
circuited, open it.*2
Note 2: Check the mounting
status of the following
resistors:
• SRV 1
R104~R107,R108~R111
• SRV 2
R904~R907,R908~R911
If the measurement values are
outside the range of the
specifications, the pickup is
judged as NG.
Before disconnecting the
FFC cable from the SRV
Assy, short-circuit the two LD
short-circuit pads (for CD
and DVD) to prevent excess
LD current to flow. Then
measure the actuator
resistance. After measure-
ment, be sure to open the LD
short-circuit pads.*2
• Focus side: Disconnect the
FFC cable from the
CN100/900,*3 then
measure the resistance
between Pins 1 and 2 of the
FFC.
• Tracking side: Disconnect
the FFC cable from the
CN100/900,*3 then
measure the resistance
between Pins 3 and 4 of the
FFC.

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
