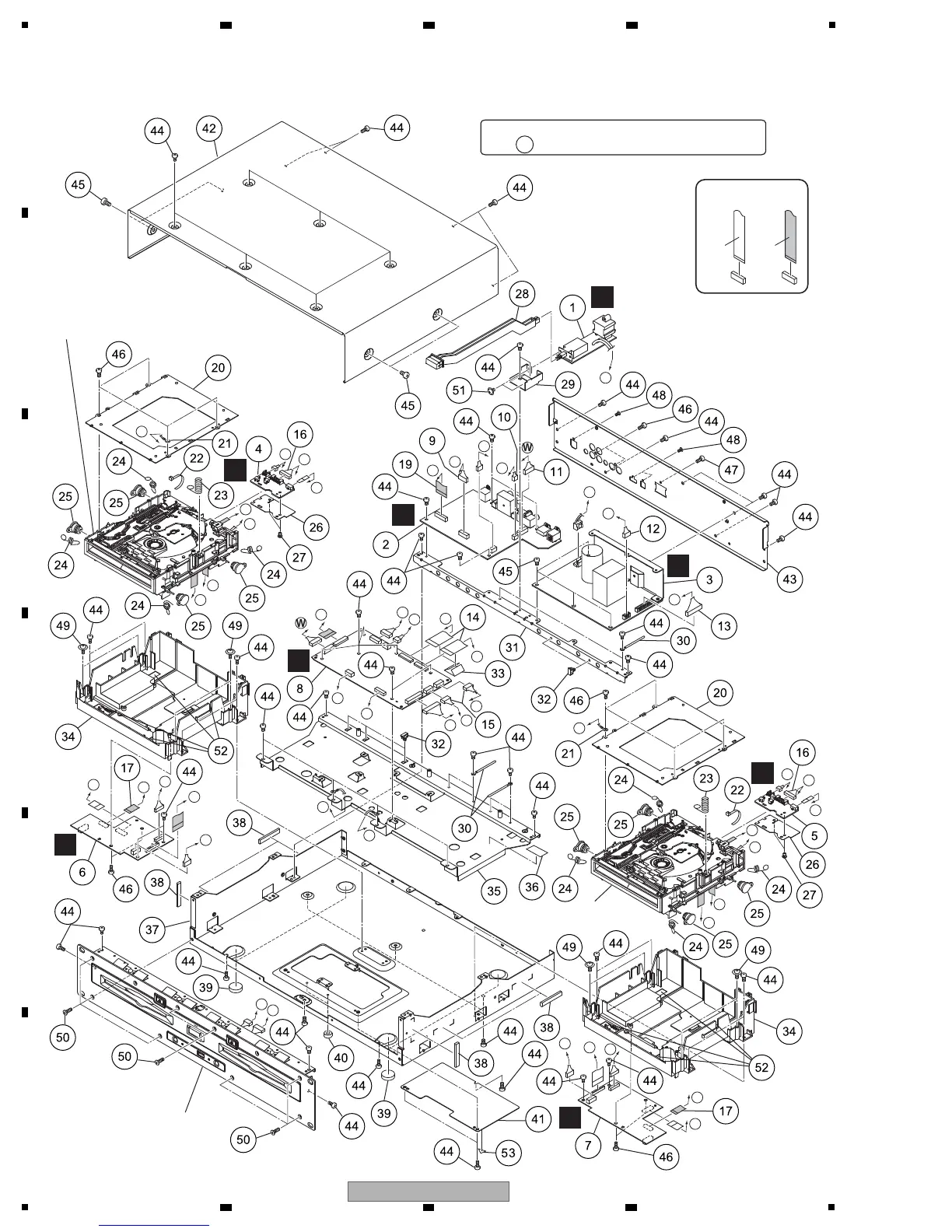

9.2 EXTERIOR SECTION
R
R
O
O
P
P
N
N
M
L
Q
A
A
E
W
W
V
V
U
U
X
X
S
Y
Y
D
C
S
L
E
M
F
T
T
F
G
G
J
J
K
K
B
B
H
H
I
I
D
C
Q
Refer to “9.4 SLOT-IN
MECHA SECTION”.
Refer to “9.4 SLOT-IN
MECHA SECTION”.
A
B
Refer to “9.3 FRONT
PANEL SECTION”.
F
A
D
K
J
I
H
E
CONTACT SIDE
NON-CONTACT
SIDE
Note: When reassembling the upper panel
42 , tighten Screws A first then Screws B.
