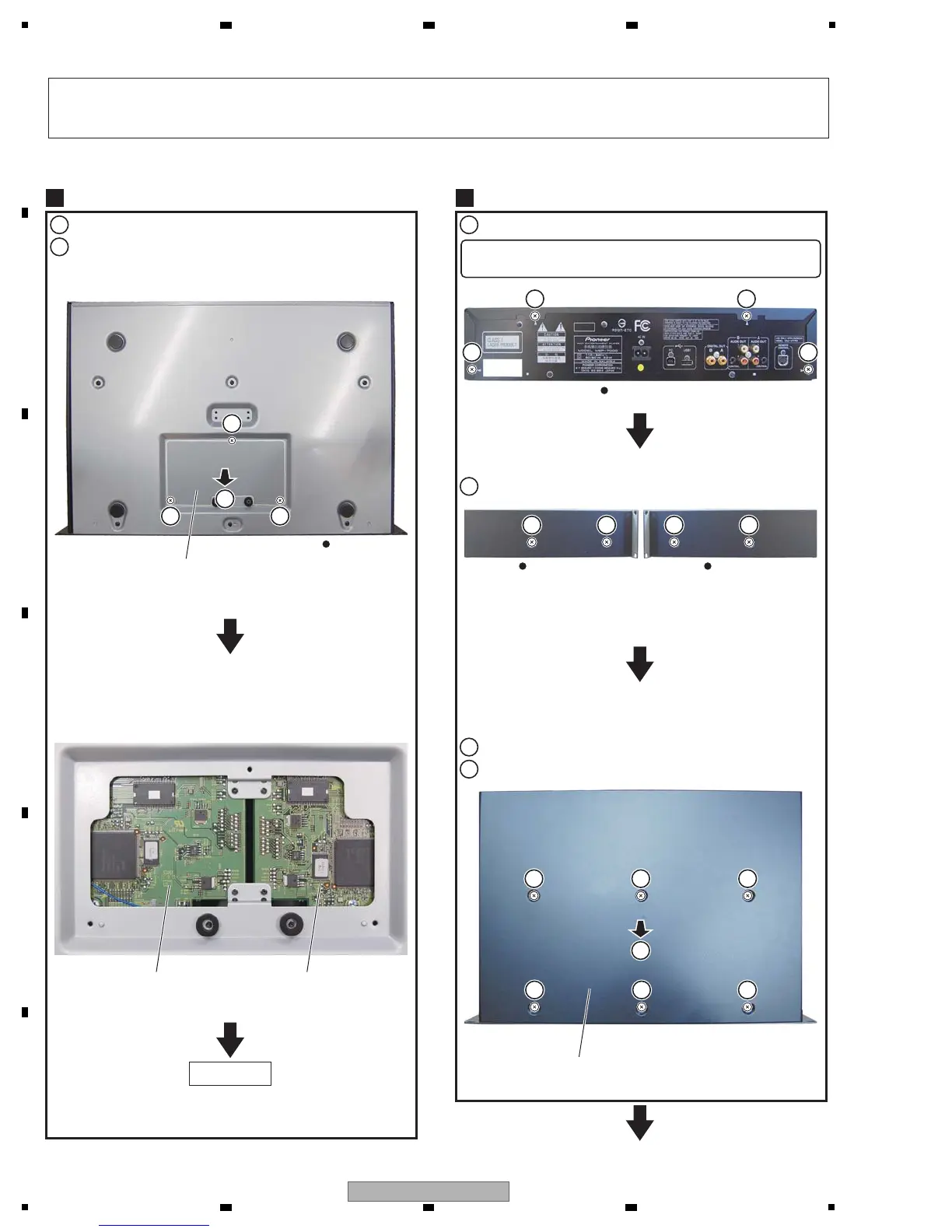

7. DISASSEMBLY
7.1 DRIVE UNIT
Note 1: Do NOT look directly into the pickup lens. The laser beam may cause eye injury.
Note 2: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.
Bottom view
Bottom plate
SRV2 Assy SRV1 Assy
Diagnosis
Remove the three screws.
1
Remove the bottom plate.
2
1
1 1
2
Rear view
Side L Side R
Bonnet
Bonnet
1
Remove the four screws.
1
Remove the four screws.
2
Remove the six screws.
3
Remove the bonnet.
4
11
1
2
3 3 3
333
2 2 2
1
4
Diagnosis
Note:
During reassembling, tighten Screw A first then Screw B.
AB
