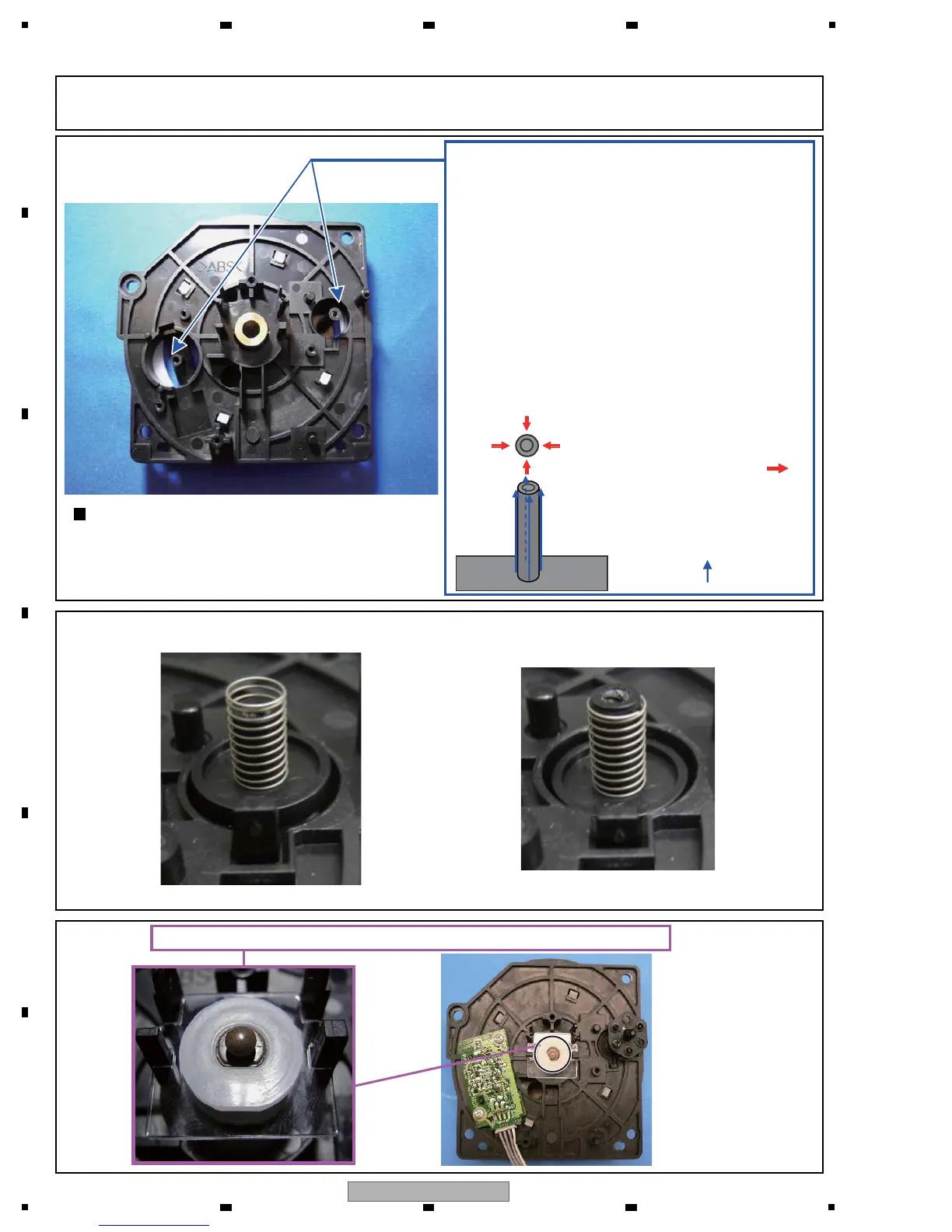

1.6 REASSEMBLING OF THE CONTROL UNIT
How to apply FL OIL is described below.
Make sure that the top end of the load spring is not higher than that of the shaft when it is inserted into the shaft. If it is,
turn the JOG dial a little so that the load gear and the gear of the JOG shaft will become properly engaged.
<Preparation>
Soak FL OIL into a sponge.
Dab a brush against the sponge to pick up oil.
Remove excess oil from the brush.
<Application of FL OIL>
1. Dab the brush against the sponge to pick up a little
oil with the brush.
2. With the brush, lightly apply oil from the base to the
tip of the shaft.
3. Apply oil from 4 directions, as shown below, at a time.
(NEVER replenish oil to the brush on the way.)
<Note>
1. NEVER apply oil more than 4 times to the shaft.
Avoid applying excess oil.
<TOP VIEW>
Apply oil from the 4 directions
indicated by the arrows ( ),
at a time.
<SIDE VIEW>
Apply oil from the base to the
tip of the shaft, as indicated by
the arrows ( ).
NGOK
Place the JOG smoother so that its convex surface faces the JOG smoother plate.
Note on gear insertion
When inserting the gear, do NOT forcibly push it.
Insert the gear while turning it slightly until it is properly
engaged.
After the JOG Assy is disassembled or JOG dial parts are replaced, be sure to measure the load on the JOG dial, as it may
have changed. (For details on how to measure the load on the JOG dial,
see “8.1 CONFIRMATION MODE AND ADJUSTMENT METHOD FOR LOAD ON THE JOG DIAL.”)

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
