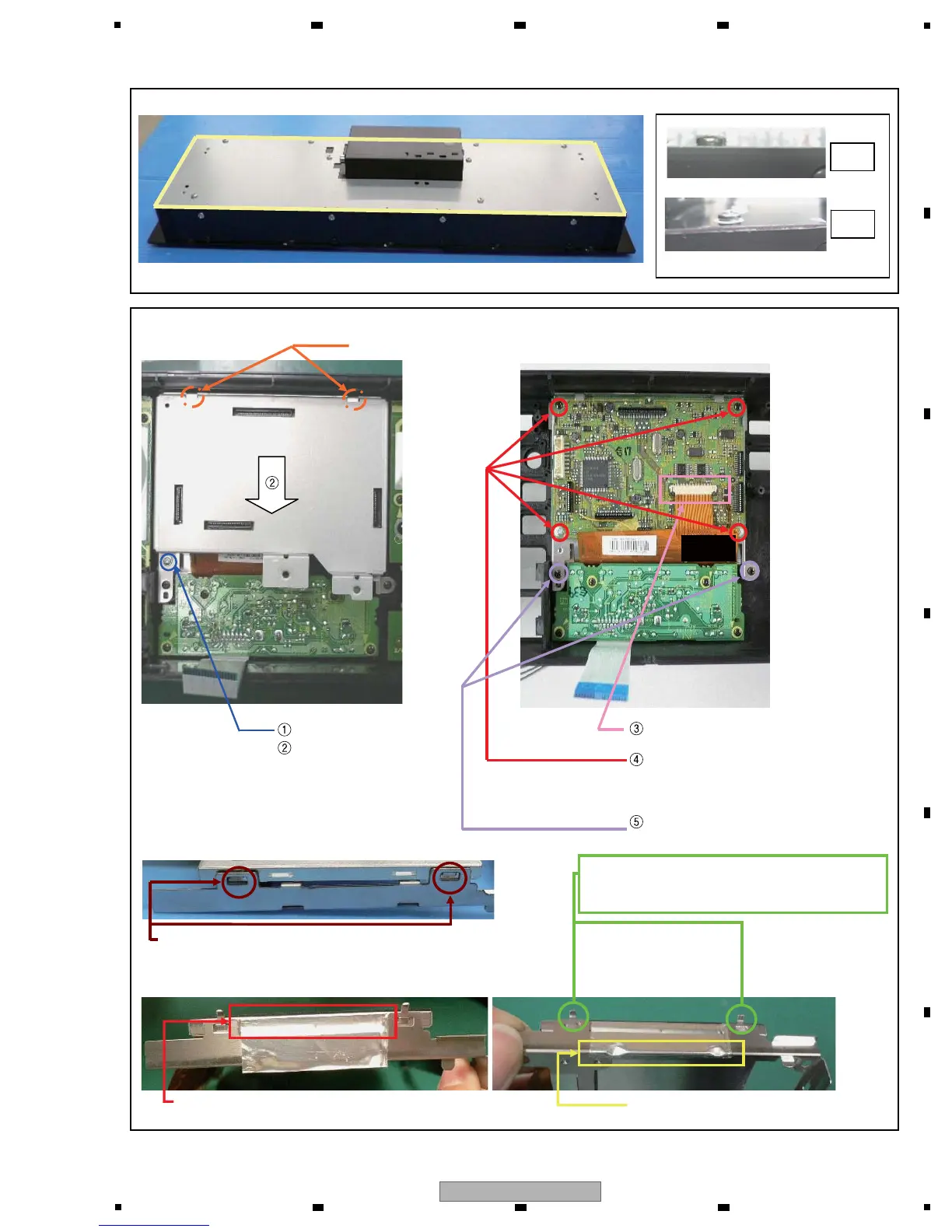

When reattaching the rear panel and panel base, be careful to properly position them.
The edge of the plate is disengaged.
NG
OK
Notes on replacement of the NMAIN Assy and LCD module
Remove the screw.
Remove the TFT shield.
Note: Engage the hooks to the slots when reassembling.
Remove the flexible cables.
Remove the screws. The NMAIN Assy
can be detached.
Remove the screws. The LCD module
can be detached.
Note: When reattaching the LCD module to the TFT holder,
engage the 4 hooks of the holder to the slots.
Note: Be careful that the aluminum sheet goes
above this level.
Fold the aluminum sheet.
Note: During detaching/reattaching
the LCD module, be careful not to apply excess
force to the 4 hooks of the TFT holder.
