Pioneer MEP-7000 Service Manual

142
MEP-7000
1
2 3 4
A
B
C
D
E
F
1
2 3 4

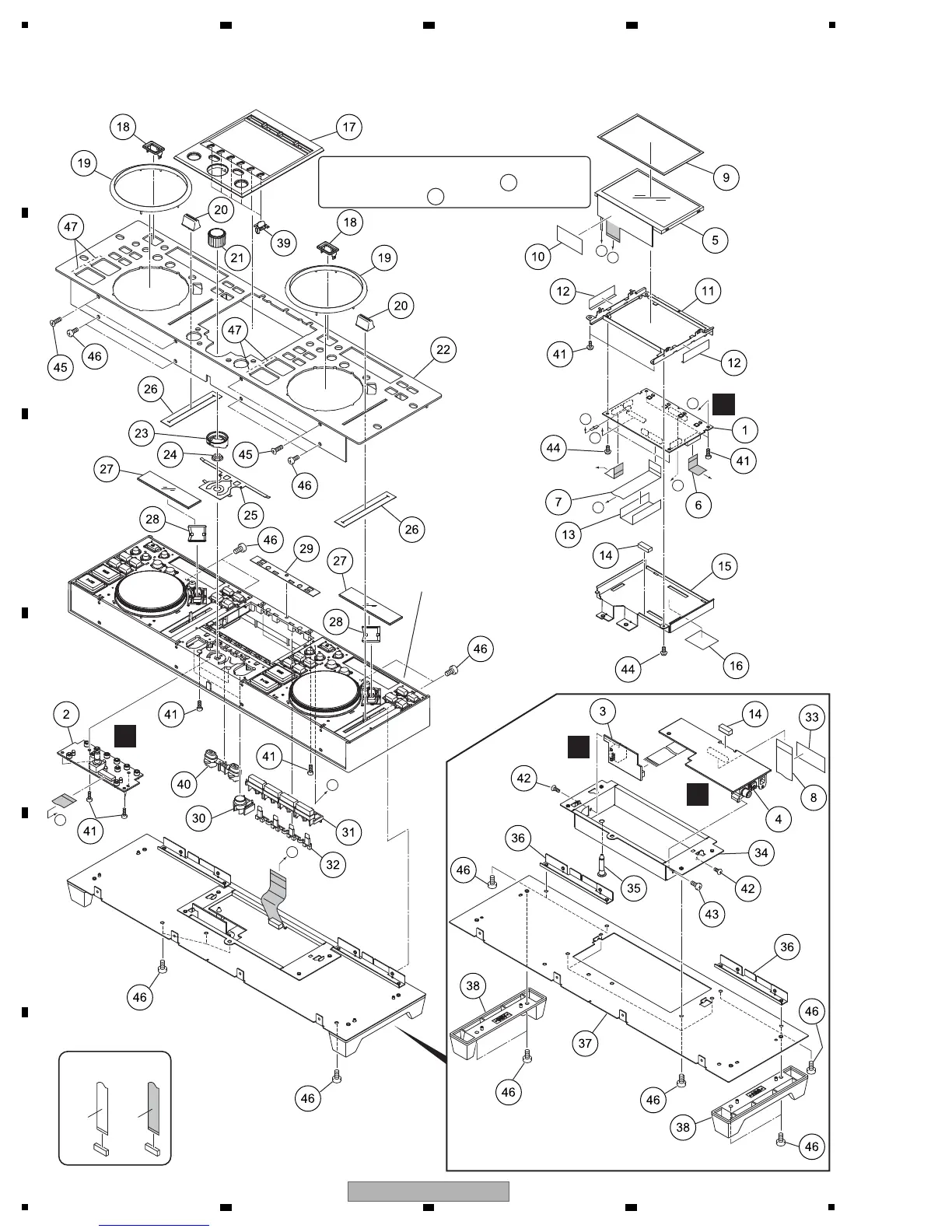

9.5 EXTERIOR SECTION
A
A
B
D
E
E
B
C
C
D
DISP
CN2601
DISP
CN2601
L
O
M
N
CONTACT SIDE
NON-CONTACT
SIDE
Refer to “9.6 CONTROL
PANEL SECTION”.
Note:
When replacing the LCD module 5 , also replace
the aluminum tape 12 , as it must not be reused.
