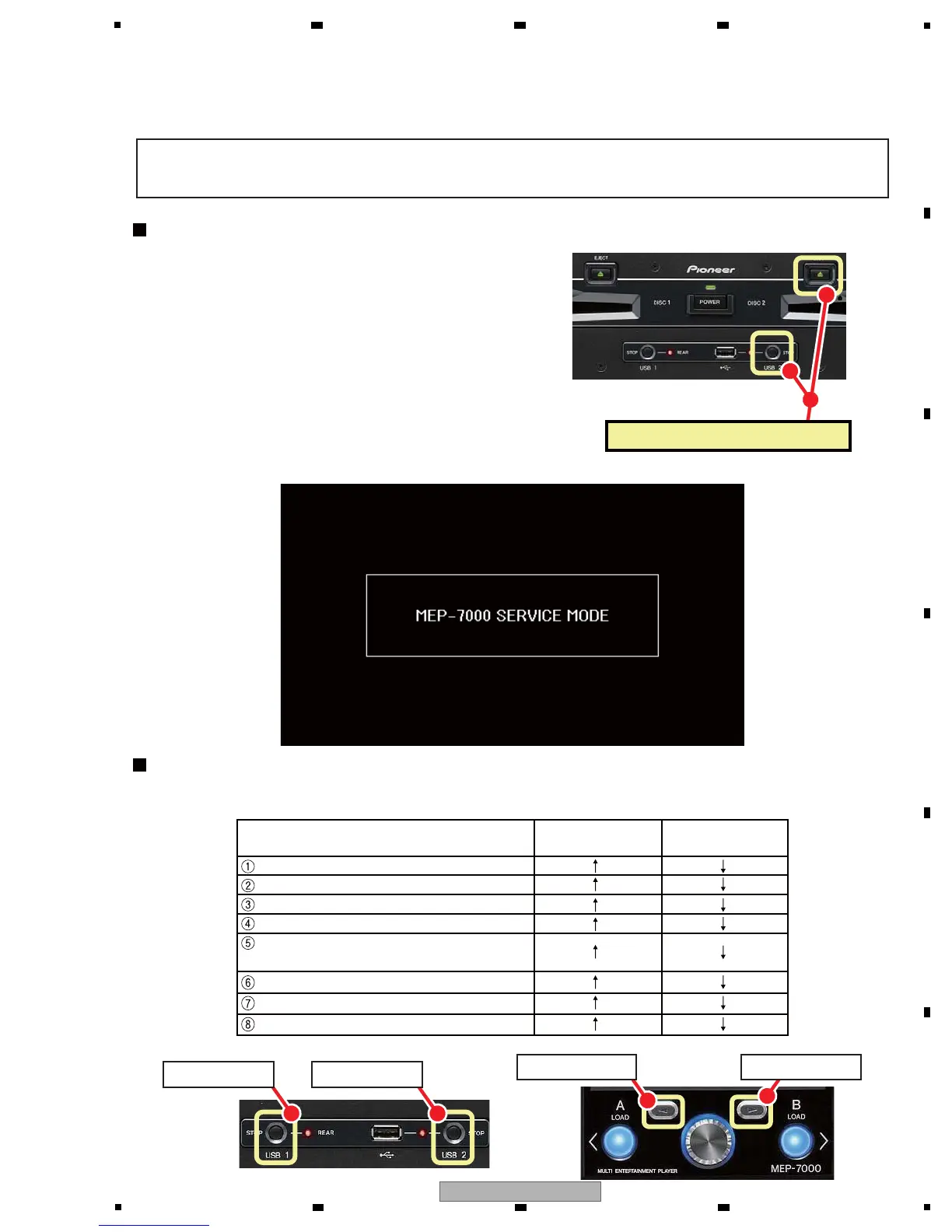

6.2 SERVICE MODE FOR THE DRIVE UNIT
This is a service mode that the drive unit mainly controls.
Memo: If an external monitor is connected via the MONITOR OUT connector, signals are forcibly output to the external
monitor regardless of the UTILITY setting.
This will ensure that this unit can be repaired when the center display is in failure.
Connect the control and drive units.
While holding the DISC 2 EJECT and USB 2 STOP keys of
the drive unit pressed, turn the unit on.
(Hold the keys pressed until the PRO DJ logo on the display
disappears.)
Initial display
How to Enter This Service Mode
How to Operate
From the initial display shown above, pages of this Service mode can be changed,
using the Select Down or USB STOP 2 key to move forward or Select Up or USB STOP 1 key to go back.
Error history
Select Up or
USB STOP 1 key
Select Down or
USB STOP 2 key
Version information
Auto device diagnosis
LD status (LD current)
LD status
(accumulated time of LD light emission)
DVD/CD drive diagnosis
RESET OF DVD/CD DRIVE DATA
Hold these keys pressed simultaneously.
MANUAL INPUT OF DVD/CD DRIVE DATA
USB STOP 1 key
Select Up key
USB STOP 2 key
Select Down key

Pioneer MEP-7000 Specifications

General

Frequency range	4 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
Total Harmonic Distortion (THD)	0.006 %
Dimensions (WxDxH)	483 x 325 x 91 mm
Power consumption (typical)	33 W

Weight and Dimensions

Weight	6100 g
