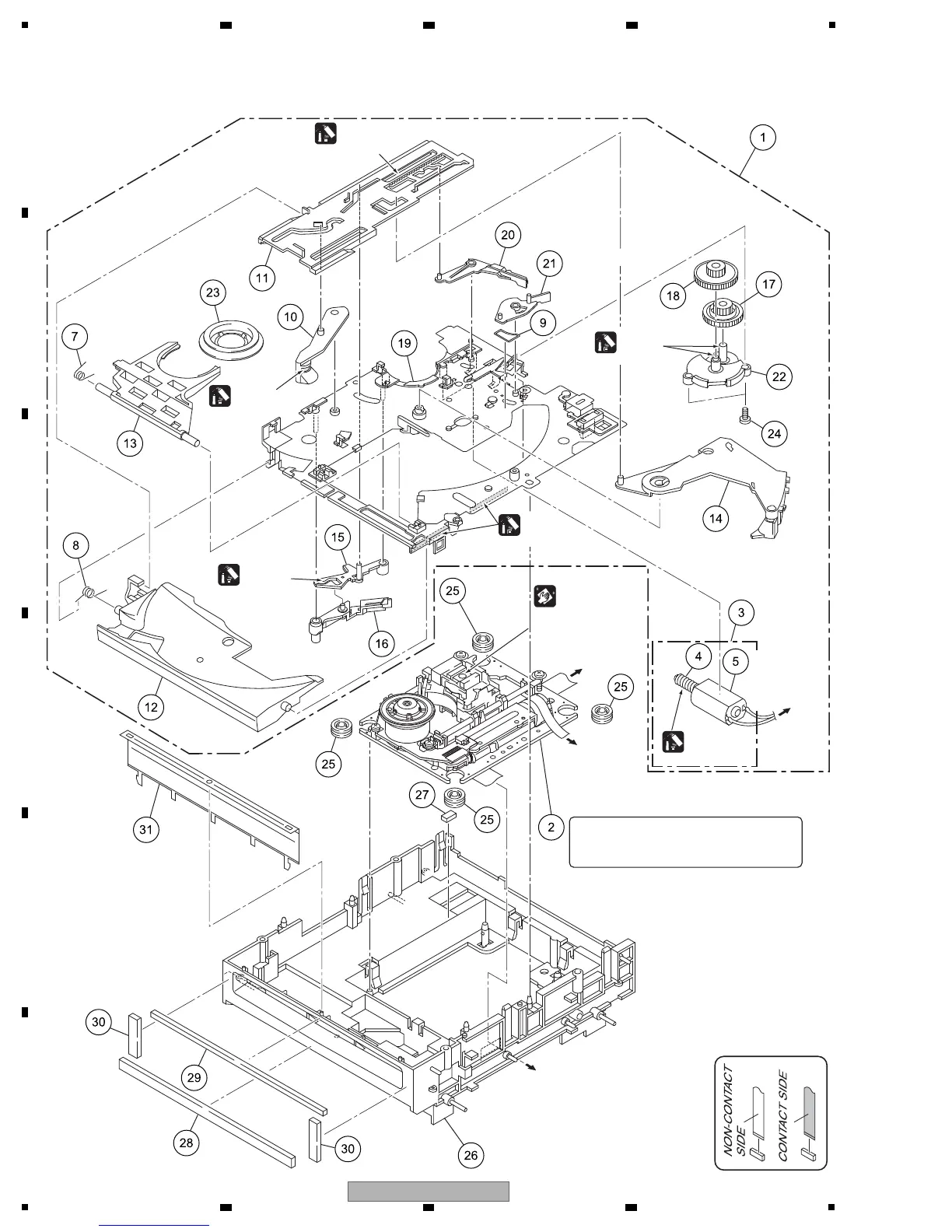

9.4 SLOT-IN MECHA SECTION
SLMB1 CN4400
(DRIVE 1)
SLMB2 CN4500
(DRIVE 2)
(Stepping motor)
SLMB1 CN4402
(DRIVE 1)
SLMB2 CN4502
(DRIVE 2)
(Loading motor)
SRV1 CN103 (DRIVE 1)
SRV2 CN903 (DRIVE 2)
(Spindle motor)
SRV1 CN100 (DRIVE 1)
SRV2 CN900 (DRIVE 2)
(Pickup)
Grease
GYA1001
(ZLB-PN397B)
Grease
GYA1001
(ZLB-PN397B)
Dyfree
GEM1036
(ZLX-ME413A)
Dyfree
GEM1036
(ZLX-ME413A)
Note:
The Traverse Assy 03-S is supplied only in
assembly form, not as a single parts.
Cleaning liquid: GEM1004
Cleaning paper: GED-008
Dyfree
GEM1036
(ZLX-ME413A)
Grease
GYA1001
(ZLB-PN397B)
