Piper PA-28-161 Maintenance Manual

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
1F7
7-10-00
JACKING
Jacking the airplane is necessary to service the landing gear and other operations. The jacking operation
is normally performed using tripod jacks. In other situations (i.e. - emergency, post-accident lifting, etc.),
slings or air bags may be more appropriate.
If wing or fuselage shoring is required, make sure the support is contoured to conform to the surface it is
supporting.
Jacking
A. Align jacks under the wing respective pads on the wing front spar.
CAUTION: BE SURE TO APPLY SUFFICIENT TAIL SUPPORT BALLAST. OTHERWISE, THE
AIRPLANE WILL SLIP FORWARD AND FALL ON THE FUSELAGE NOSE SECTION.
B. Attach a tail stand with approximately 250 pounds ballast to tail skid.
C. Carefully raise jacks until all three wheels are clear of the surface.
Jacking

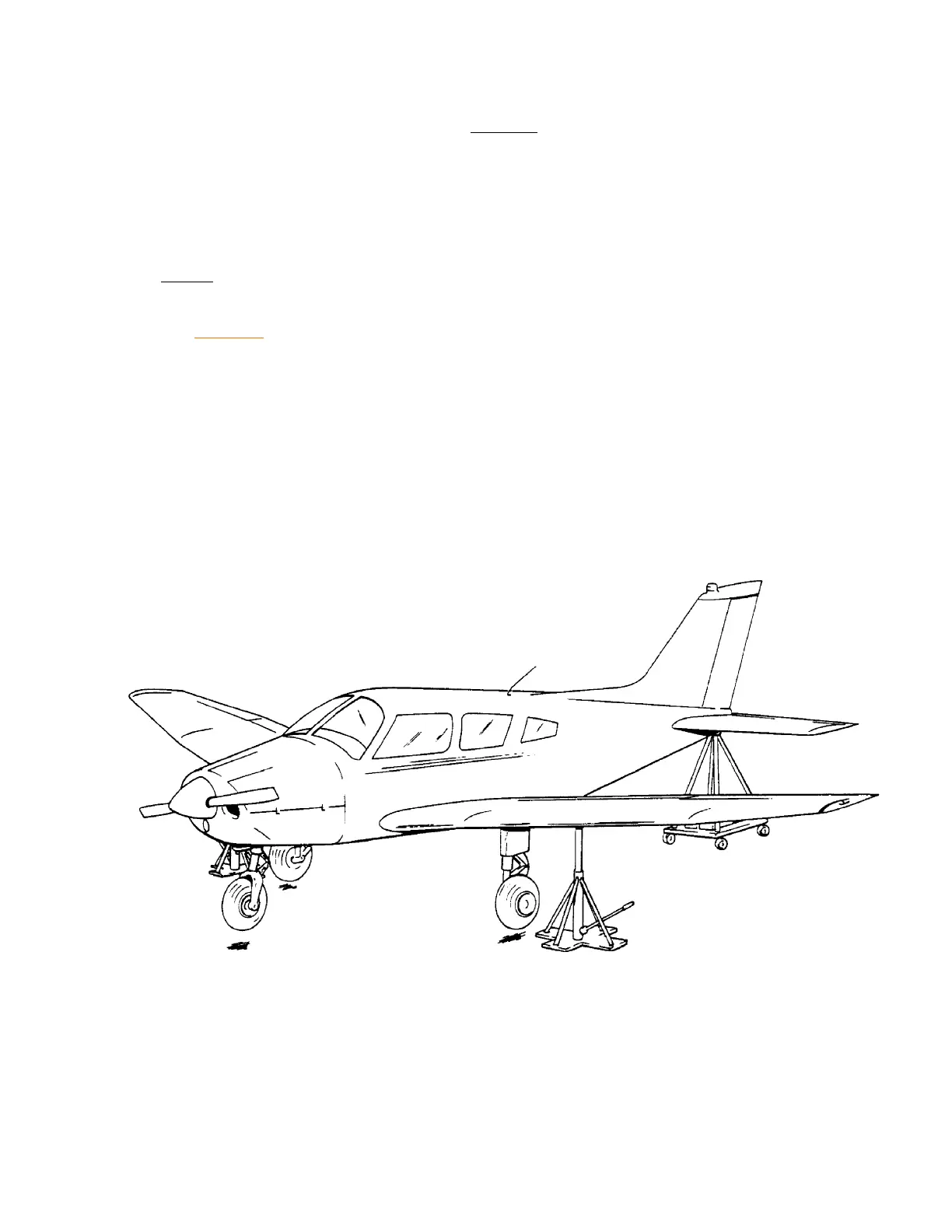

Figure 1

Piper PA-28-161 Specifications

General

Manufacturer	Piper Aircraft
Model	PA-28-161 Warrior II
Engine	Lycoming O-320-D3G
Horsepower	160 hp
Seating Capacity	4
Wingspan	35 ft (10.7 m)
Length	24 ft 0 in
Maximum Speed	127 knots
Cruise Speed	122 knots
Maximum Takeoff Weight	2, 325 lb (1, 055 kg)
Fuel Capacity	48 US gallons (182 L)
