Piper PA-28-161 Maintenance Manual

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 8
Nov 30/06
4J6
71-00-00
(d) Allow oil temperature to reach at least 80 degrees F.
(e) Record the test static rpm using the Vu-thru tachometer and engine oil temperature.
NOTE: If wind speed exceeds 10 knots, record static rpm and oil temperature into the
wind, left crosswind, downwind, and right crosswind. Average the four test static
rpm values.
(f) With OAT and relative humidity, read static rpm from Chart 3.
(g) With the oil temperature and OAT, read delta rpm from Chart 4.
(h) Subtract the delta rpm obtained from Chart 4, from the static rpm obtained from Chart 3.
This is the baseline.
C. Allowable Tolerance
The tested static rpm from the Vu-thru tachometer shall be within ± 50 rpm of the baseline static
rpm.

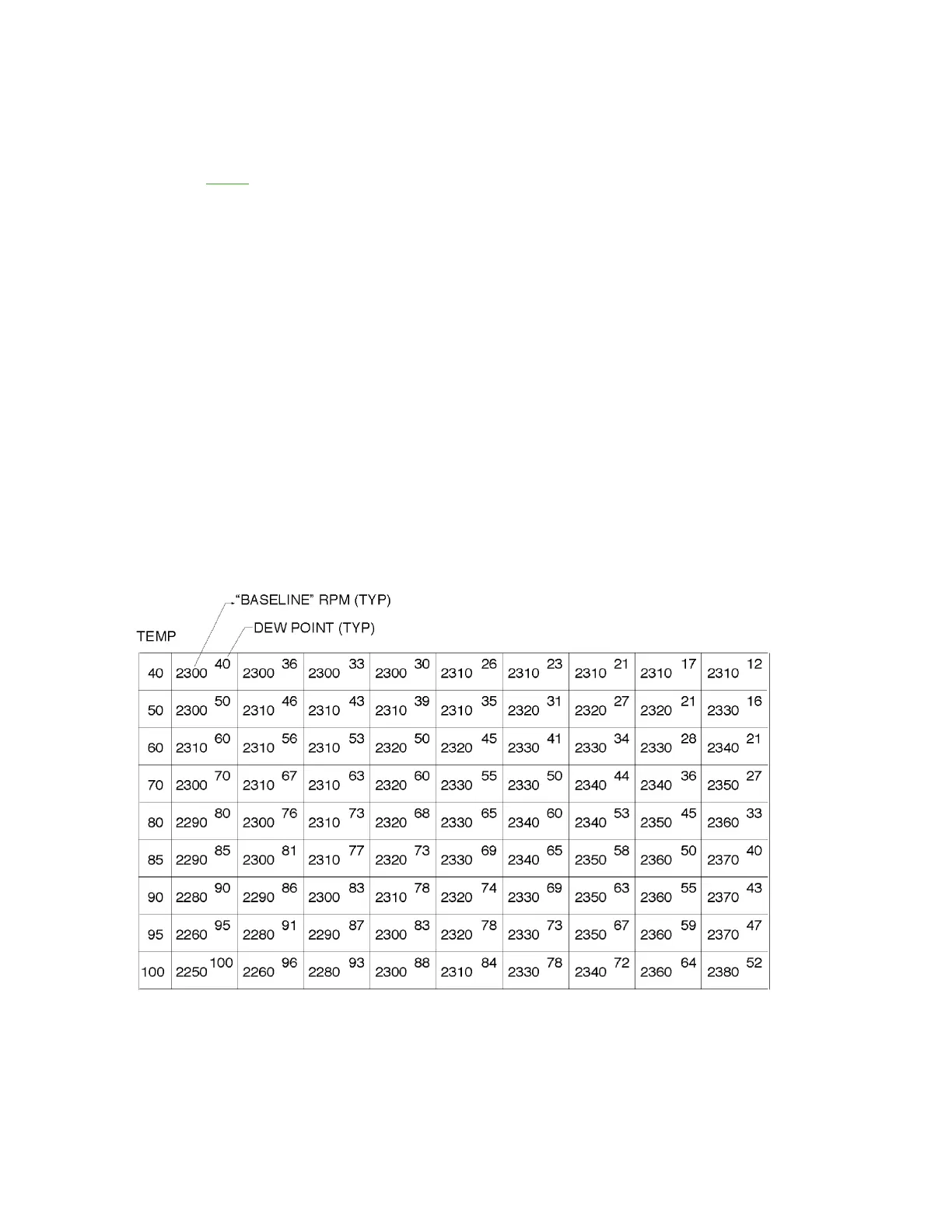

CHART 2
STATIC RPM SIMPLIFIED TEST
(PA-28-161 WITH 74DM6-0-60 PROPELLER)

Piper PA-28-161 Specifications

General

Manufacturer	Piper Aircraft
Model	PA-28-161 Warrior II
Engine	Lycoming O-320-D3G
Horsepower	160 hp
Seating Capacity	4
Wingspan	35 ft (10.7 m)
Length	24 ft 0 in
Maximum Speed	127 knots
Cruise Speed	122 knots
Maximum Takeoff Weight	2, 325 lb (1, 055 kg)
Fuel Capacity	48 US gallons (182 L)
