MOUNTS
1. Engine Shock Mounts (Refer
to Figure 1.)
A. Assemble the engine
shock mounts on the
engine mount as shown
in Figure 1. Note the
position of each mount
carefully. The upper right
and lower left mounts are
the same, as are the
upper left and lower right.
B. Swing the engine into
place, positioning the
engine mounting lugs so
they align with the engine
mount attachment points.
C. Position the shock
mount bolts through the
mounting lugs and
secure with nuts. Torque
the nuts progressively
following a circular
sequence until a torque
value of 450-500 inch
pounds is reached.
PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
4J17
71-20-00

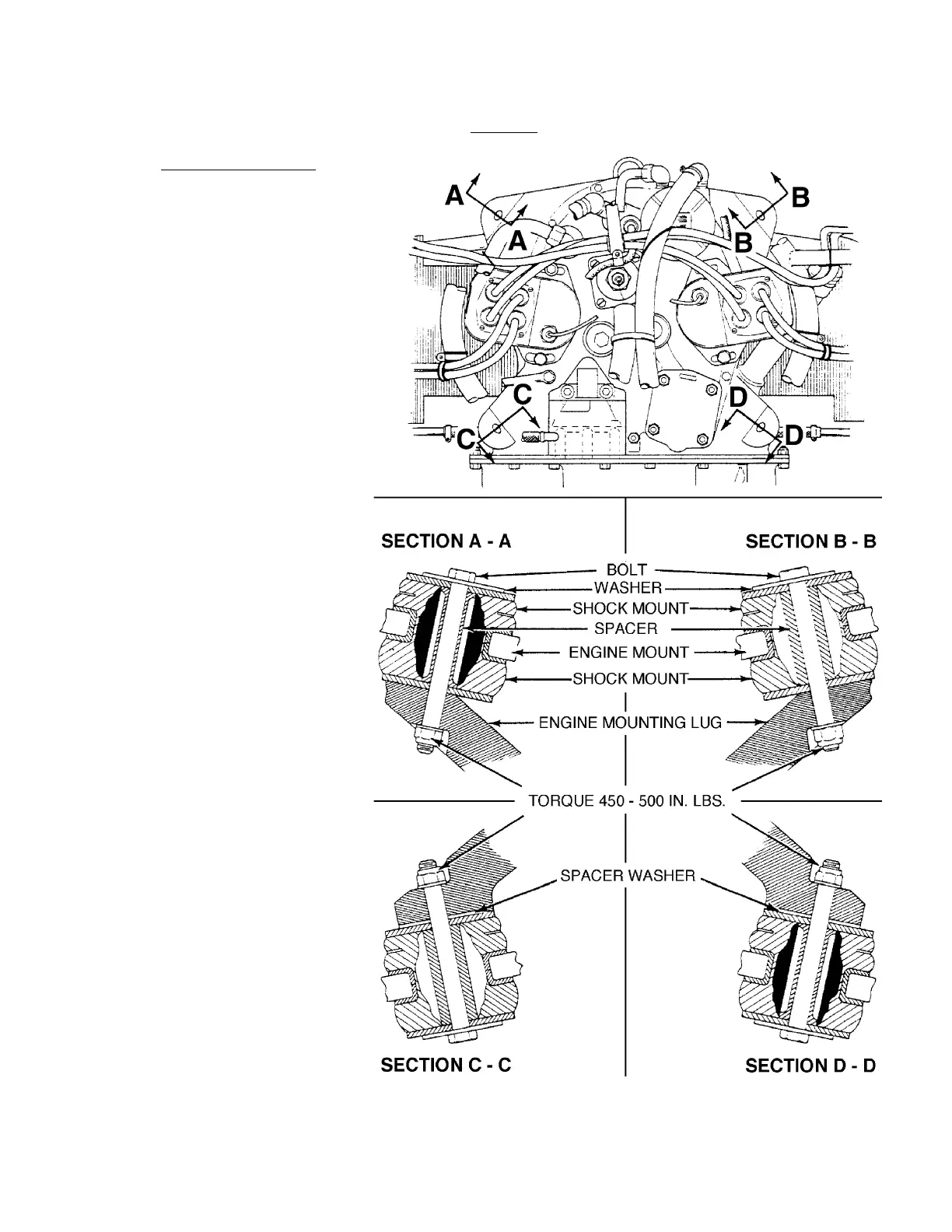

Engine Shock Mounts
Figure 1
