Piper PA-28-161 Maintenance Manual

2. Station Reference Lines
To locate various airplane components that require maintenance and servicing, a method utilizing
fuselage station, wing station, buttock line and waterline designations is frequently employed in this
manual. Fuselage stations (F.S.), wing stations (W.S.), buttock lines (B.L.), and water lines (W.L.) are
reference points measured by inches in the vertical or horizontal direction from a given reference line.
The reference datum line (F.S. 0) is located 78.4 inches ahead of the wing leading edge at the
intersection of the straight and tapered section, or, 44.5 inches ahead of the lower edge of the firewall;
B.L. 0 and W.S. 0 are the centerline of the airplane; and W.L. 0 is 20.5 inches below the cabin floor as
measured at the rear wing spar with the airplane level.
PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 5
Nov 30/06
1E21
6-00-00

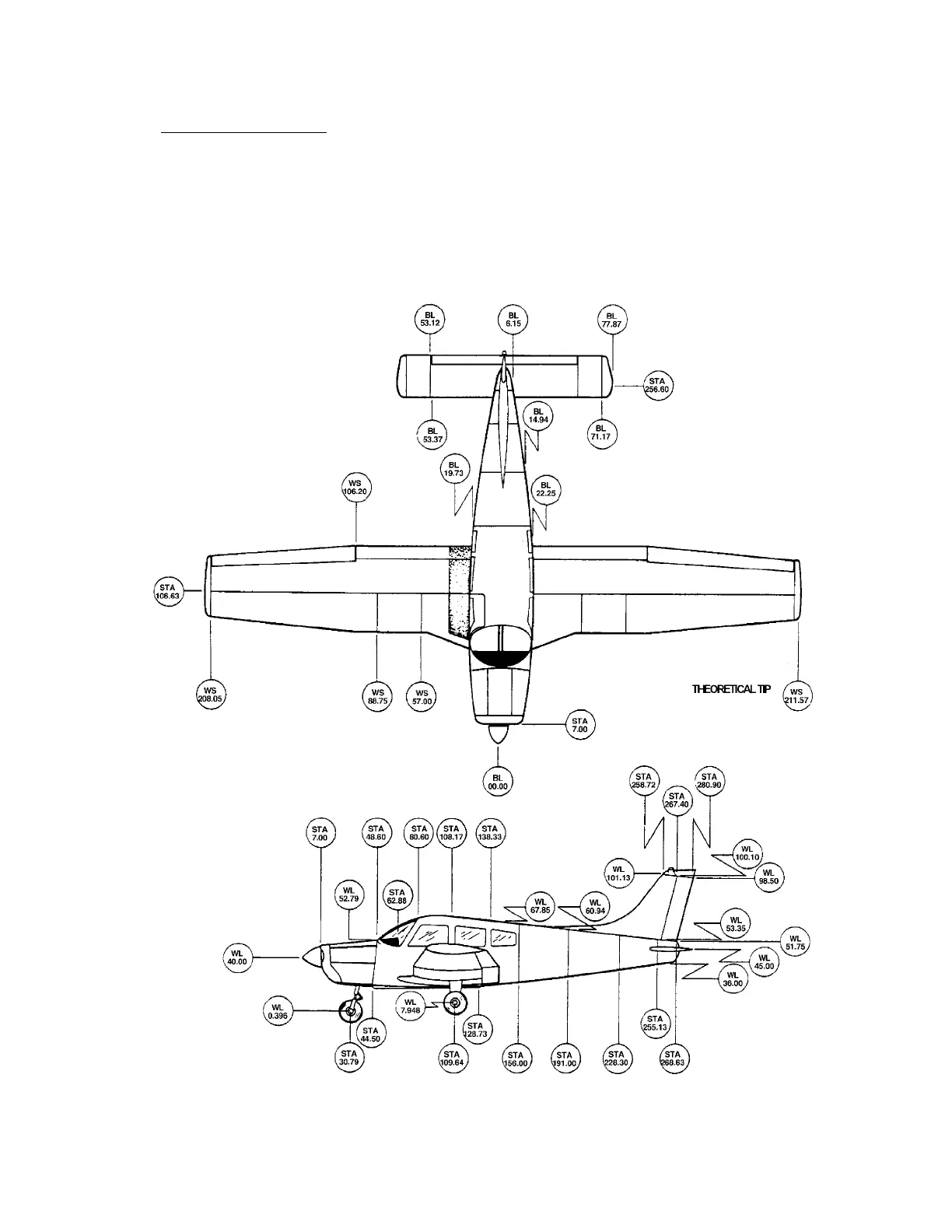

Station Reference Lines
Figure 2

Piper PA-28-161 Specifications

General

Manufacturer	Piper Aircraft
Model	PA-28-161 Warrior II
Engine	Lycoming O-320-D3G
Horsepower	160 hp
Seating Capacity	4
Wingspan	35 ft (10.7 m)
Length	24 ft 0 in
Maximum Speed	127 knots
Cruise Speed	122 knots
Maximum Takeoff Weight	2, 325 lb (1, 055 kg)
Fuel Capacity	48 US gallons (182 L)
