Piper PA-28-161 Maintenance Manual

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/064E13
53-20-00
MAIN
1. Aft Wing Attach Fittings 100 Hour Inspection
A. Background
Should the seals for the windows and doors not be maintained, leaks may develop which, if not
corrected, will allow an ingress of water. This water contamination will wet the insulation around the
aft wing attach fittings creating a highly corrosive environment.
B. Procedure
Each 100 hours, inspect to determine condition of the aircraft window and door seals, the condition
of the aft wing attach fittings, the insulation material around the affected area, and the drain holes in
the bottom fuselage skin at the aft attach fittings area.
(1) Gain access to the left and right aft wing attach fittings.(See Figure 1.)
(a) Remove rear seats and the rear floorboard.
(b) Remove interior mouldings and carpet as necessary.
(c) Remove the carpet from the baggage area floor and remove the two access panels in the
baggage area floor.

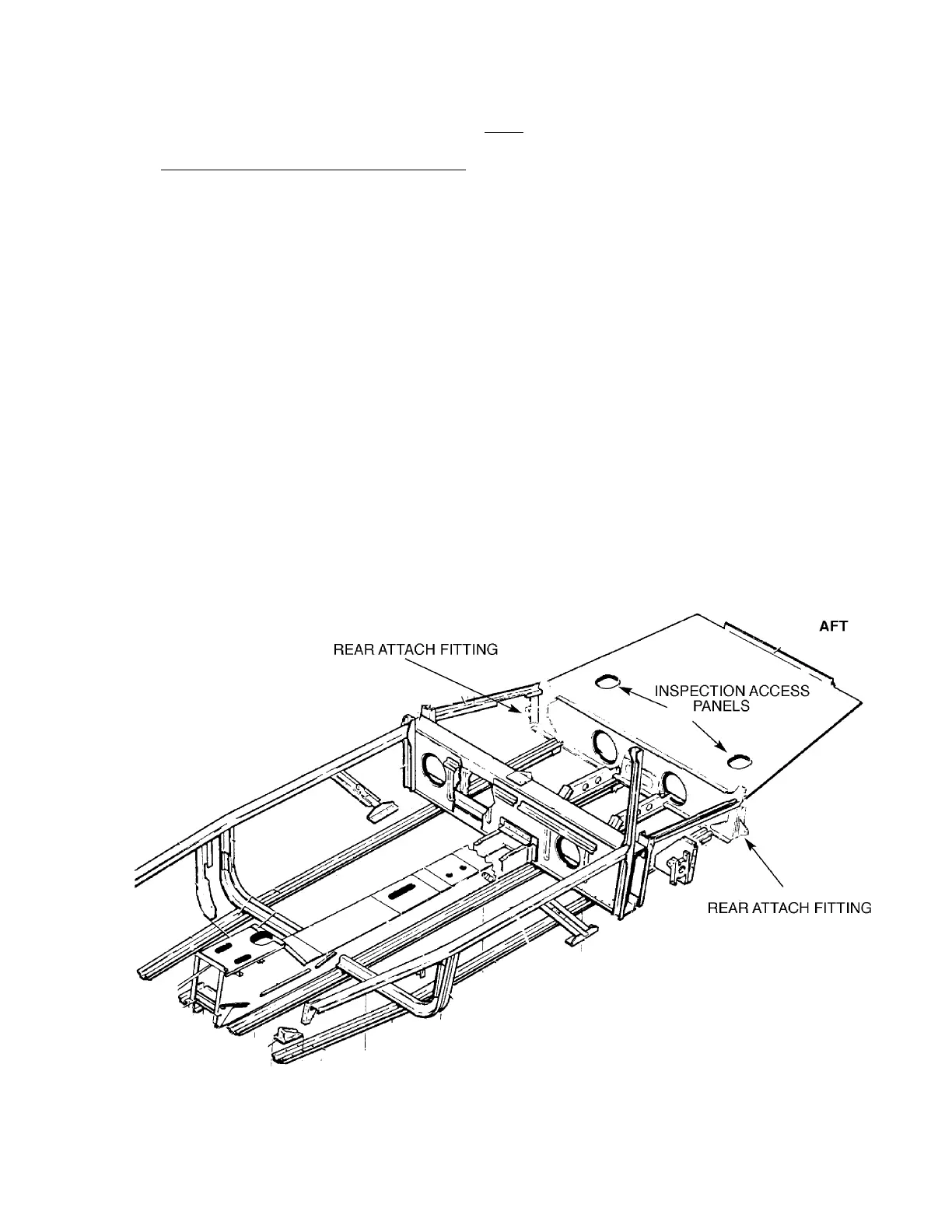

Aft Wing Spar Attachment
Figure 1

Piper PA-28-161 Specifications

General

Manufacturer	Piper Aircraft
Model	PA-28-161 Warrior II
Engine	Lycoming O-320-D3G
Horsepower	160 hp
Seating Capacity	4
Wingspan	35 ft (10.7 m)
Length	24 ft 0 in
Maximum Speed	127 knots
Cruise Speed	122 knots
Maximum Takeoff Weight	2, 325 lb (1, 055 kg)
Fuel Capacity	48 US gallons (182 L)
