Piper PA-28-161 Maintenance Manual

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
1E17
6-00-00
GENERAL
The principal airplane dimensions are shown in Figure 1, and the leading particulars/principal
dimensions are listed in Chart 1. The airplane serial number is located on the Manufacturers Aircraft
Association (MAA) plate on left side of the fuselage near the leading edge of the stabilator. The engine
serial number plate is located on the right side of the engine oil sump just below cylinder number 4.

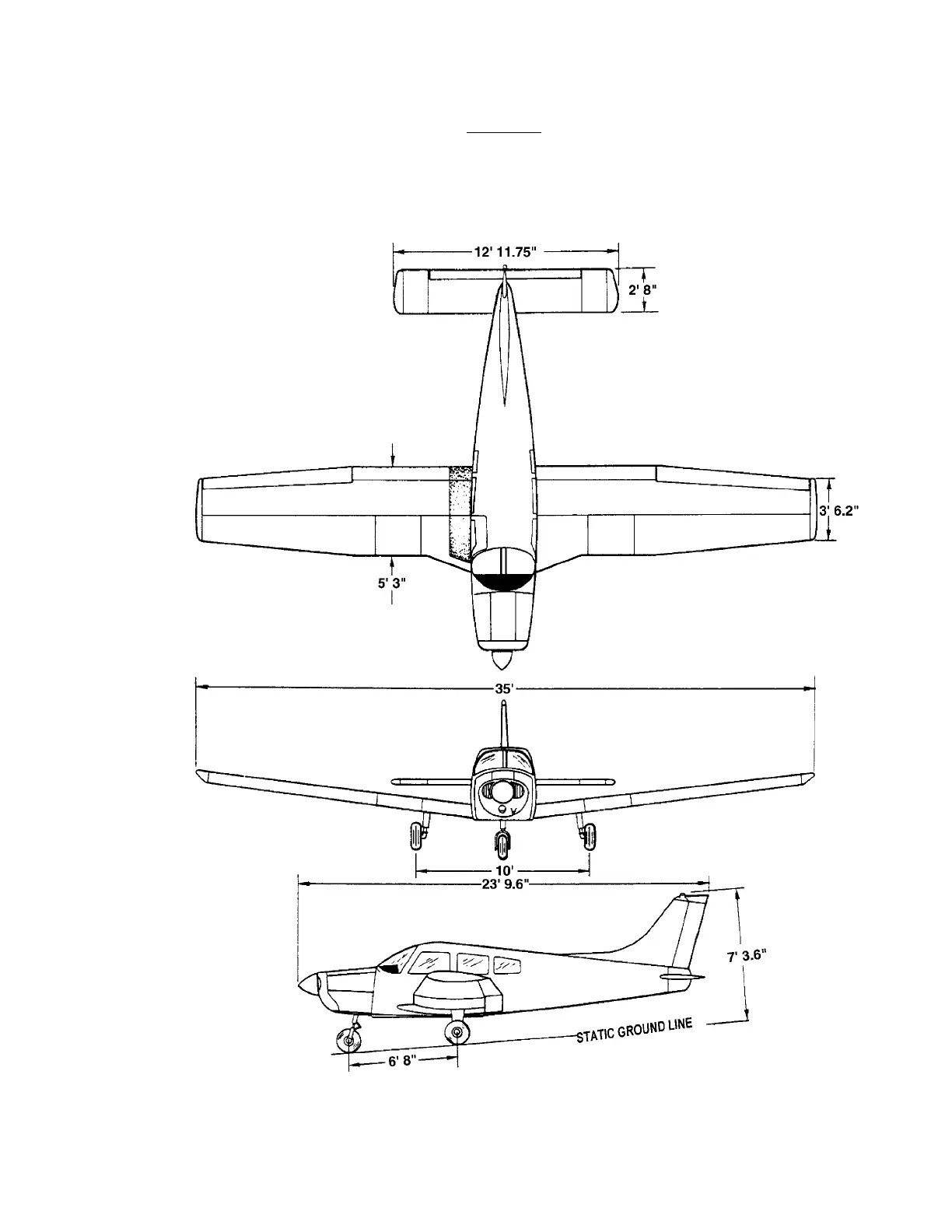

Three View
Figure 1

Piper PA-28-161 Specifications

General

Manufacturer	Piper Aircraft
Model	PA-28-161 Warrior II
Engine	Lycoming O-320-D3G
Horsepower	160 hp
Seating Capacity	4
Wingspan	35 ft (10.7 m)
Length	24 ft 0 in
Maximum Speed	127 knots
Cruise Speed	122 knots
Maximum Takeoff Weight	2, 325 lb (1, 055 kg)
Fuel Capacity	48 US gallons (182 L)
