PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
5H19
91-24-40

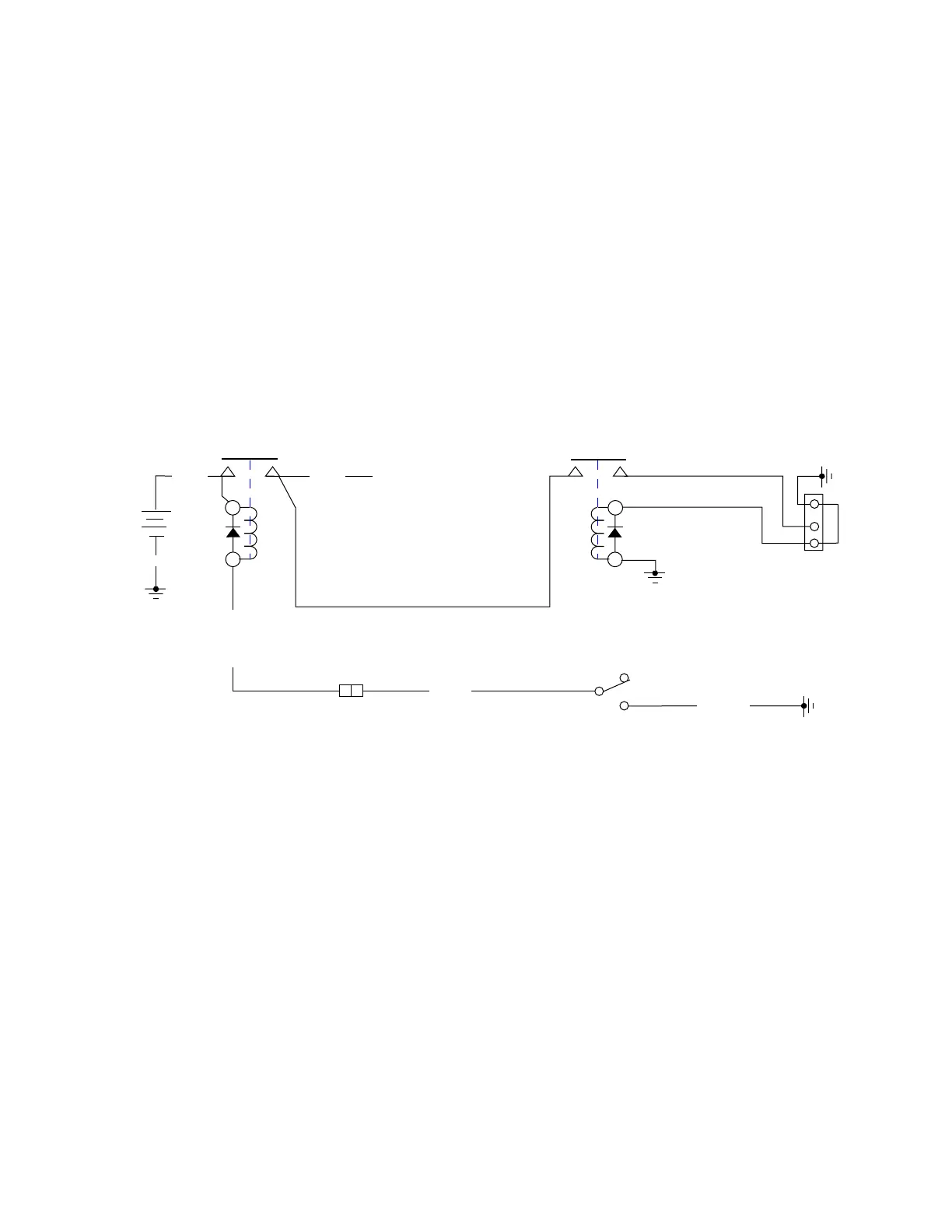

External Power
Figure 1
TO STARTER
CONTACTOR
EXTERNAL POWER
CONTACTOR
P1D 4
4
P1C 4
BATTERY
CONTACTOR
EXTERNAL
POWER
RECEPTACLE
+
-
P4AA 20
P4A 20
4
P2 R2
4
1
2
3
BATTERY
SWITCH
OFF
ON
P4B20N
85423 F
104295 F
