PIPER AIRCRAFT, INC.

PA-28-161, WARRIOR III

MAINTENANCE MANUAL

PAGE 6

Nov 30/06

3H6

34-20-00

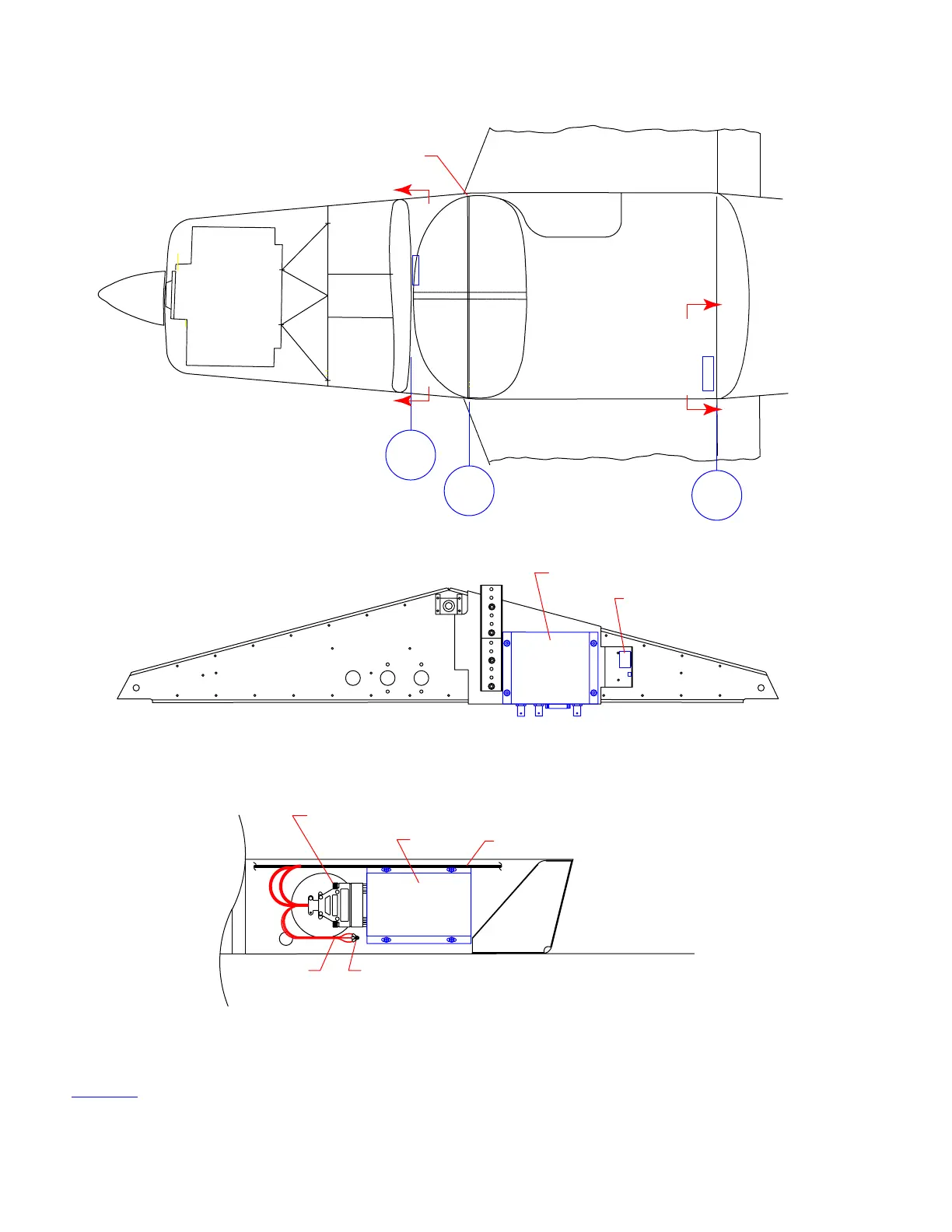

Component Locator

Figure 2 (Sheet 2 of 3)

48.6

62.88

INSTRUMENT PANEL (REF.)

101901-SHT 4,8-N

101910 P

101901-SHT 8-N

101910-SHT 5-K

128.73

DC-50 ANTENNA COUPLER

K17 RELAY AND

SUPPRESSION DIODE

VIEW A-A

ANTENNA COUPLER INSTALLATION - LOOKING FWD (STA 48.6)

P303, P304, & P305 (REF)

DAU

VIEW B-B

DAU INSTALLATION - LOOKING AFT (STA 128.737)

GROUND TO EXISTING GROUND STUD,

INSTALL WASHERS BETWEEN TERMINALS.

P5C22N

Q3A20N

Q4A20N

P7D22N

FUSELAGE HARNESS (REF)

Effectivity

with Avidyne Entegra
