Piper PA-28-161 Maintenance Manual

PAGE 3
Nov 30/064D13
51-80-00
PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL

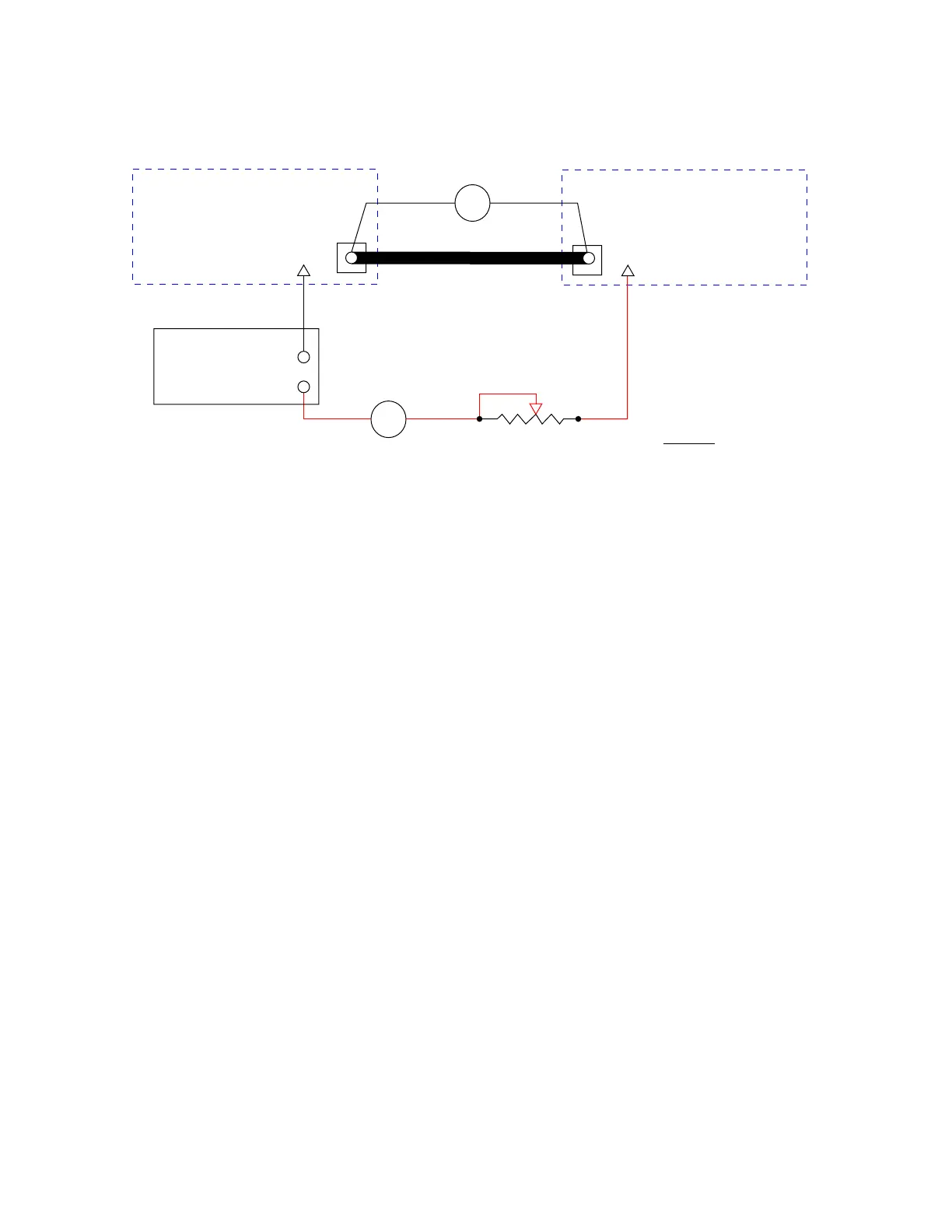

Millivolt Drop Test
Figure 1
COMPONENT SURFACE
AIRCRAFT STRUCTURE SURFACE
BONDING STRAP
28 VDC SOURCE
-
+
AMMETER
VOLT METER
MV
A
R1
Adjust rheostat (R1) so that ammeter (A)
reads 10 Amps.
Resistance in milliohms is then the reading
on the volt meter (i.e. - millivolts (MV))
divided by the amps (10) set on the
ammeter. For example, where MV equals
30:
30 MV
10 AMPS
= .003 OHMS RESISTANCE

Piper PA-28-161 Specifications

General

Manufacturer	Piper Aircraft
Model	PA-28-161 Warrior II
Engine	Lycoming O-320-D3G
Horsepower	160 hp
Seating Capacity	4
Wingspan	35 ft (10.7 m)
Length	24 ft 0 in
Maximum Speed	127 knots
Cruise Speed	122 knots
Maximum Takeoff Weight	2, 325 lb (1, 055 kg)
Fuel Capacity	48 US gallons (182 L)
