Planet GT-915A User Manual

User’s Manual of GT-915A
100
A.2 RJ-45 cable pin assignment
2
1
3
6
1
2
3
6
2
1
3
6
The standard RJ-45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and
color of straight cable and crossover cable connection:

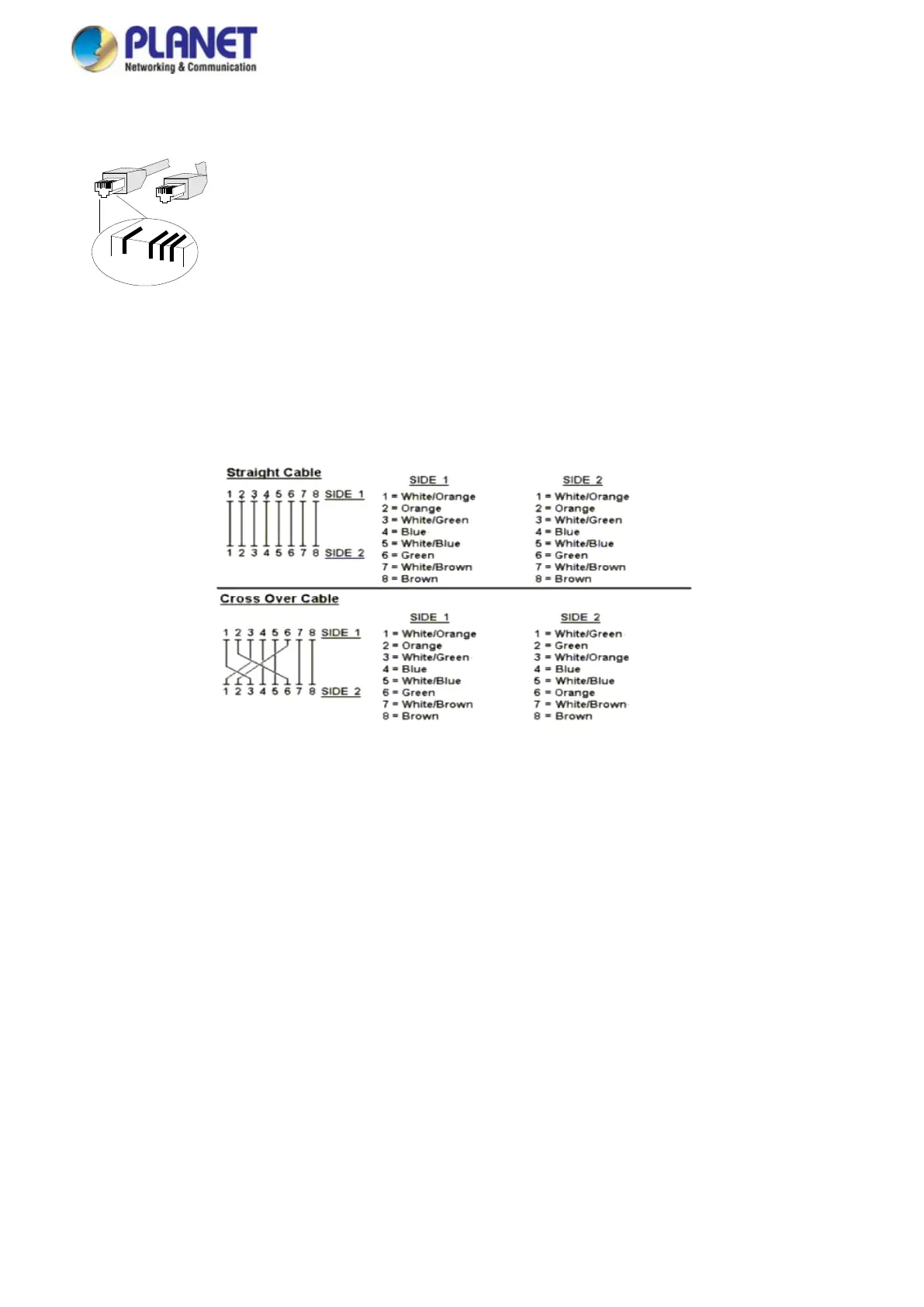

Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture before deploying the cables
into your network.
