4.1 Main Web Page
The Managed Media Converter provides a Web-based browser interface for configuring and managing it. This interface allows
you to access the Managed Media Converter using the Web browser of your choice. This chapter describes how to use the
Managed Media Converter’s Web browser interface to configure and manage it.

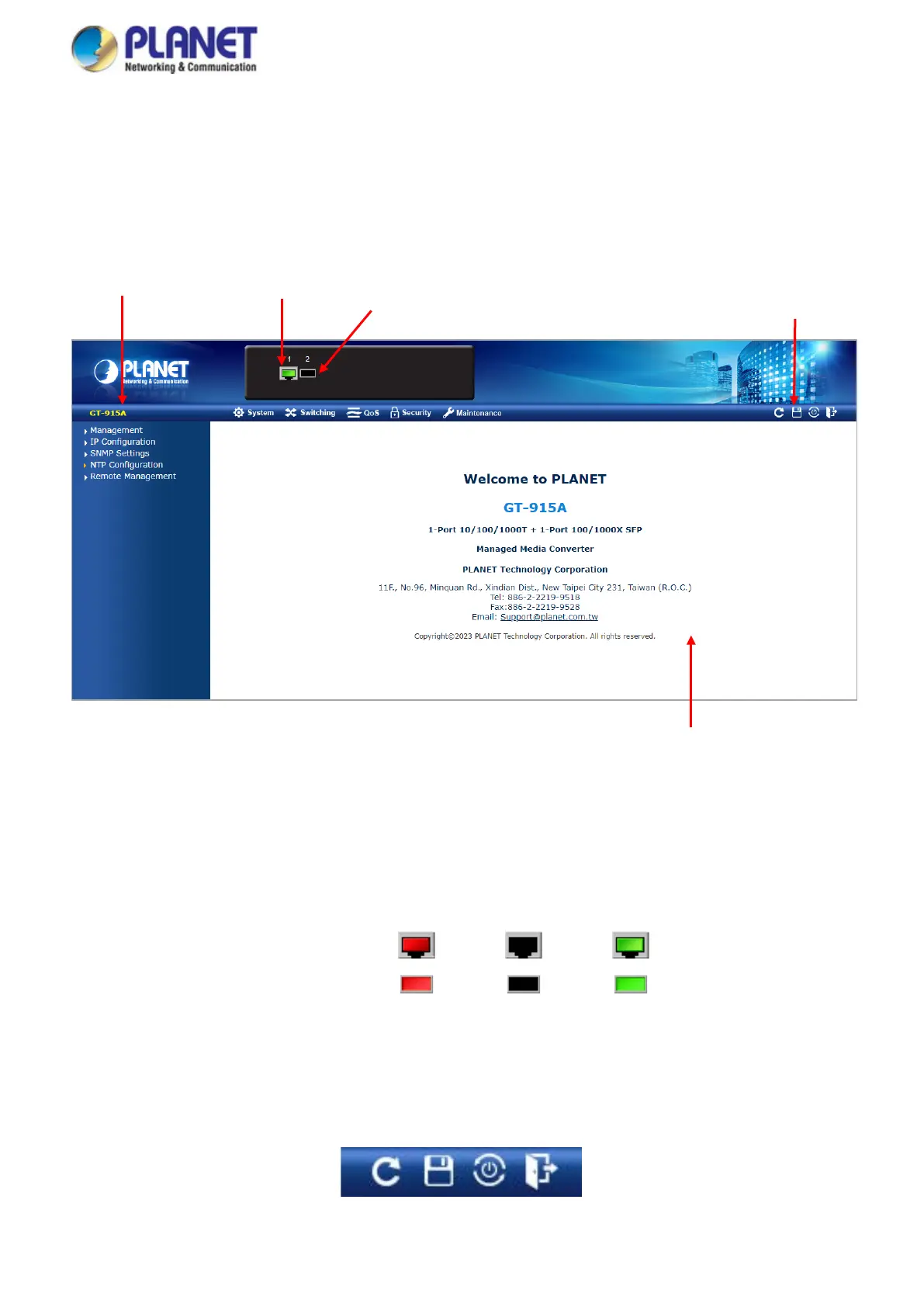

Figure 4-4: Web Main Page
Panel Display
The web agent displays an image of the Managed Media Converter’s ports. The Mode can be set to display different information
for the ports, including Link up or Link down. The port status are illustrated as follows:
State Disabled Down Link
RJ45 Ports
SFP Ports
System Hot Key Icons
The system hot keys icons are in the right side of the Managed Media Converter’s web page, from left to right side is System Up
Time, refresh button, save config button, reboot button and logout button.
Main Screen
Copper Port
Link Statu
SFP Port
Link Statu
Main Functions Menu
System Hot Keys Icon
