User’s Manual of GT-915A
4.3.2.3 OAM TS-1000 Loop Back
The TS-1000 Loop Back Test allows manual run this loop back test to check the interconnection between two Media Converter
devices. To assure the Remote TS-1000 OAM function can work correctly.
In-band and out-band Loop back
1. Instruct center Media Converter to issue an OAM frame to request a loop back test. Terminal return start response OAM
frame to center Media Converter.
2. Terminal Media Converter runs at loop back mode.
3. Central Media Converter send test frame and terminal Media Converter loop back the frames. Test frame can be generated
from central Media Converter’s UTP port (Out-Band) or from central Media Converter (In-Band) automatically.
4. Center Media Converter check the loop back test result after sending all test frames
5. Instruct the central Media Converter to end loop back test.
This function provides TS-1000 Loop Back Test of Managed Media Converter. Press the “Apply” button to run Loop Back Test
and see the TS-1000 Loop Back Test Result of Managed Media Converter, also press the “Refresh” button to renew the Web

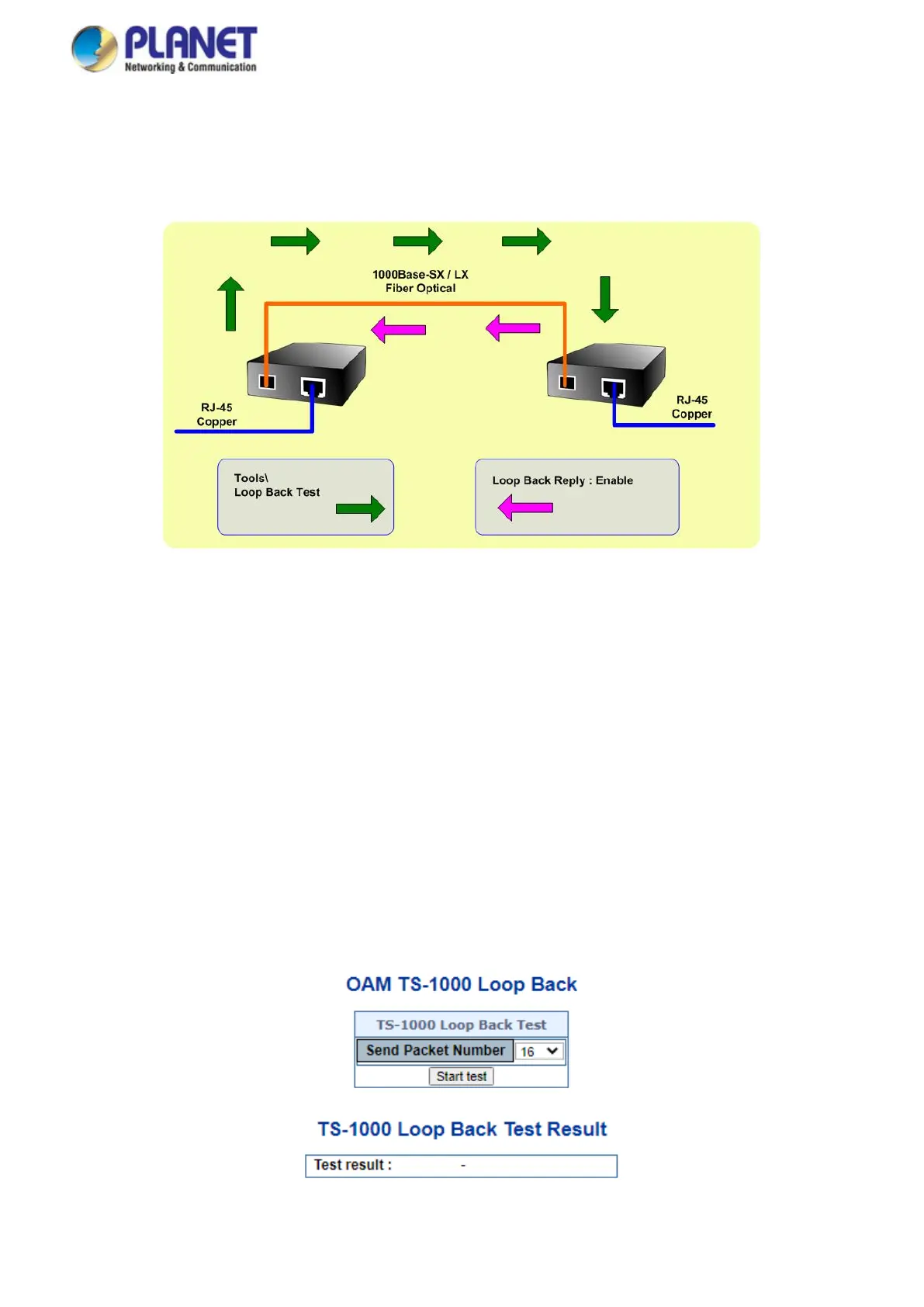

screen. The screen in Figure 4-34 appears and Table 4-35 describes the TS-1000 Loop Back Test object of Managed Media
Converter.
