Object
Description
• Queue Mode
Select the Queue Mode for QoS and the available options are shown below:
First-In-First-Out
WRR/WFQ/Bwassure/Bwlimit/TWRR
SPx1 WRR/WFQ/Bwassure/Bwlimit/TWRRx7
SPx2 WRR/WFQ/Bwassure/Bwlimit/TWRRx6
SPx4 WRR/WFQ/Bwassure/Bwlimit/TWRRx4
SPx8
•
Queue Method
Select the Queue Method for QoS and the available options are shown below:
WRR
WFQ
Bwassure
Bwlimit
TWRR
• Queue Ratio (0-255)
Set Queue Ratio for each mode and the available range is 0-255.
•
Unit (BW Throttle
Period/TWRR Tickle
Unit)
Set Queue Ratio Unit for each mode and the available options are shown below:
64Kbps/51.2ms
1Mbps/3.1ms
2Mbps/1.55ms
4Mbps/0.82ms
Button
: press this button to take effect.
4.4.2.2 Class of Service
This page allows you to configure the QoS Class of Service settings for all switch ports as the QoS Class of Servic screen in
Figure 4-55 appears.

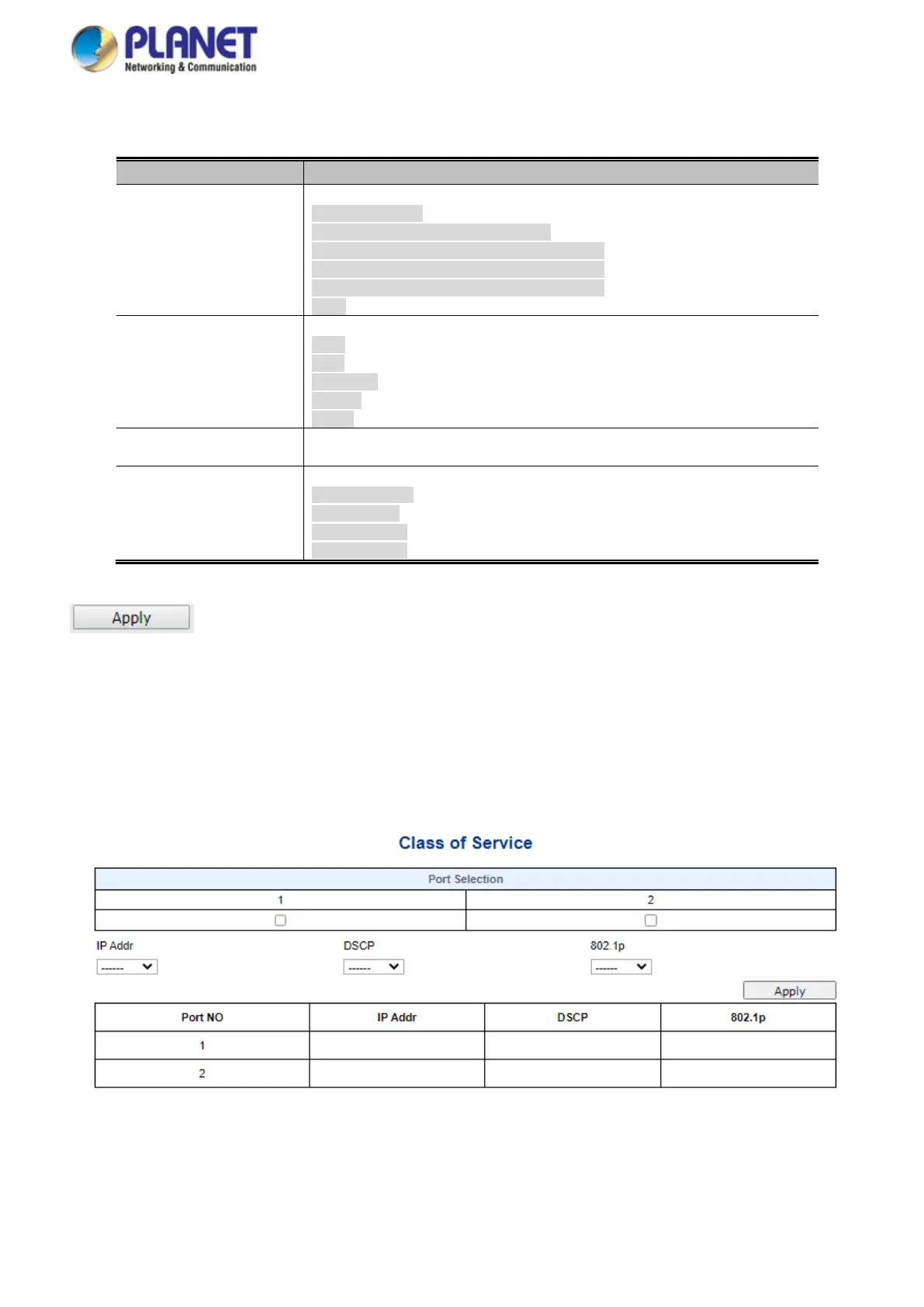

Figure 4-55: QoS Class of Service Configuration Page Screenshot
The page includes the following fields:
