User
’
s Ma
nual of
GT
-
915A
23

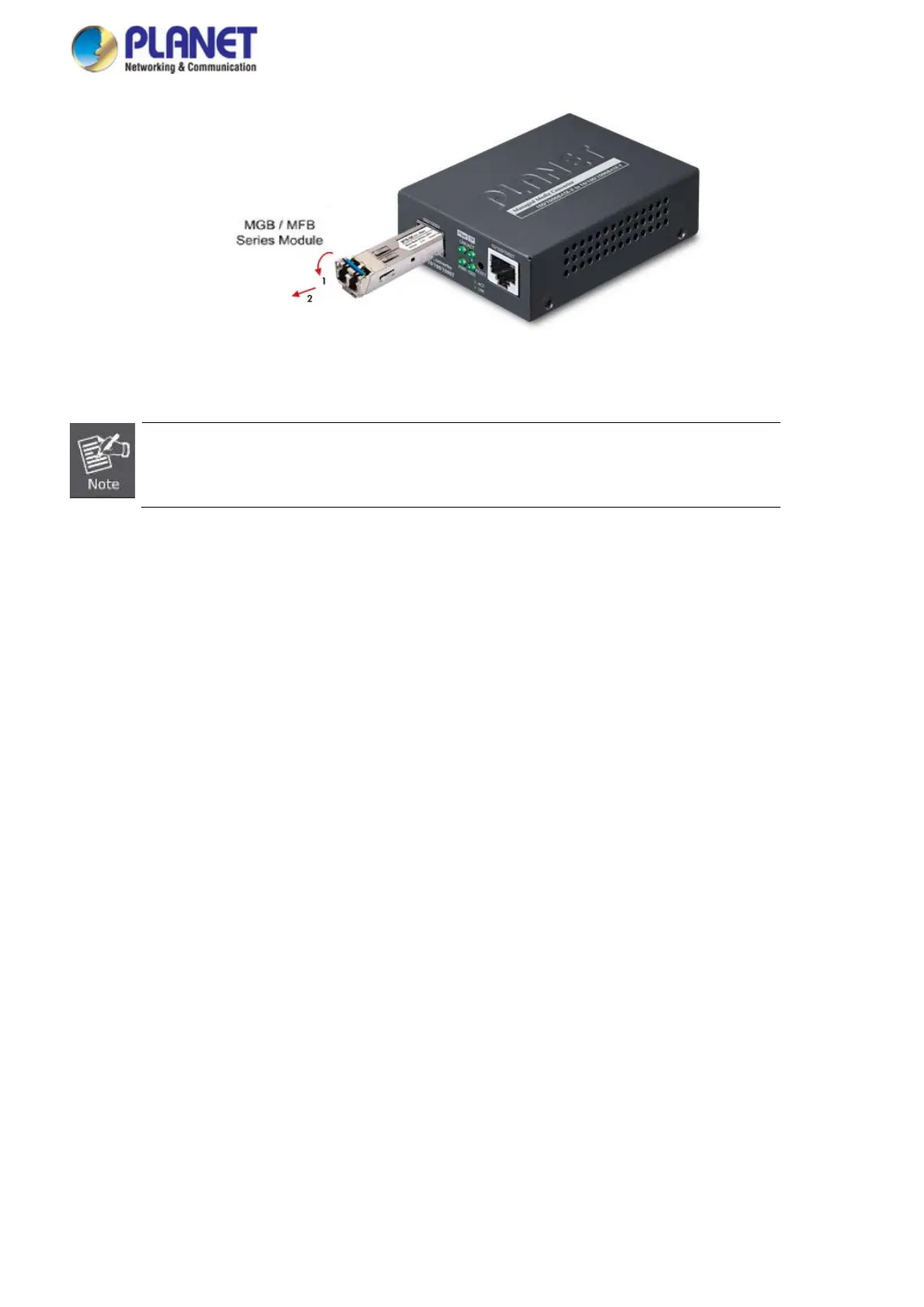

Figure 2
-4:
How to
Pull
O
ut the SFP
Tr
ansc
eiver
Never pull
out
the
module without
lifti
ng up the lev
er of t
he module
and turning it
to a horiz
ontal pos
ition.
Directly pu
lling out the m
odule cou
ld damage the
m
odu
l
e
and the SFP modul
e slot of t
he
Managed
Media C
onverter
.
22
24
Table of Contents
Table of Contents
3
Introduction
6
Product Description
7
How to Use this Manual
10
Product Features
11
Product Specifications
13
Installation
16
Hardware Description
16
Converter Front Panel
16
Converter LED Indicators
17
Rear Panel
18
Power Information
18
Media Converter Installation
19
Stand-Alone Installation
19
Wall-Mount Installation
19
Media Chassis Installation
20
Installing the SFP Transceiver
21
Media Converter Management
24
Requirements
24
Management Access Overview
24
Web Management
25
SNMP-Based Network Management
26
PLANET Smart Discovery Utility
27
Web Configuration
29
Main Web Page
32
System
35
Management
36
System Information
36
System Configuration
37
Device Information
38
Users Configuration
38
CPU Resource Utilization
39
Syslog Settings
40
System Log
41
IP Configuration
42
Ipv4
42
Ipv6
42
SNMP Settings
43
SNMP Configuration
44
SNMP View Table
44
SNMP Group Table
46
SNMP User Table
47
SNMP Community Table
48
SNMP Host Table
49
NTP Configuration
50
Remote Management
51
Switching
53
Port Management
54
Port Configuration
54
SFP Module Information
55
Oam Ts-1000
56
Local OAM TS-1000 Configuration
56
Remote OAM TS-1000 Configuration
57
OAM TS-1000 Loop Back
58
OAM 802.3Ah
60
Common OAM 802.3Ah Configuration
60
Remote OAM 802.3Ah Configuration
61
OAM 802.3Ah Loop Back
62
VLAN Configuration
64
VLAN Overview
64
Ieee 802.1Q Vlan
65
VLAN Mode
68
VLAN Tag-Based Entry Config
69
VLAN Port Config
71
Q-In-Q Port Config
74
Q-In-Q Index Config
76
Lldp
78
LLDP Global Setting
78
LLDP Port Setting
79
LLDP Remote MIB
81
Link Fault Passthrough
82
Qos
83
Understanding Qos
83
General
84
Qos Mode Set
84
Class of Service
85
P-Based Qos
86
DSCP-Based Priority
87
IP Addr Base
88
Bandwidth Control
89
Storm Control
90
Security
92
Access Security
92
Access Management
92
Https
93
Maintenance
94
Configuration
94
Backup
94
Restore
94
Save
94
Firmware Update
95
Factory Default
95
System Reboot
96
Troubleshooting
97
Appendix A Networking Connection
99
Device's RJ-45 Pin Assignments
99
Cable Pin Assignment
100
