The VLAN Port configuration screen in Figure 4-46 is shown below.

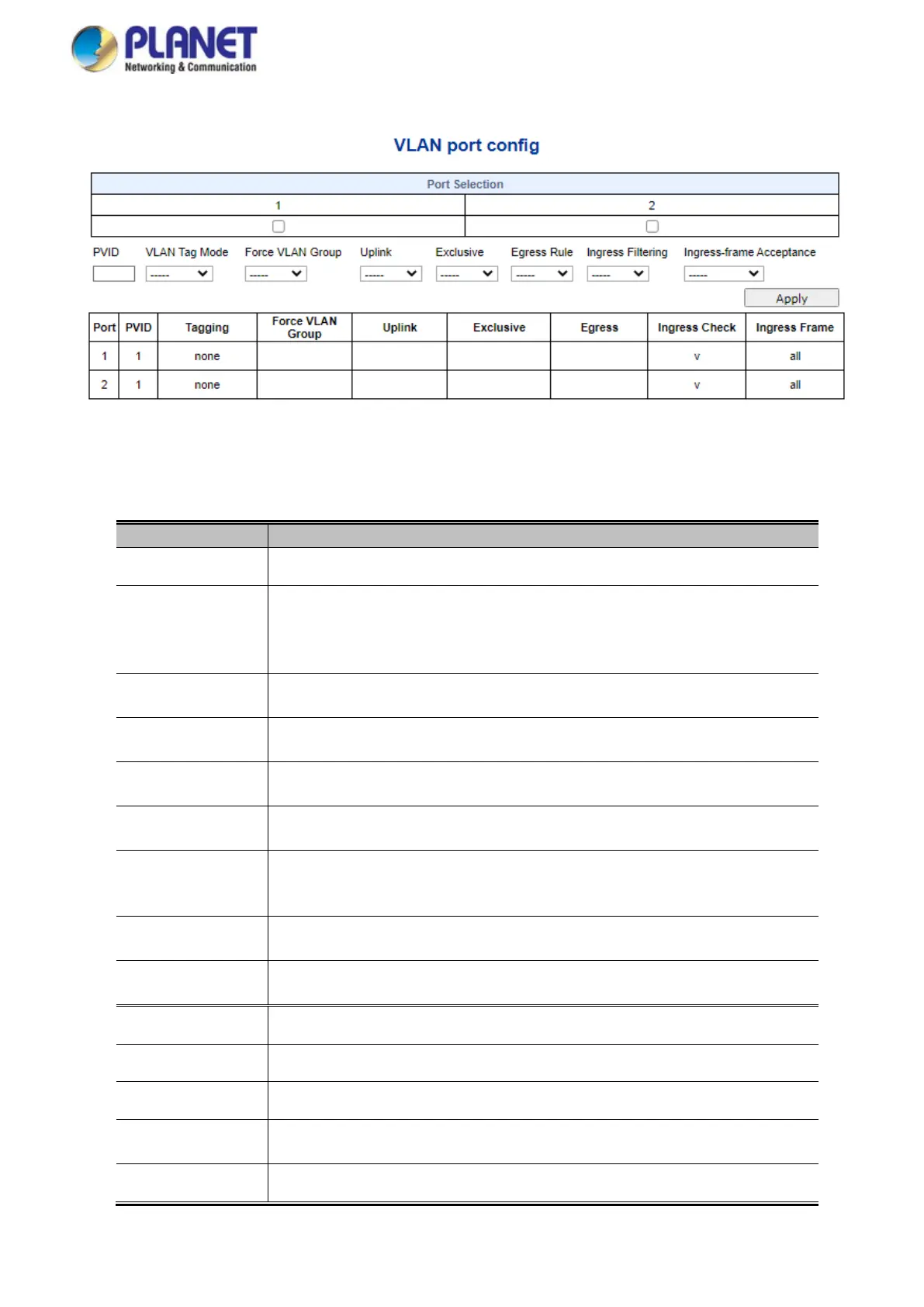

Figure 4-46 : VLAN Port Config Configuration Page Screenshot
The page includes the following fields:
• Port Selection Select specific port for VLAN settings.
• PVID Allow assigned PVID for selected port. The range for the PVID is 1-4094.
The PVID will be inserted into all untagged frames entering the ingress port. The PVID
must as same as the VLAN ID that the port belong to VLAN group, or the untagged
• Tagging Set whether VLAN Tag is added or removed from the packet sent out by selected port.
The available options are “Add”, “RMV” and “None”.
• Force VLAN
Whether or not to set priority according to the group VLAN setting for the action.
• Uplink Set up the Uplink port, which automatically sends the packet out of the Uplink Port
when the destination Port is not the same as the VLAN.
• Exclusive Enable or disable the exclusive function on specific port, the exclusive port unable to
• Egress Enable or disable the exgress function on specific port, when the destination port of the
packet is not in the same VLAN, it can still be transmitted to the destination port via the
• Ingress-Check Enable or disable the ingress check function, check whether port is member of this
• Ingress-Frame
Setting allows the specified frame to do the forwarding action.
The available options are “Tag-Frame” and “All”.
• Port Display per port list.
• PVID Display per port PVID information.
• Tagging Display per port Tagging information.
• Force VLAN
Display per port Force VLAN Group information.
• Uplink Display per port Uplink information.
