User Manual of WDAP-C1750
-76-

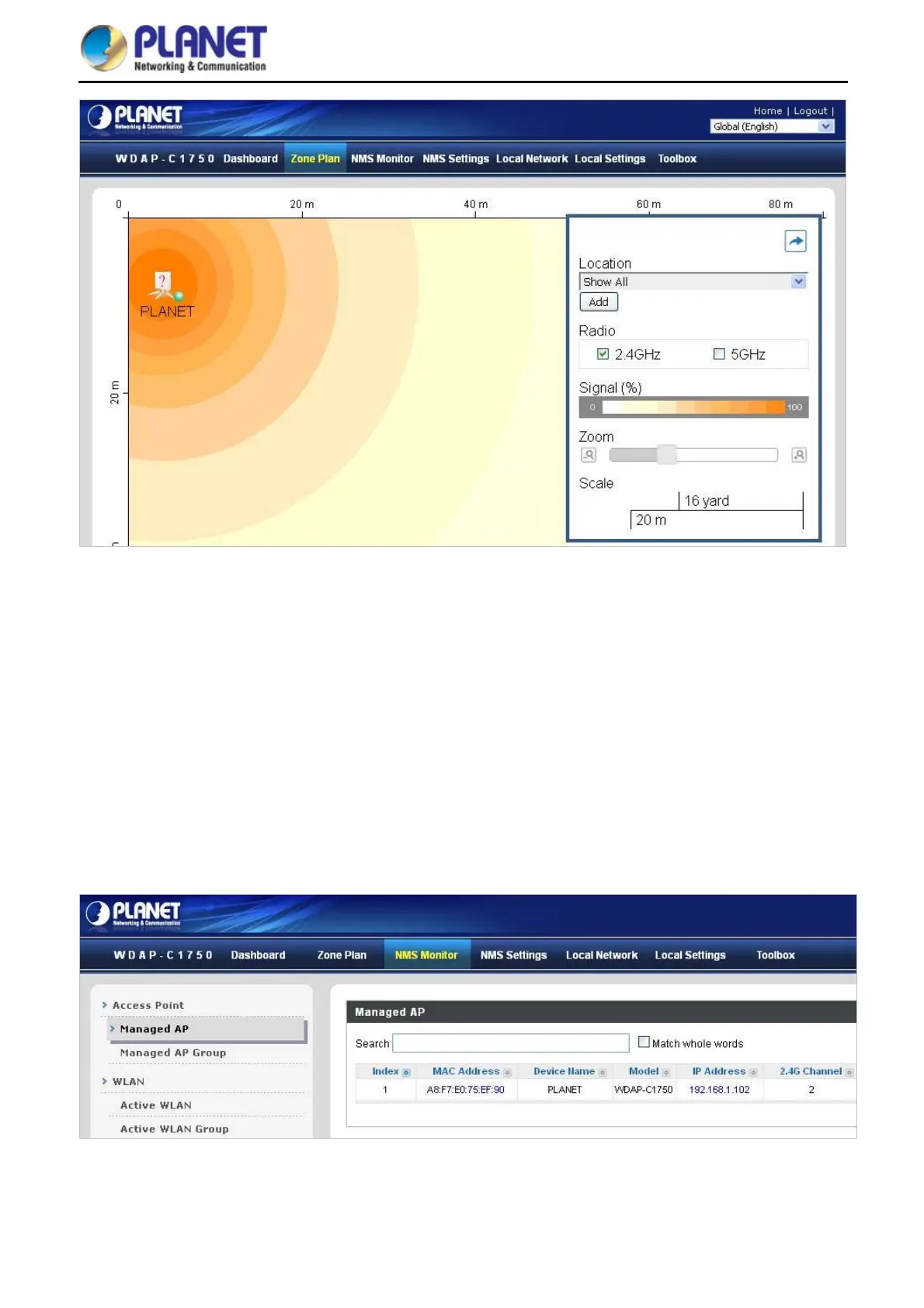

Figure 6-2 Zone Plan
6.3 NMS Monitor
The NMS Monitor panel provides more detailed monitoring information about the AP Array than found on the
Dashboard, grouped according to categories in the menu down the left side.
6.3.1 Managed AP
Displays information about each Managed AP in the local network: Index (reference number), MAC Address,
Device Name, Model, IP Address, 2.4GHz & 5GHz Wireless Channel Number, No. of Clients connected to each
access point, and Status (connected, connecting or disconnected).
Figure 6-3 NMS Monitor—Managed AP
