User Manual of WDAP-C1750
-79-

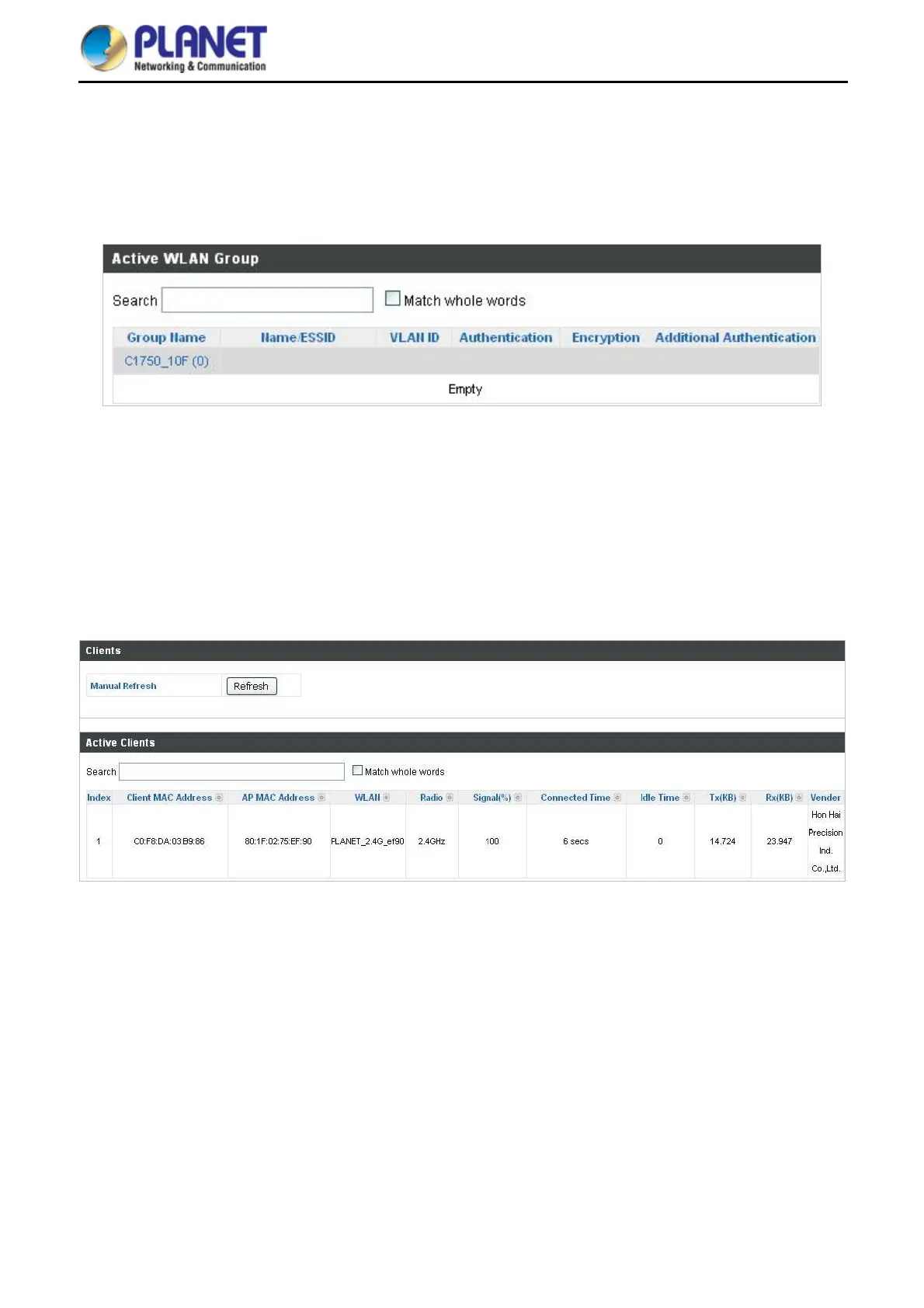

6.3.4 Active WLAN Group
WLAN groups can be created according to your preference. Active WLAN Group displays information about
WLAN group: Group Name, Name/SSID, VLAN ID, Authentication, Encryption, IP Address and Additional
Authentication.
Figure 6-6 NMS Monitor—Active WLAN Group
6.3.5 Active Clients
Displays information about clients currently connected to the AP Array: Index (reference number), Client MAC
Address, AP MAC Address, WLAN (SSID), Radio (2.4GHz or 5GHz), Signal Strength received by Client,
Connected Time, Idle Time, Tx & Rx (Data transmitted and received by Client in KB), and the Vendor of the
client device.
Figure 6-7 Clients—Active Clients
6.3.6 All Events/Activities
Displays a log of time-stamped events for each access point in the Array – use the drop down menu to select an
access point and view the log.
