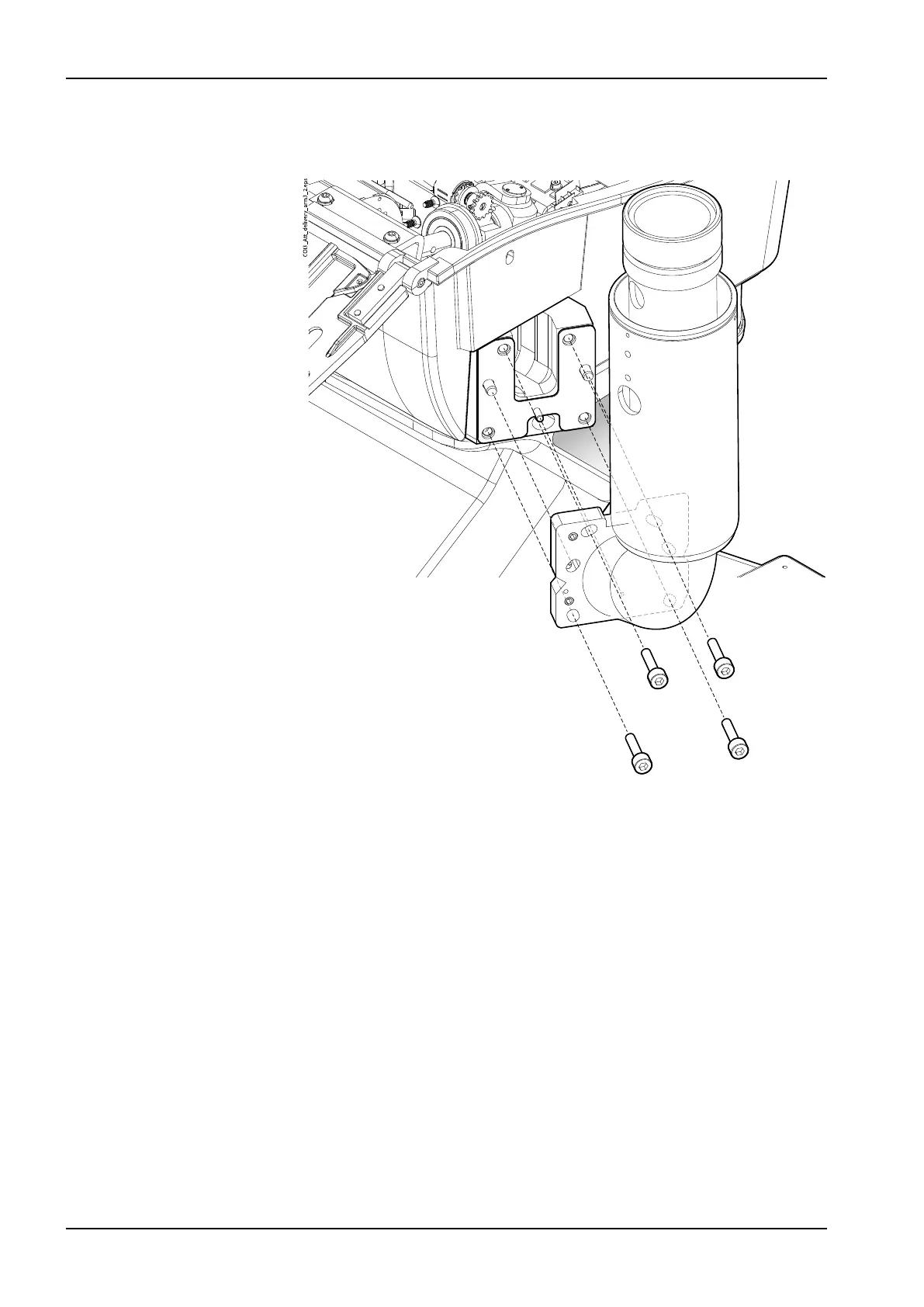

5. Attach the adapter tube to its position with four M8x30 DIN 912 screws
using a 5 mm Allen key. Do not tighten the attachment screws yet, the
adapter tube position must be adjusted before tightening the screws.
7 Installing OP delivery arm
24 Planmeca Compact i3 Installation manual
