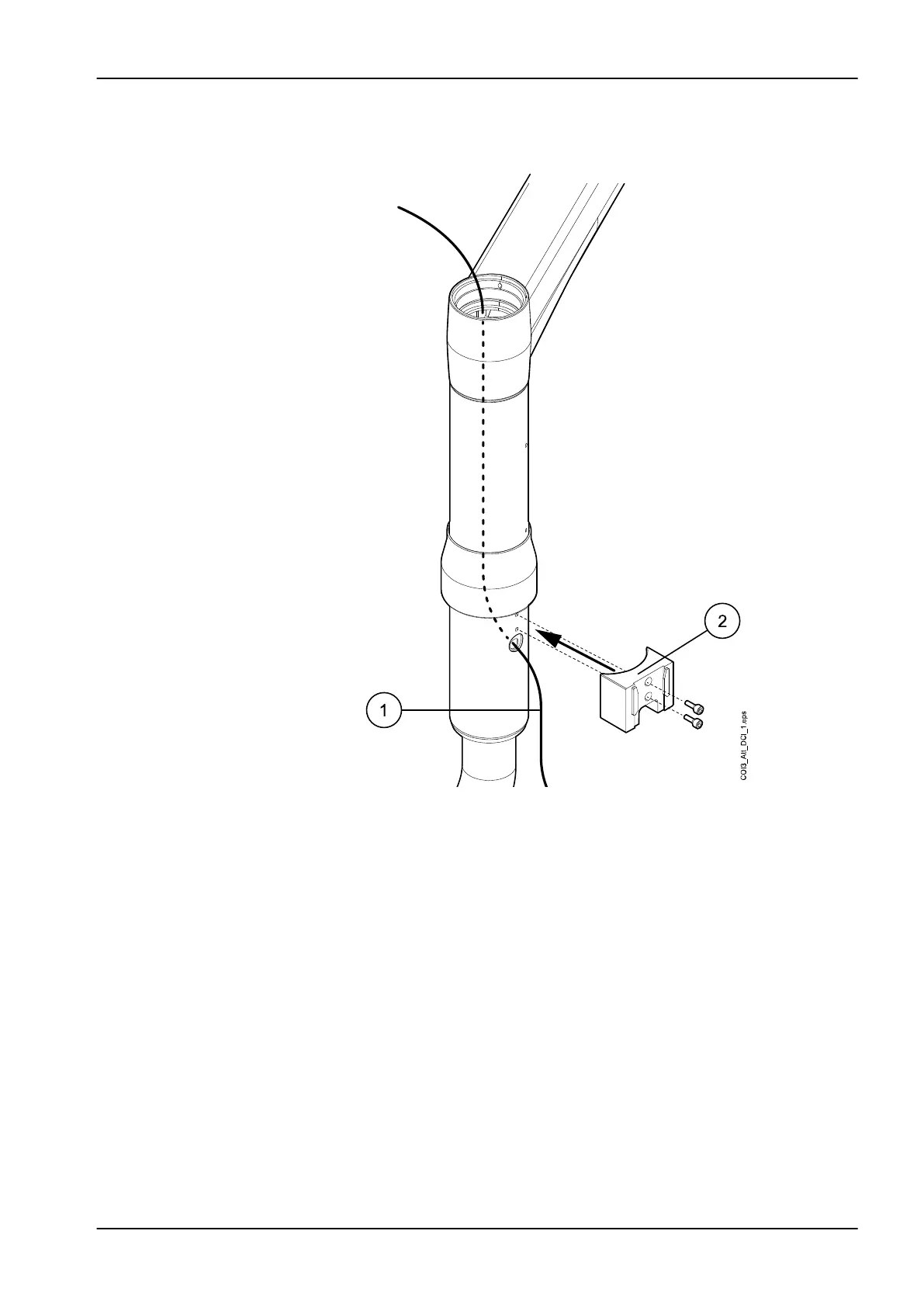

2. Route the cable guide (1) through the delivery arm. Attach the clean-
water bottle mount (2) to the adapter tube with two screws DIN 912
M6x16 using a 5 mm Allen key.
8 Installing Clean water system
Installation manual Planmeca Compact i3 39
