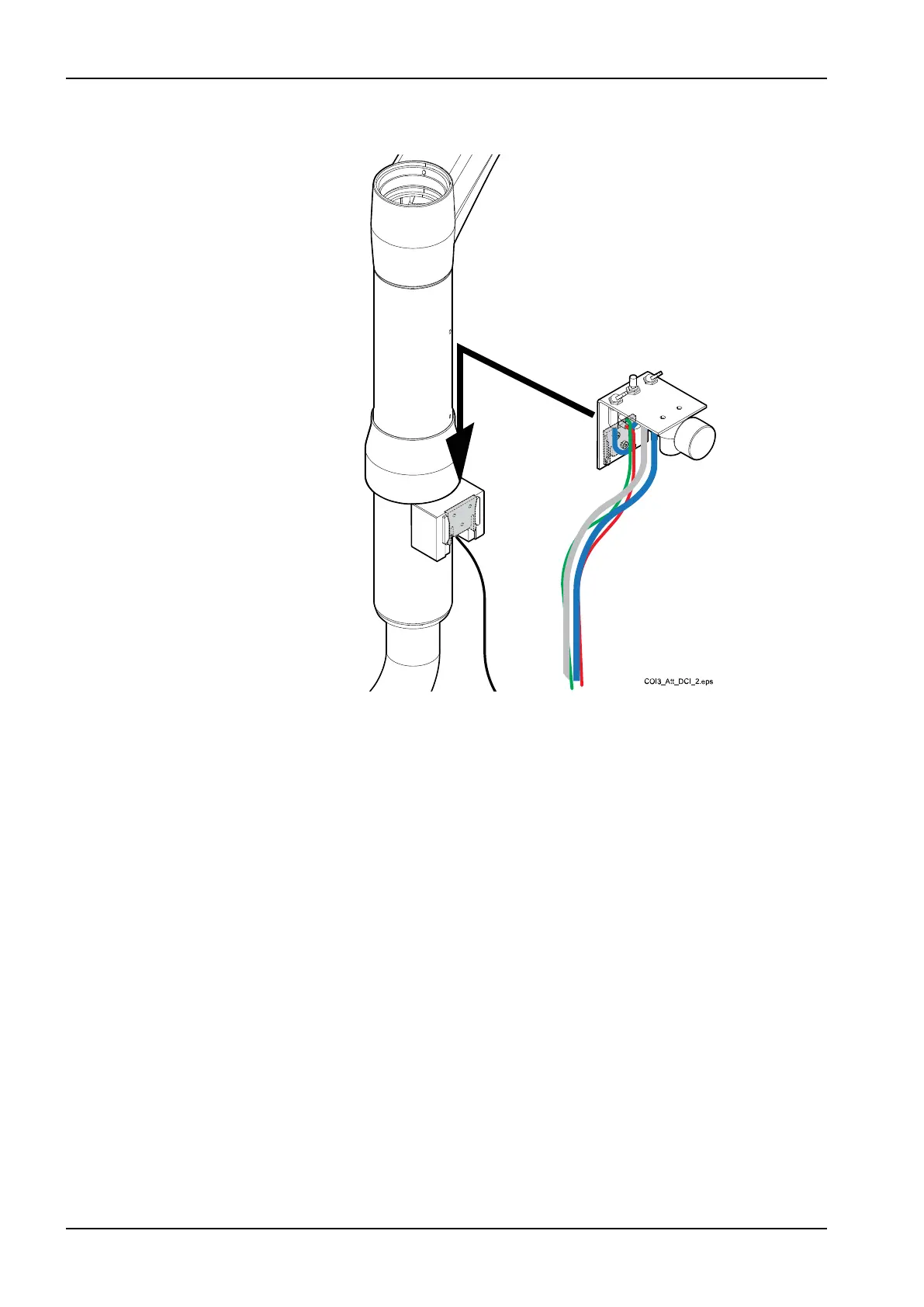

3. Slide the clean-water bottle attachment assembly onto the clean-water

bottle mount.

4. Attach the air and water tubes and cables to the cable guide (1) and pull

them through the delivery arm to the underside of the vertical arm.

8 Installing Clean water system

40 Planmeca Compact i3 Installation manual
