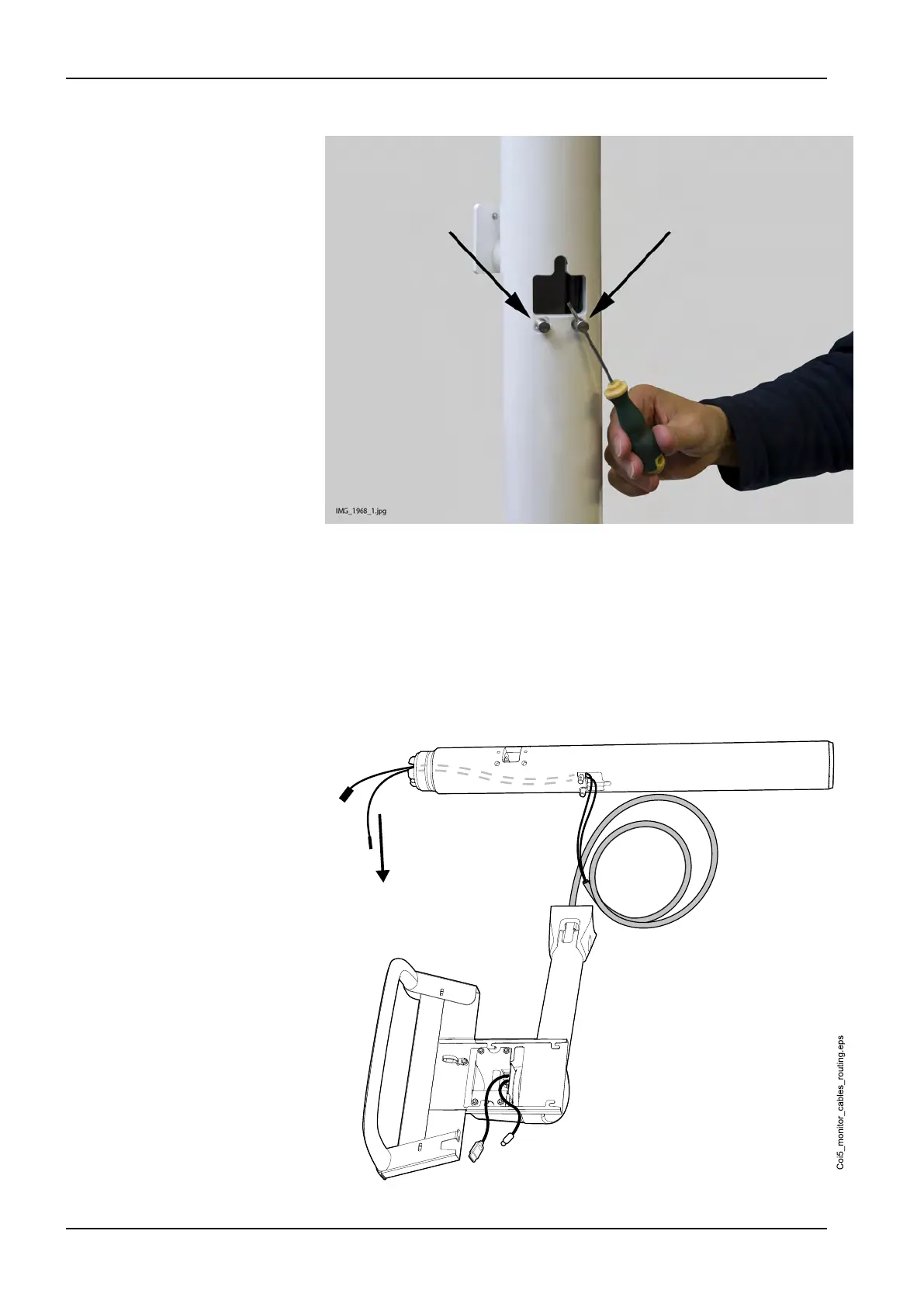

6. Monitor: Mount the guide pins to the vertical arm.
7. Monitor: The monitor cables (monitor HDMI cable and power cable) are
routed through the monitor arm at the factory. Route the monitor cables
through the vertical arm before attaching the arms to the unit. The cables
are attached to the monitor arm with cable tie. Do not detach the cables.
NOTE
The monitor arm is installed in the same way with or without the
operating light. Only the length of the vertical arm varies in different
installation options.
9 Installing vertical arm
46 Planmeca Compact i3 Installation manual
