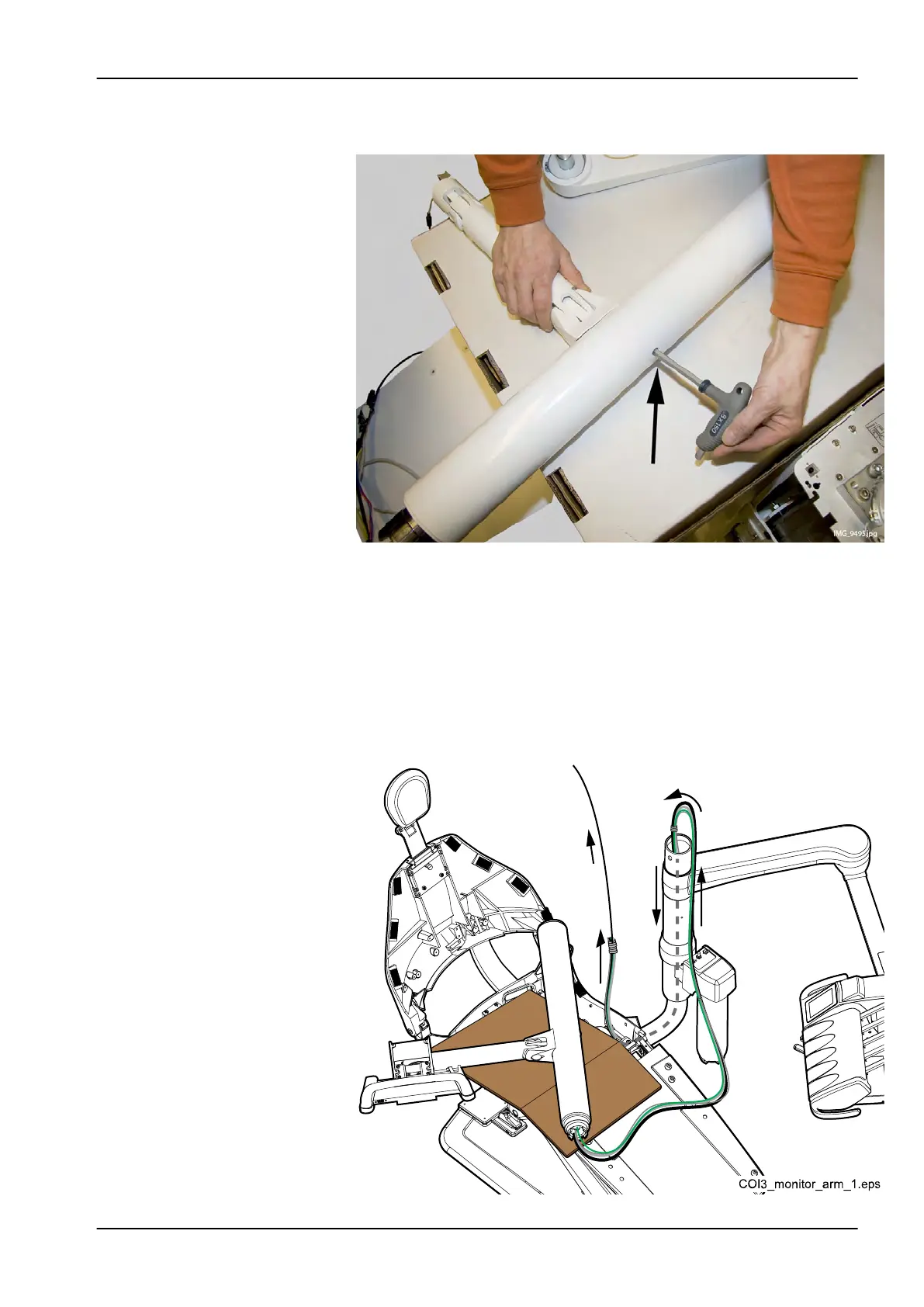

8. Monitor: Attach the monitor arm to the vertical arm with one attachment
screw using an 8 mm Allen key.
9. Monitor: Route a cable guide from the inside of the seat through the
vertical post of the delivery arm. Attach the monitor cables to the cable
guide.
NOTE
The inside of the vertical post is divided into two. Route the cable guide
through the side that is farther away from the horisontal delivery arm.
10. Monitor: Route the cable guide and the cables through the vertical post
of the delivery arm to the seat.
9 Installing vertical arm
Installation manual Planmeca Compact i3 47
