Operating light:
Note that also the rotation limiter pin of the operating
light moves when the vertical arm is rotated. You can change the limiter

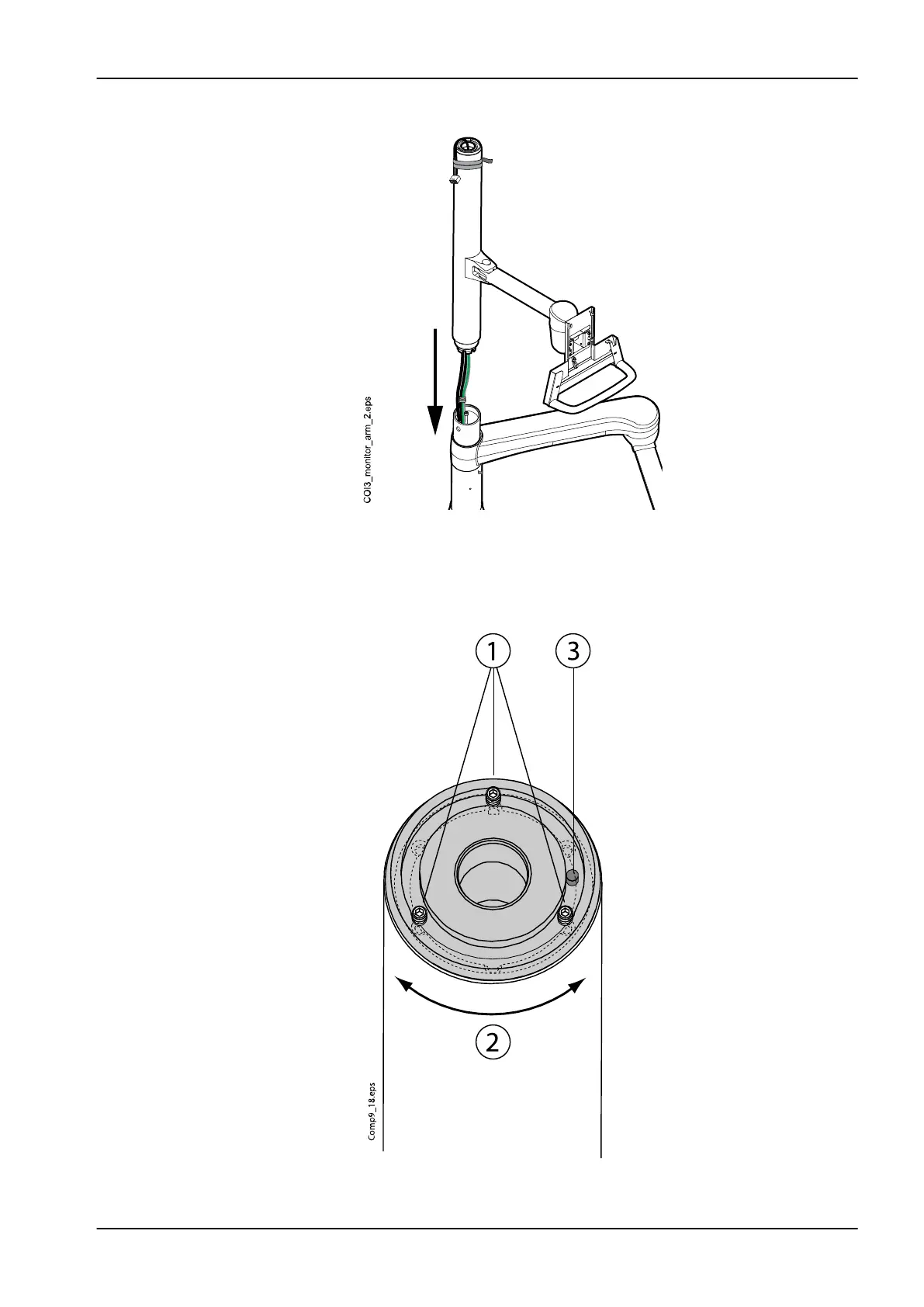

pin position by first loosening the adapter ring attachment screws (1) and
then rotating the ring (2) until the limiter pin (3) is in the correct position.
Finally tighten the attachment screws.
9 Installing vertical arm
Installation manual Planmeca Compact i3 49
