Chapter E - C-ARM AND IMAGING ARM
E-88 ProMax X-ray unit with Dimax3
REMOVING THE COVERS
Technical Manual
3.3 Removing the movable sensor head holder covers
Remove the C-arm upper covers as described in section 3.1 “C-arm upper covers” on page
E-85.
Remove the sensor head from its holder. Push in the button of the C-arm electrical connector.
The sensor head connector front cover is attached to the C-arm with Velcro tapes and can be
removed by pulling it from its position (Fig. 133, 1).

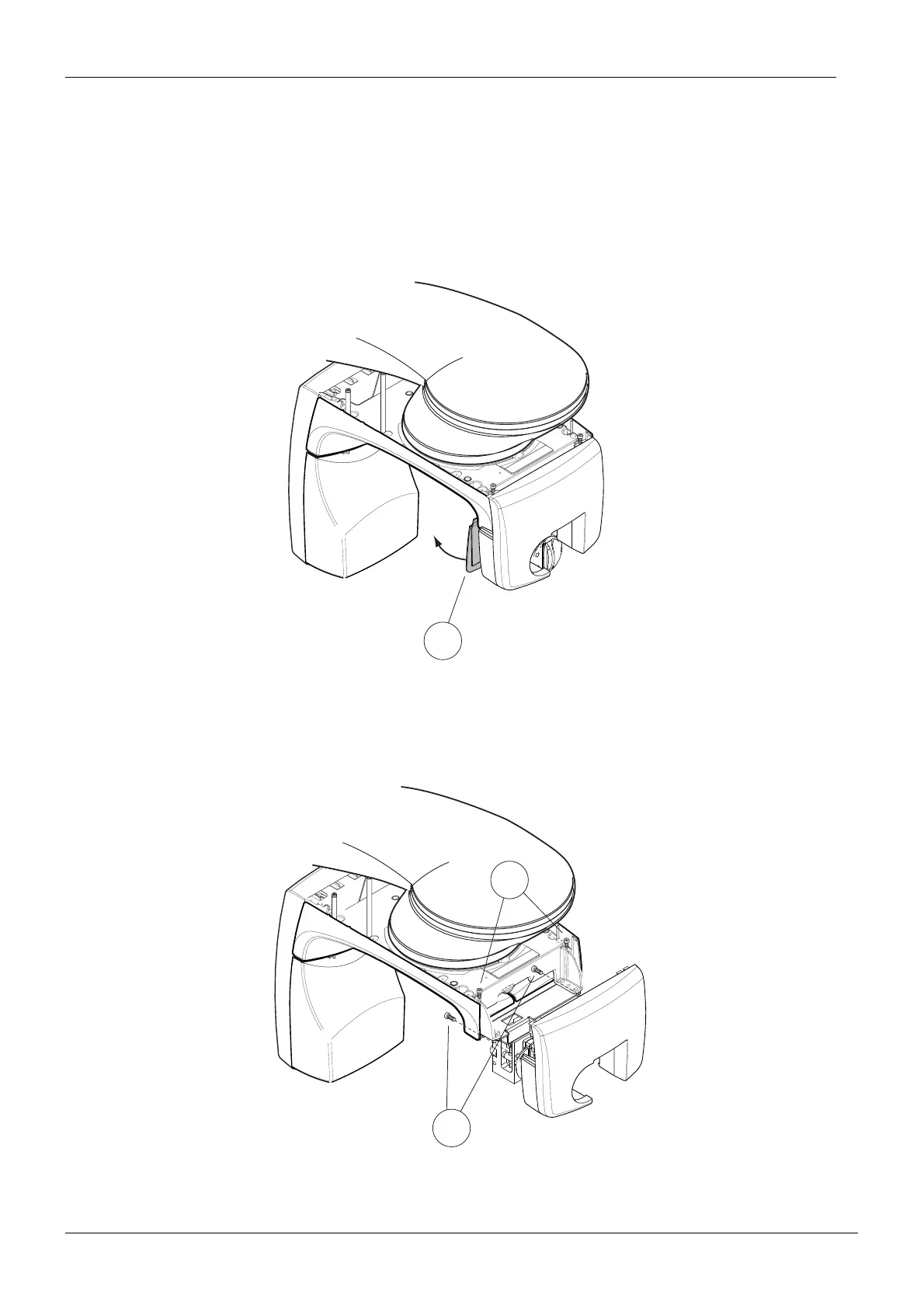

Figure 133
Unscrew the attachment screws of the sensor head connector back cover with the 2.5mm
Allen key: two from the top of the cover (Fig. 134, 1) and two from the inner side (Fig. 134, 2).
Detach the cover from its position.
Figure 134
1
Remove_sensor_head_covers1.eps
Remove_sensor_head_covers2.eps
1
2
