ProMax X-ray unit with Dimax3 B-1
Chapter
Technical Manual
B
INFORMATION DISPLAYS
1 GENERAL ABOUT INFORMATION DISPLAYS
CAUTION Some of the information displays can be used to alter the operation of the unit. Never
use functions that you are not familiar with how they operate.
The unit has a number of additional functions for special requirements. The function modes
that can be entered without a password: User preference settings, Feature program control
and Special functions. The Service settings, Technical calibrations and Troubleshooting
are for the use of service personnel only and are protected with a password. The addi-

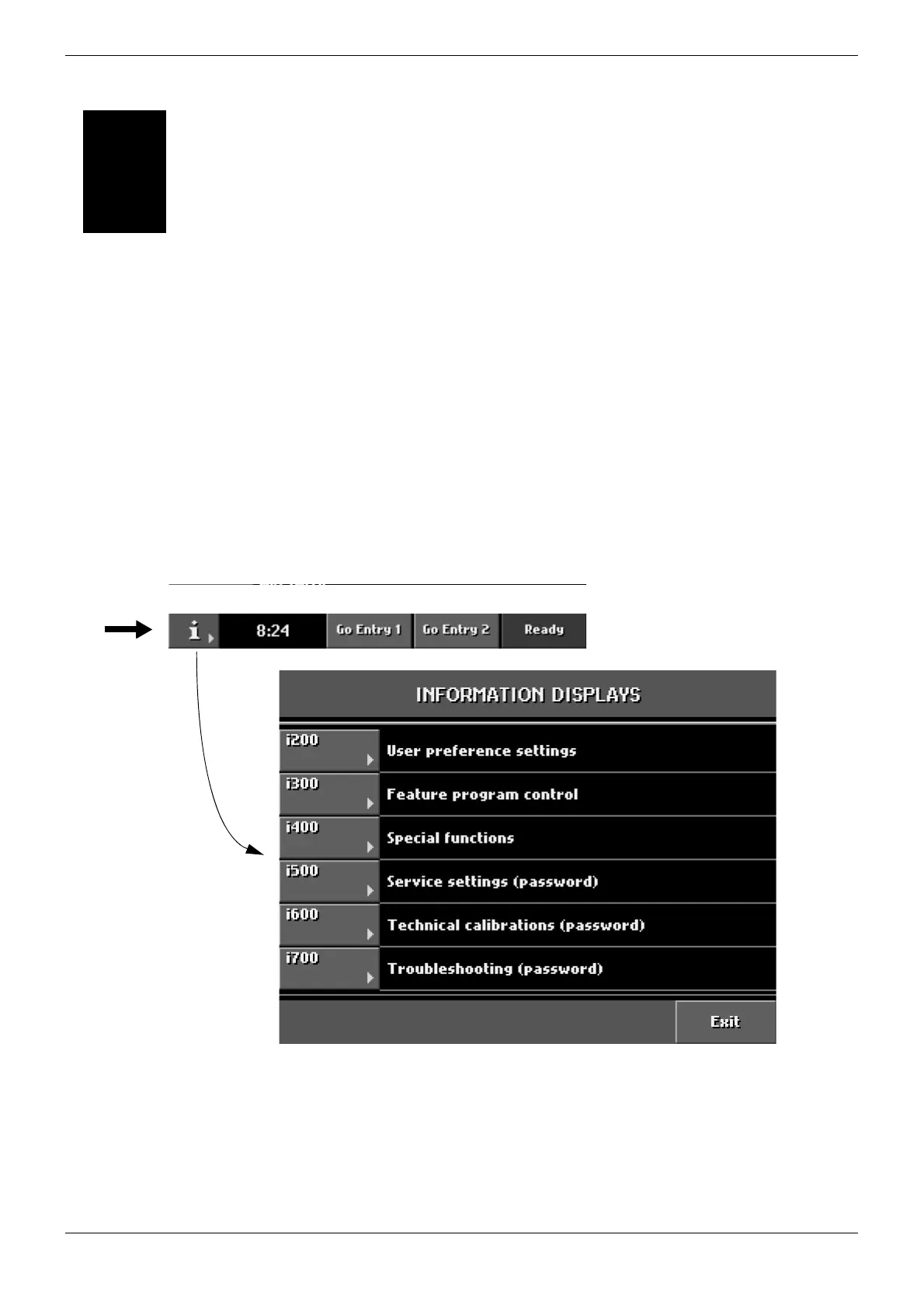

tional functions are entered as follows. Touch the i-field on the
Main
display. The list of
Information displays appears.
Figure 1
You can return to the
Main
display by touching the Exit field. The previous display is returned
by touching the Back field on the lower right corner.
