Chapter B - INFORMATION DISPLAYS
ProMax X-ray unit with Dimax3 B-11
USER PREFERENCE SETTINGS
Technical Manual

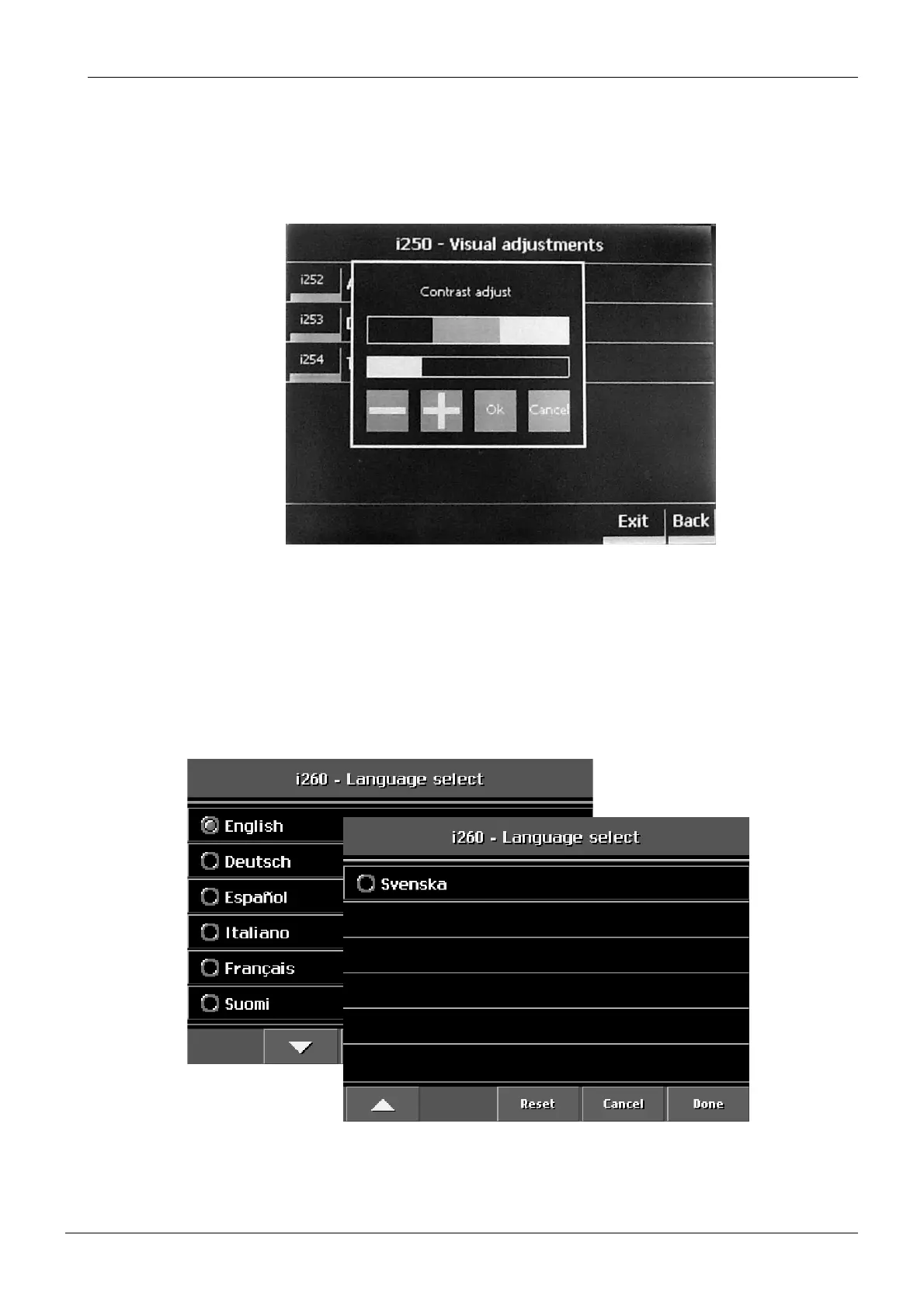

2.4.4 Display contrast adjust (only available in black/white GUI)
To adjust the contrast of the control panel select the
Display contrast adjust (i253)
on the
Visual adjustments
display. The display shown below will appear. Adjust the contrast with the
plus (+) and minus (-) fields and accept the new contrast by touching the OK field, or exit with-
out saving changes by touching the Cancel field.
Figure 14
2.5 Language select
The language of the Graphic user interface (GUI) can be selected on the
Language select
(i260) display.
Figure 15
