Planmeca ProMax X-ray User Manual

Chapter E - C-ARM AND IMAGING ARM
ProMax X-ray unit with Dimax3 E-89
REMOVING THE COVERS
Technical Manual
3.4 C-arm inner cover
NOTE You have to remove the C-arm upper covers and cassette carriage inner cover / sensor
head covers before removing the C-arm inner cover.

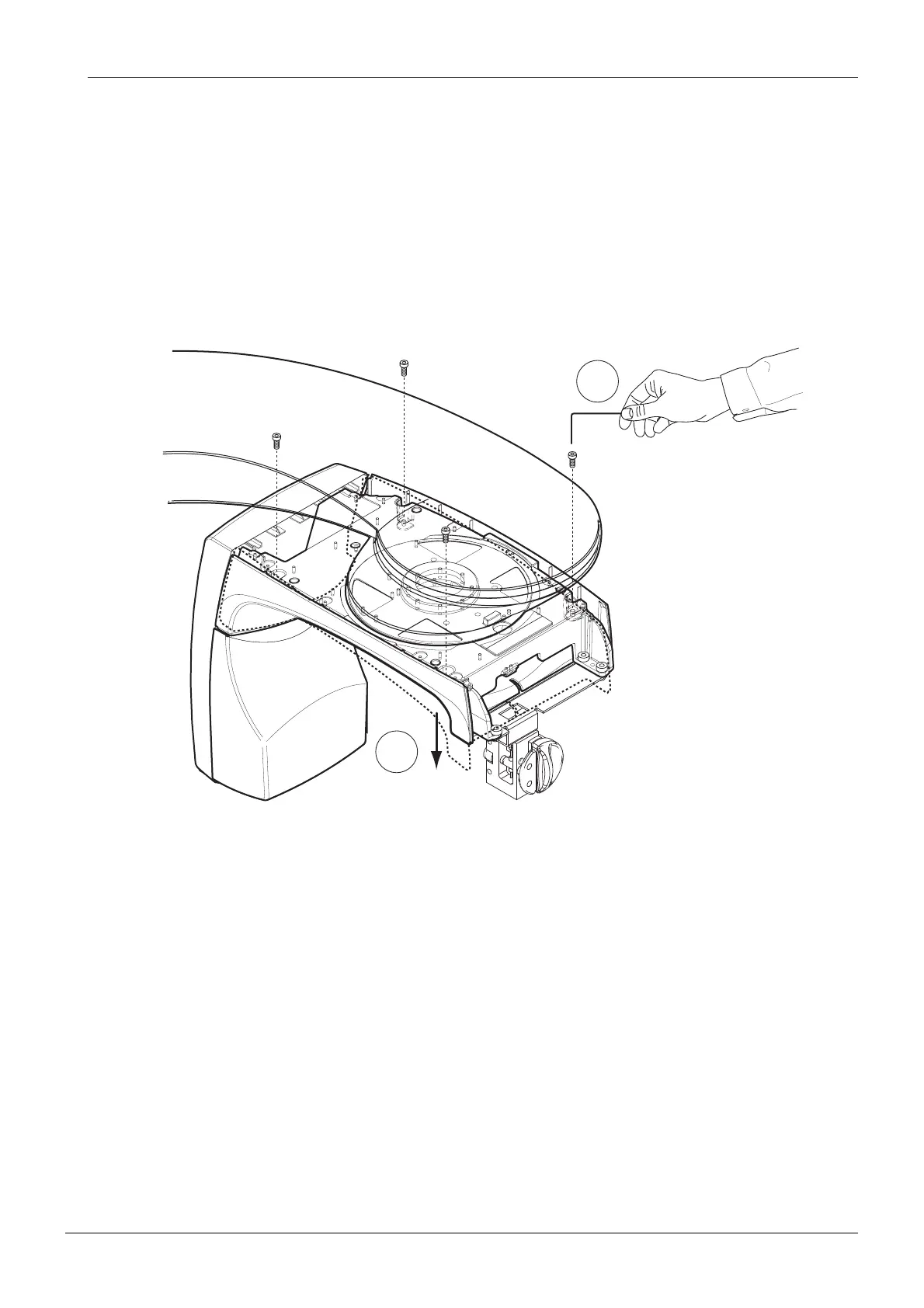

Unscrew the four screws with the 2.5mm Allen key (Fig. 135, 1) and remove the cover (Fig.
135, 2).
Figure 135
Digi_C_arm_covers4.eps
2
1
4x
