Planmeca ProMax X-ray User Manual

Chapter H - CEPHALOSTAT
ProMax X-ray unit with Dimax3 H-33
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.14 Beam Check
This new feature in the digital ProMax units allows the user to check that the X-ray unit is
properly collimated.
NOTE The X-ray beam must be adjusted and the sensor head calibrated before you start the
Beam Check.
NOTE The Beam Check test is only available in the ProMax software version 1.16 or later and
Dimaxis program version 3.2.1 or later.
To run the Beam Check test for a cephalostatic X-ray beam, proceed as follows:

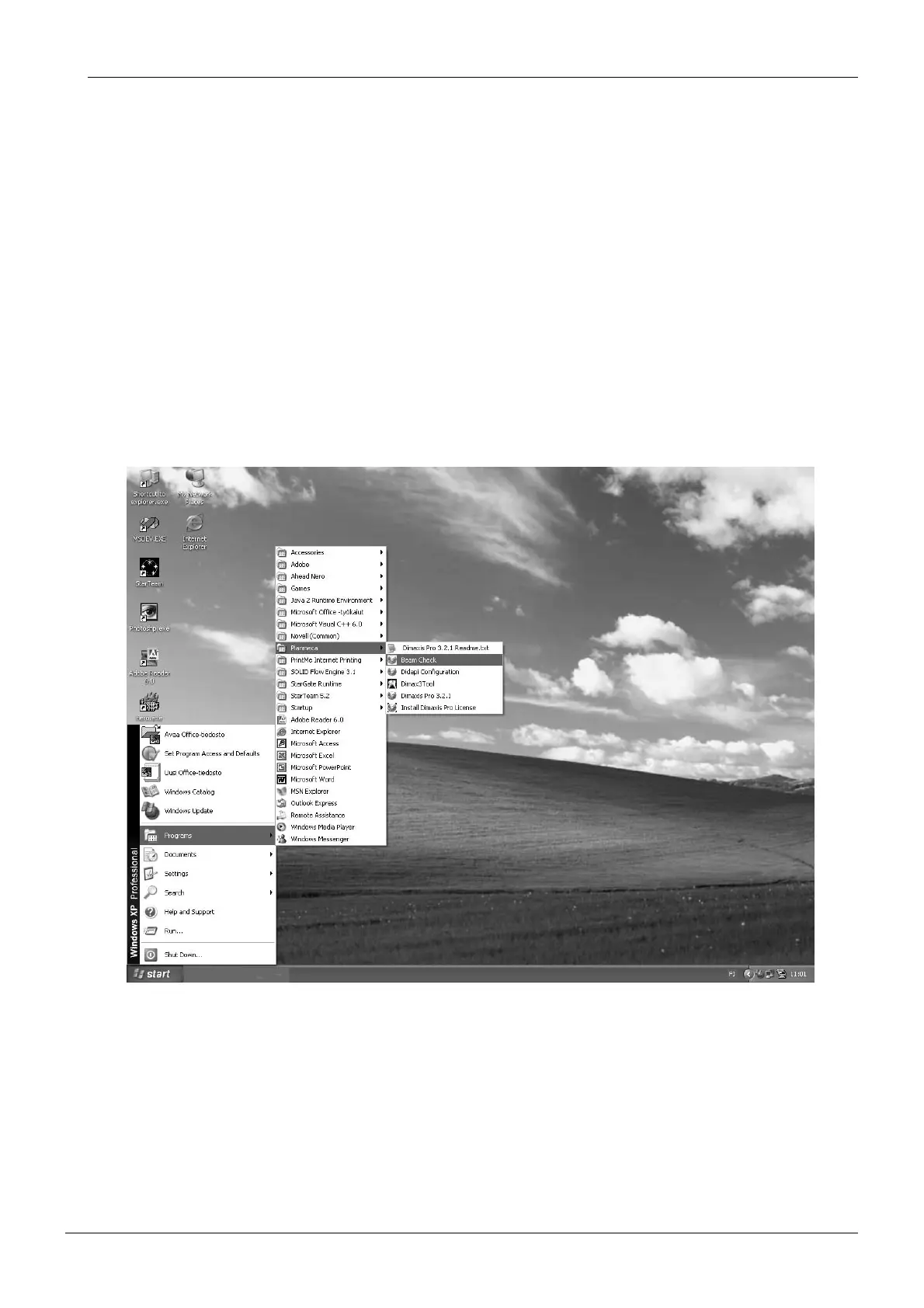

Start the Beam Check program by clicking
Start > Programs > Planmeca. Select Beam Check
from the appearing list.
Figure 58
