Chapter H - CEPHALOSTAT
H-32 ProMax X-ray unit with DImax3
ADJUSTMENTS AND CALIBRATIONS
Technical manual

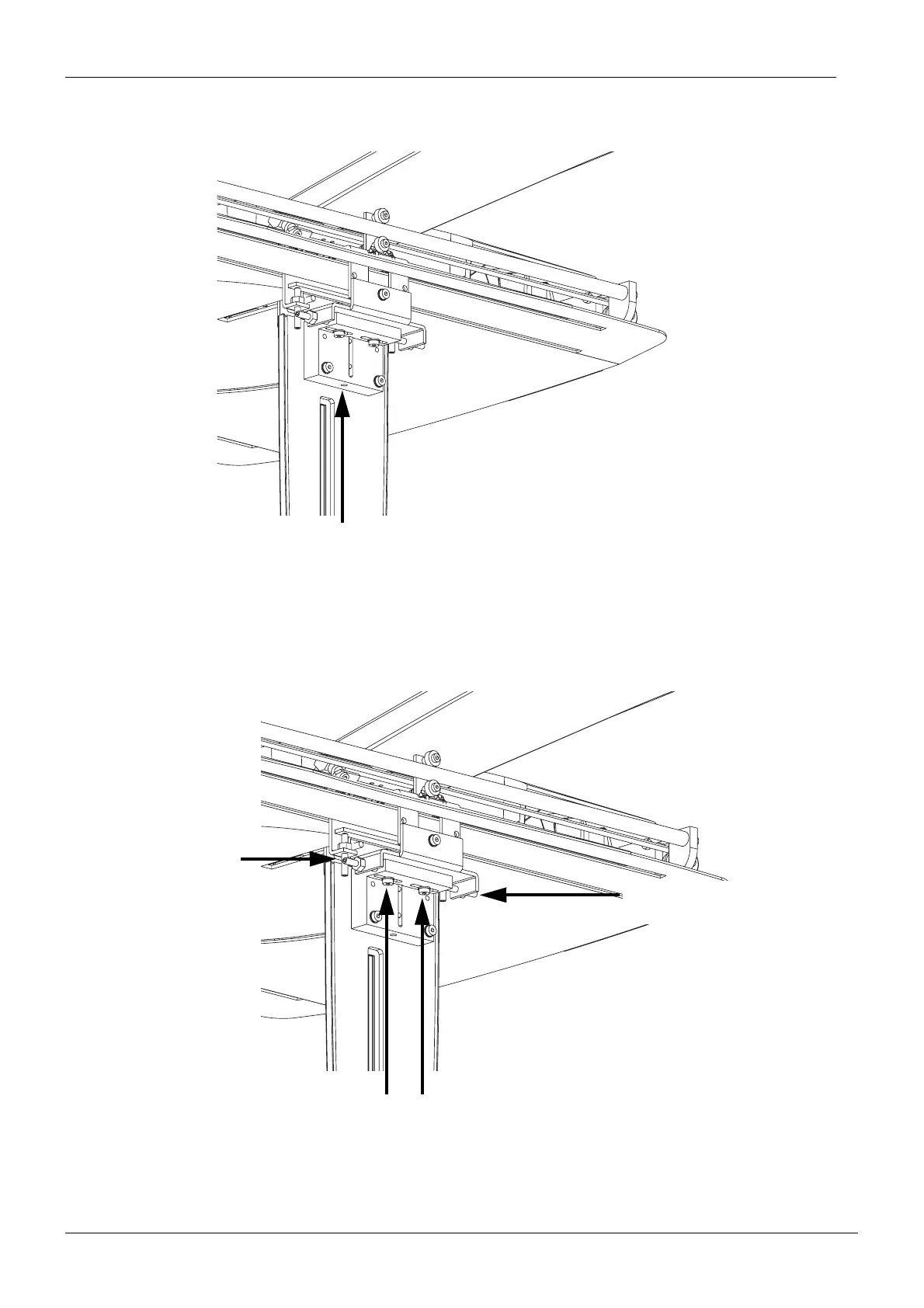

Adjust the vertical position of the collimator by rotating the adjustment screw located on the
bottom of the collimator frame.
Figure 56
Adjusting the horizontal position of the second primary collimator
Loosen the two horizontal adjustment locking screws with 3mm Allen key and adjust the hori-
zontal position of the collimator by rotating the adjustment screws located on the both sides
of the collimator frame.
Figure 57
Attach the second primary collimator cover according to the instruction given in section 2.1
“Attaching the second primary collimator covers” on page H-54.
PXR_Adj_digiceph11.eps
Collimator vertical position adjustment screw
PXR_Adj_digiceph11.eps
Collimator horizontal position locking screws
Collimator horizontal
position adjustment screw
Collimator horizontal
position adjustment screw
