Planmeca ProMax X-ray User Manual

Chapter H - CEPHALOSTAT
H-54 ProMax X-ray unit with DImax3
REMOVING AND ATTACHING THE SECOND PRIMARY
Technical manual
2.1 Attaching the second primary collimator covers
Slide the collimator cover box to its position and attach it with the two attachment screws by
using the 4mm Allen key (Fig. 96, 1).
Slide the collimator cover to its position and attach it with the attachment screw by using the
2mm Allen key (Fig. 96, 2).

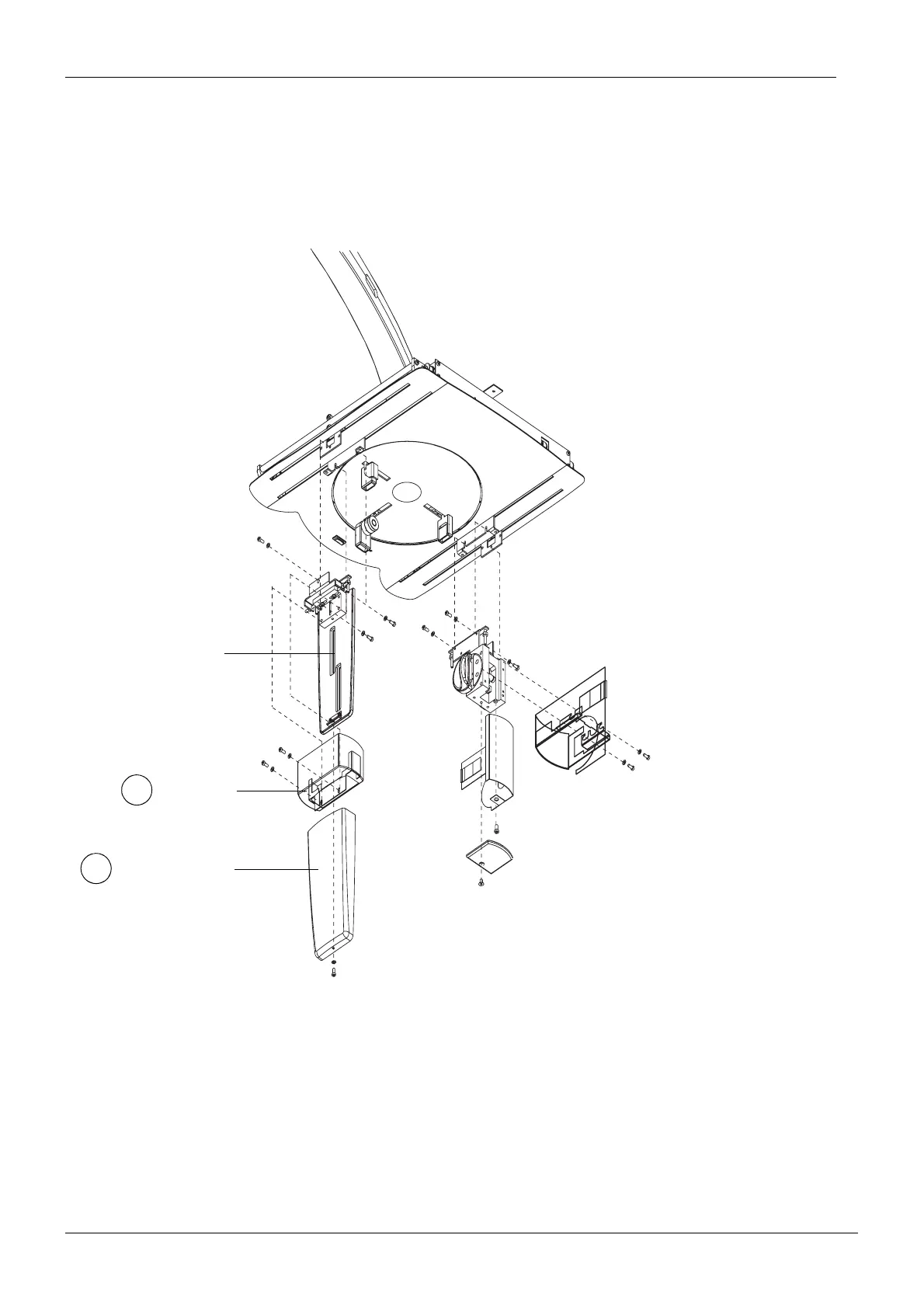

Figure 96
PXR_Adj_digiceph21.eps
2
1
Collimator plate
Cover box
Collimator cover
