Chapter H - CEPHALOSTAT
H-18 ProMax X-ray unit with DImax3
ADJUSTMENTS AND CALIBRATIONS
Technical manual
1.9 Calibrating the C-arm position
Select kilovolt and milliampere values high enough to enable the radiation beam to be seen in
a darkened room. The actual values will depend on how dark the room is.

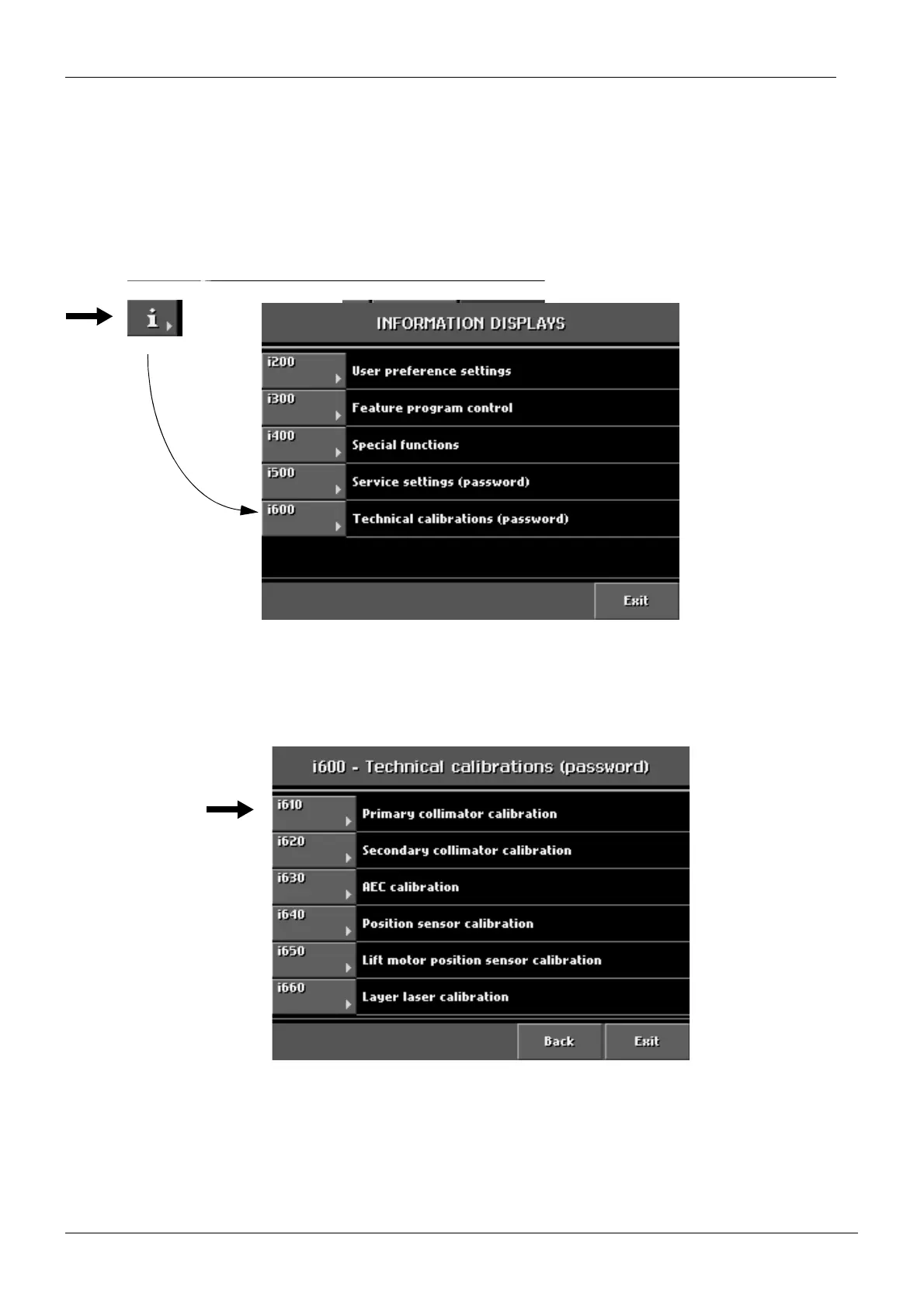

To enter the calibration mode first touch the i-field on the
Main
display. Select Technical cali-
brations (i600) from the list on the display. The password to the Technical calibrations mode
is asked when the Technical calibrations mode is entered for the first time after switching the
unit on. The password is 1701.
Figure 30
From the list on the
i600
display that appears select
Primary collimator calibration (i610).
Figure 31
