Chapter H - CEPHALOSTAT
ProMax X-ray unit with Dimax3 H-17
ADJUSTMENTS AND CALIBRATIONS
Technical manual
Adjusting the sensor head in vertical direction
Make sure that the locking screw of the adjustment flange (Fig. 29, 1) is loosened. If the sen-
sor head does not run parallel with the primary collimator, adjust the sensor head in vertical
direction (Fig. 29, 4) with the two screws on the adjustment flange (Fig. 29, 2 and 3).

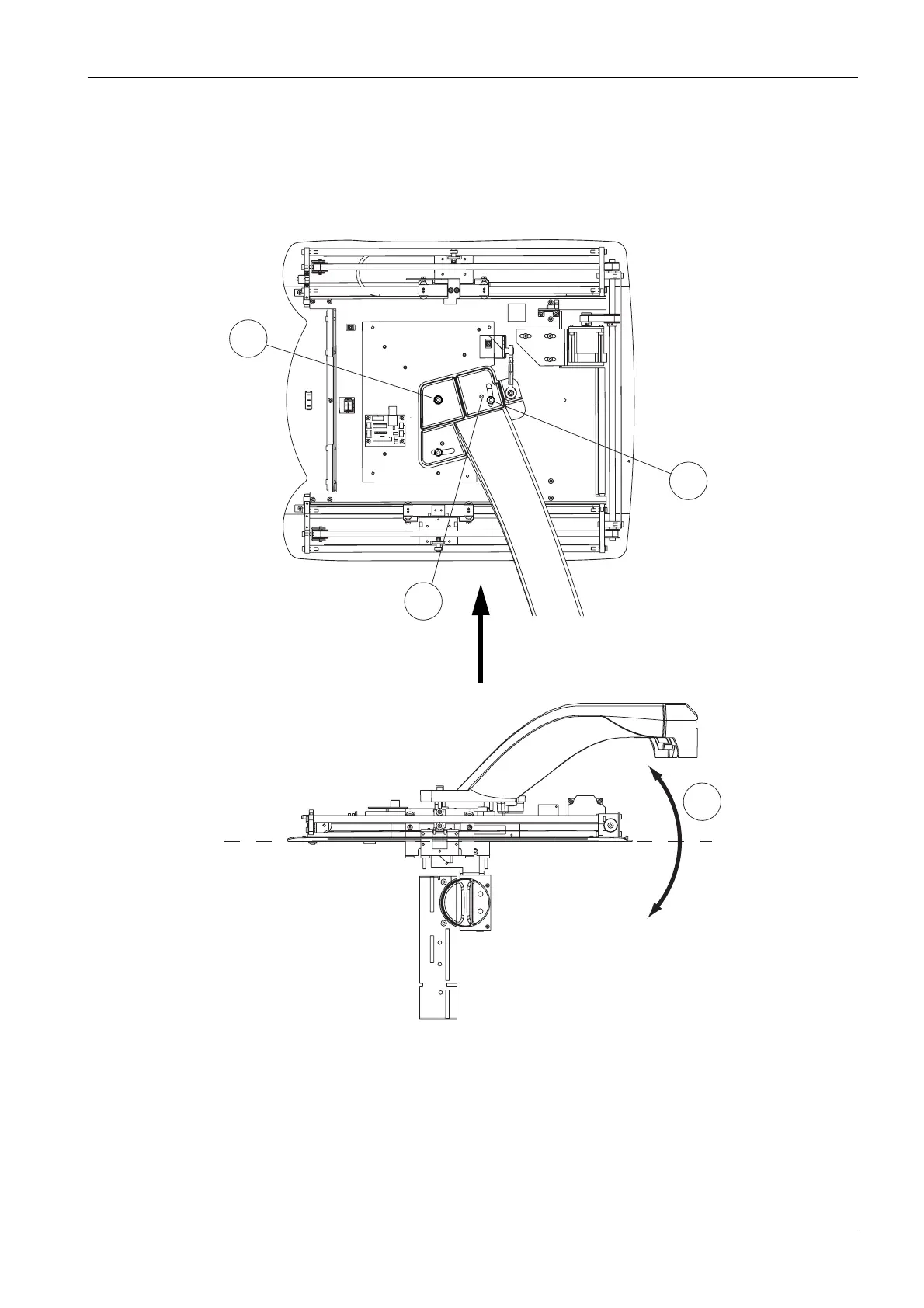

Figure 29 Adjusting the sensor head in vertical direction.
PXR_Adj_digiceph28.eps
1
3
2
4
Radiation beam
