Chapter E - C-ARM AND IMAGING ARM
E-78 ProMax X-ray unit with Dimax3
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
2.4 Calibrating the panoramic dynamic exposure control (DEC)
NOTE The panoramic dynamic exposure control (DEC) function requires software version
1.19.0 or later and a valid DEC licence.
NOTE Make sure that the panoramic beam is correctly aligned before calibrating the pano-
ramic DEC. Refer to section 1.2 “Checking the panoramic beam position” on page E-4.
NOTE Before starting the DEC calibration the Panoramic DEC feature has to be enabled from
the i310 menu. Refer to Chapter B, section 3.1 “Enable / disable features” on page B-
13.
Remove the tube head covers as described in section 3.5 “Tube head covers” on page E-90.
Loosen the tube head screws (arrows on the figure below) and place the AEC/DEC calibra-
tion tool to the front of the primary collimator as shown on the Fig. 120 below. Tighten the
tube head screws. Make sure that the AEC/DEC calibration tool covers the primary colli-
mator opening.

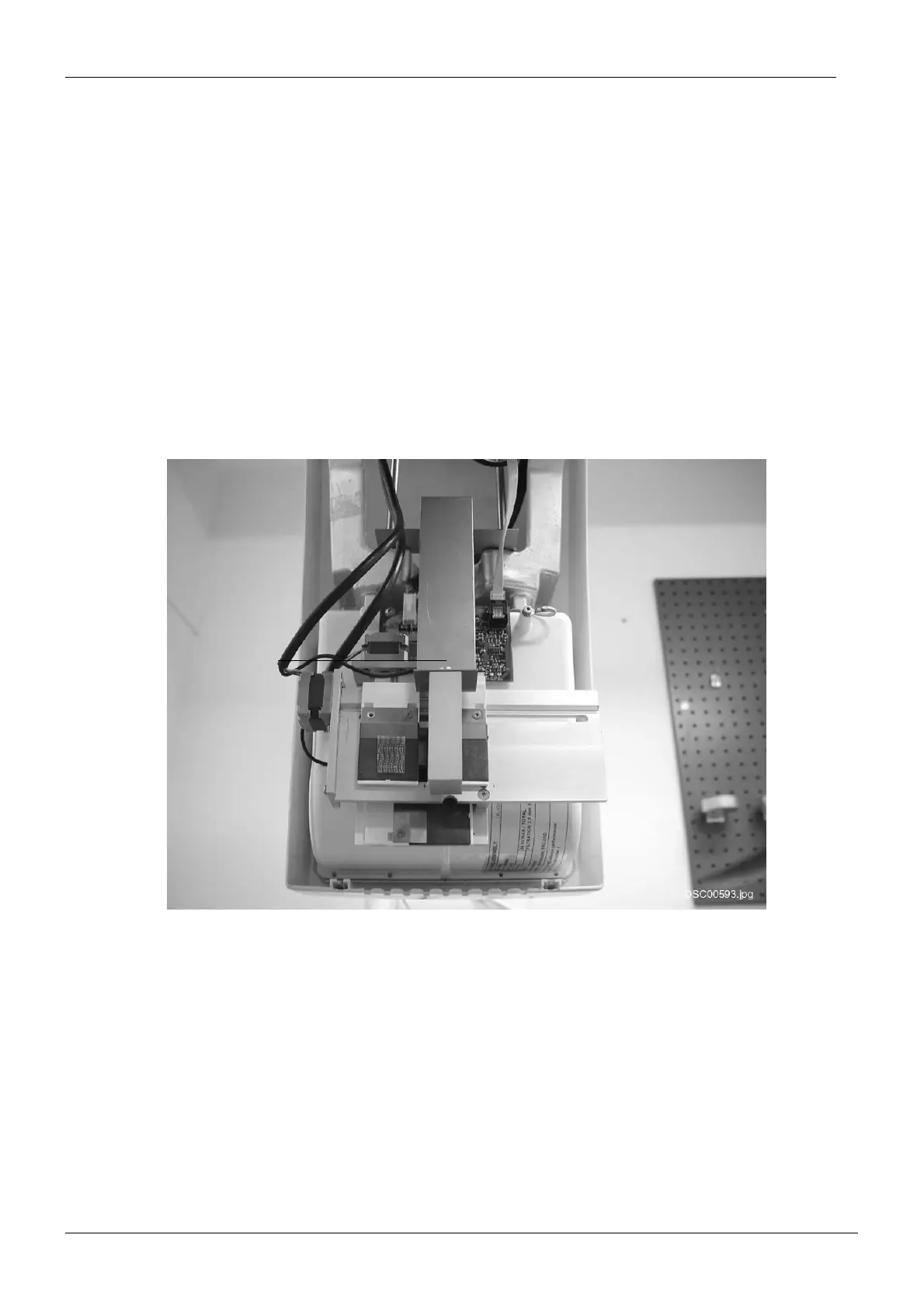

Figure 120
AEC/DEC calibration tool
