Chapter E - C-ARM AND IMAGING ARM
ProMax X-ray unit with Dimax3 E-7
PANORAMIC BEAM AND PATIENT POSITIONING MECHA-
Technical Manual
1.3 Adjusting the sensor head angle
NOTE The sensor head (i.e. the sensor head alignment tool) must be perpendicular to the
rotating unit, otherwise the angle of the quick connector mechanism must be adjusted.

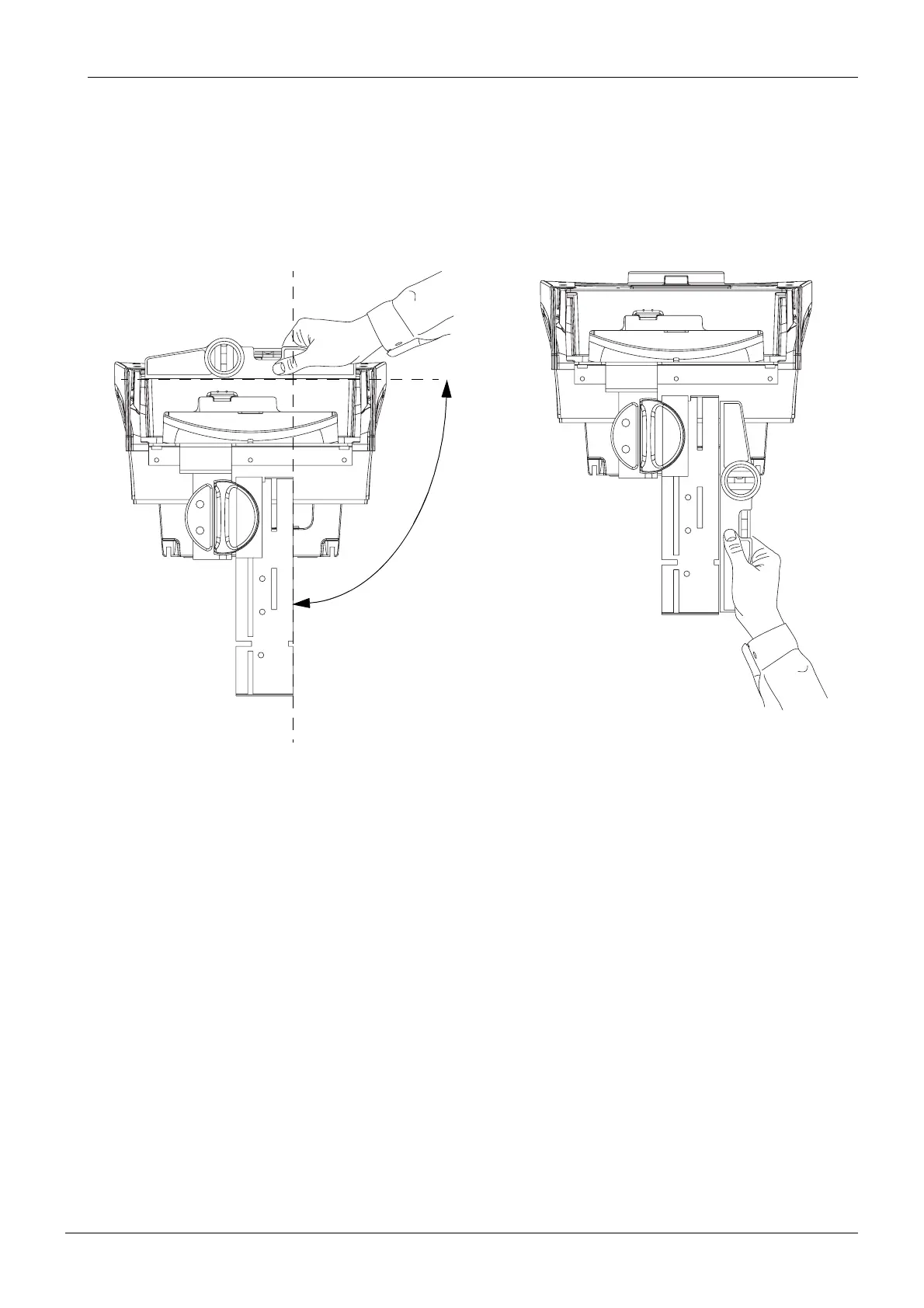

Check the position of the sensor head by using the spirit level as shown on the Fig. 13 below.
Figure 13
In case the sensor head is attached to the rotating unit, remove the sensor head from the
quick connector mechanism (refer to section 4.2 “Sensor head with quick connector mecha-
nism” on page E-98), or remove the fixed sensor head from its connector (refer to section 4.1
“Attaching and removing the fixed sensor head” on page E-94).
Remove the connector covers. Refer to section 4.1 “Attaching and removing the fixed sensor
head” on page E-94 or to section 4.2 “Sensor head with quick connector mechanism” on page
E-98.
Attach the sensor head alignment tool to the connector.
PXR_Adj_pan1.eps
PXR_Adj_pan2.eps
90°
